ZU Series Inline Vacuum Ejector

ZU Series Inline Rectus Vacuum Ejector | SOLH Recta Tube Insert Type Vacuum Generator

Brand: SOLH by Richge Technology | Inline Vacuum Ejector

1. Product Overview

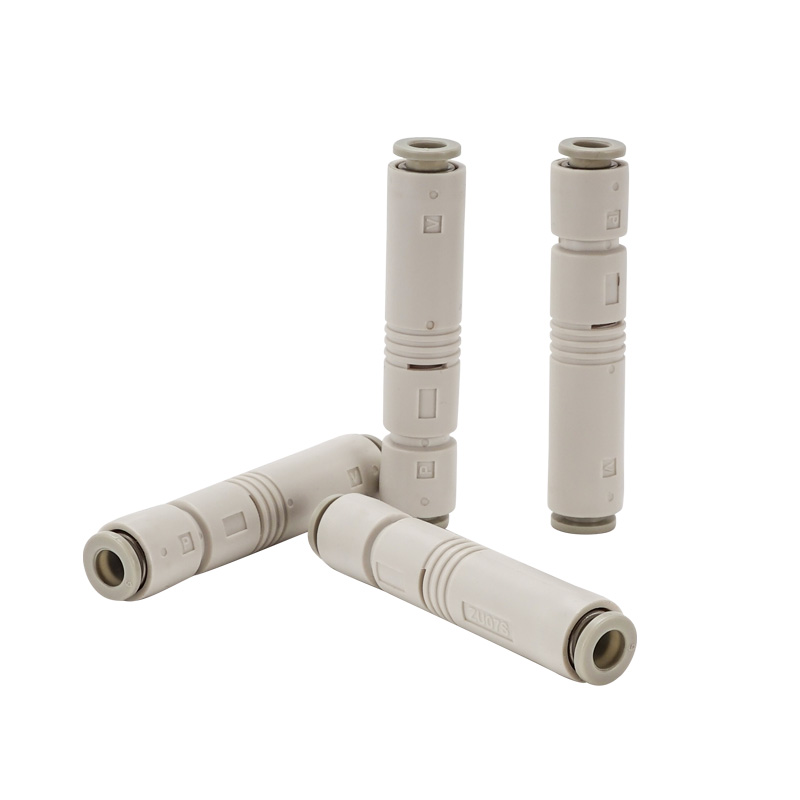

     Series ZU est inline recta tubo vacuo eiector. Portus vacuo et aeris copia coaxially in recta linea disponuntur. Minutam magnitudinem notat, ultra leve pondus et institutionem spatii salutaris. Apta cyathis suctu distributis, mo- tium et angustis angustiis.

2. Core Structure & Opus Principium

     • Structure: SUP copiam portus → COLLUM → sectionem diffundens → VAC vacuum portum → EXH portum exhaurit , corpus resinae integraliter effingens .

     • Principium: summa celeritate vi aeris compressi per COLLUM pressionem negativam creat ad portum vacuum pro adsorptione vacuum; exhauriunt cum aedificatur in silentio structuram.

     • Materia: agmen: ipsum PBT resina; unum tactum decet: POM. Aeris gratis & fluorinis gratis, RoHS obsequens.

     • Pondus: ZU05 ≈6.5g , ZU07≈7.0g ; Nova ZU□A versio tantum emendavit 3.9g.

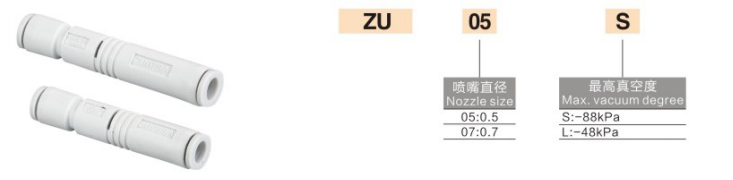

3. Model Coding Rule (SMC Standard)

  Vetus Versio (ZU05/ZU07)

  Format: ZU + COLLUM genuit + genus(S/L)

     • ZU05S: COLLUM Φ0.5, genus vacuum altum (-84kPa)

     • ZU05L: Φ0.5 COLLUM, genus fluxus altus (-48kPa)

     • ZU07S: Φ0.7 COLLUM, genus vacuum altum

     • ZU07L: Φ0.7 COLLUM, genus fluens altum

  Nova Vulgata emendata (ZU□A, brevior & levior)

  Format: ZU + 03/04/05/07 + S/L + A

     • 03=Φ0.3, 04=Φ0.4, 05=Φ0.5, 07=Φ0.7

     • S = Maximum vacuum (-87~-90kPa); L = High flow (-48kPa)

     • A = upgraded versio: longitudo adbreviata 11%, pondus minutum 40%

4. Key Parameter Table @0.45MPa Standard Supple Pressura

5. S High Vacuum VS L High flow

     • S High Vacuum Type: ultimum vacuum -84~-90kPa. Pro poculis suctionis parvae, tenues, bene signatae officinae, quaerunt vim validam adsorptionis, qualia sunt membra electronic et membrana tenuis.

     • L High flow Type: ultimum vacuum -48kPa cum suctionis majore fluxu. Apta superficiei asperi workpieces, magnae suctionis calices, altae lacus et responsionis celeritatis postulatio, e.g. lobortis ac lignum tabula.

6. Installation & Piping Guide

  1 . Institutionem: Mountable in any orientation, no fixing bracket required; directe inseri potest in medio aeris pipeline.

  2. Limbis

￮ SUP copiam port: Φ6 tubi aeris connectere (vexillum)

￮ VAC vacuum portum: connect suctionis poculum / vacuum pipeline

￮ EXH exhauriunt portum: aperta ad atmosphaeram, non angustos

  3. Pressura: Standard 0.45MPa, opus range 0.1~0.6MPa

  4. Temperature: 5~ 50℃ (non vico in aere fonte)

7. Typical Application missiones

     • 3C electronics, semiconductor, adsorptio cum cyathis parvis suctionis distributa

     • Automatio linea productio partes movens / finis robot effector

     • Angusta installation spatii, leve & summus celeritatis responsio applicationes

     • Palpantem chartam tenuem, pelliculam tenuem, partes minutas et astulas electronicas

8. Electio Comparison: ZU vs ZB vs ZL
