SOLH ZL112 series multi scaena venturi vacuum eiector integrata cum SMC exemplaribus aequivalentibus plene convertitur. Is features gradum ultra-altum vacuum, magna suctu fluunt et drastice consummatio aeris minuitur. Multiplices ad libitum moduli integrati praesto sunt cum copia solenoidei/valves solvendi, pressurae vacui coniecturam, metrum digitalem ostentationem et pressionis vacuum transitum. Core vacuum est unitas pro armis roboticis automated et systemata multi-suctioni poculi fixturae.

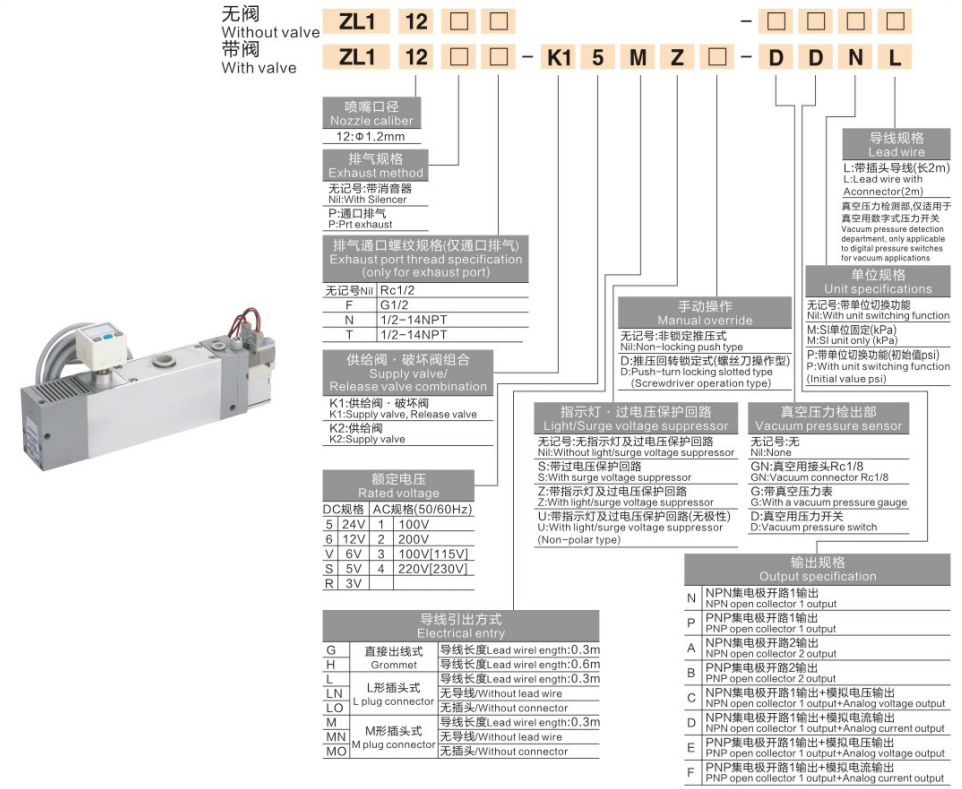

1. Exemplar exemplum cum valvae plenae multitudini: ZL112-□-□-K15MZ-□-DDNL
|
Position |
Code |
Definitio & Detailed Explicatio |
| 1-4 |
ZL112 |
Series codice: eiector vacuum multi scaena, vexillum COLLUM portavit Φ1.2mm |
| 5th |
Blank / P |
Exhauriunt structureBlank: exhauriunt cum integrata silencer (vexillum vocis reductionem) P: nare exhauriunt ad altum fluxus & centralized exhauriunt pipeline |
| 6th |
Blank / F / N / T |
Exhaustum portum threadBlank: Rc1/2 internum threadF=G1/2, N=1/2-14NPT et alia fila bene |
| 7-8 |
K1 / K2 |
Valvae solenoidei combinationK1: valvulae duales (valvae valvae + vacuum emissio ictu-off valvae, auto- suctus & ictu-off) K2: Valvae unica copia tantum, sumptus salutaris, ambitus icti externi requiruntur. |
| 9th |
5 / 6 / V / S / R |
Solenoid aestimavit voltage5=DC24V (default), 6=DC12V, V=AC100V, S=AC200V, R=AC220V |
| 10th |
M / L / G |
Wire exitus formM=M figuratum obturaculum iungo, L=L obturaculum iungo, G=dirrige wireM/L consilium velox obturaculum pro substitutione celeriter wiring |
| 11th |
Z |
DUXERIT indicator + overvoltage custodiae circuitus, ne solenoid coil burnout |
| 12th |
Blank / D |
Manual primi ante buttonBlank: Non latching dis buttonD: ventilabis & convertam densis genus (screwdriver adjustable) |
| 13th |
Blank / GN / G / D |
Vacuum pressionis vigilantia moduliBlank: Vacuum detectionis accessorium GN: vacuum portum adaptatorem Rc1/2, G: vacuum electronicum analog gauge, D: electronic vacuum pressionis switch |
| 14th |
N / P / A / B / C / D / E / F |
Transistor output signum specificationN=NPN publicanus apertus 1 canalis; P=PNP collector apertum 1 channelA=2-canalis NPN; B=2-fluvium PNPC=1ch NPN + Analoga intentionis output; D=1ch NPN + analog vena outputE=1ch PNP + analog voltage output; F=1ch PNP + Analog current output |
| 15-16 |
NL / ML / PL |
Output filum phaleras configurationN=vexillum, M = unitas fixa, P = switch punctum adjustable, L=2m cable inclusa obturaculum |

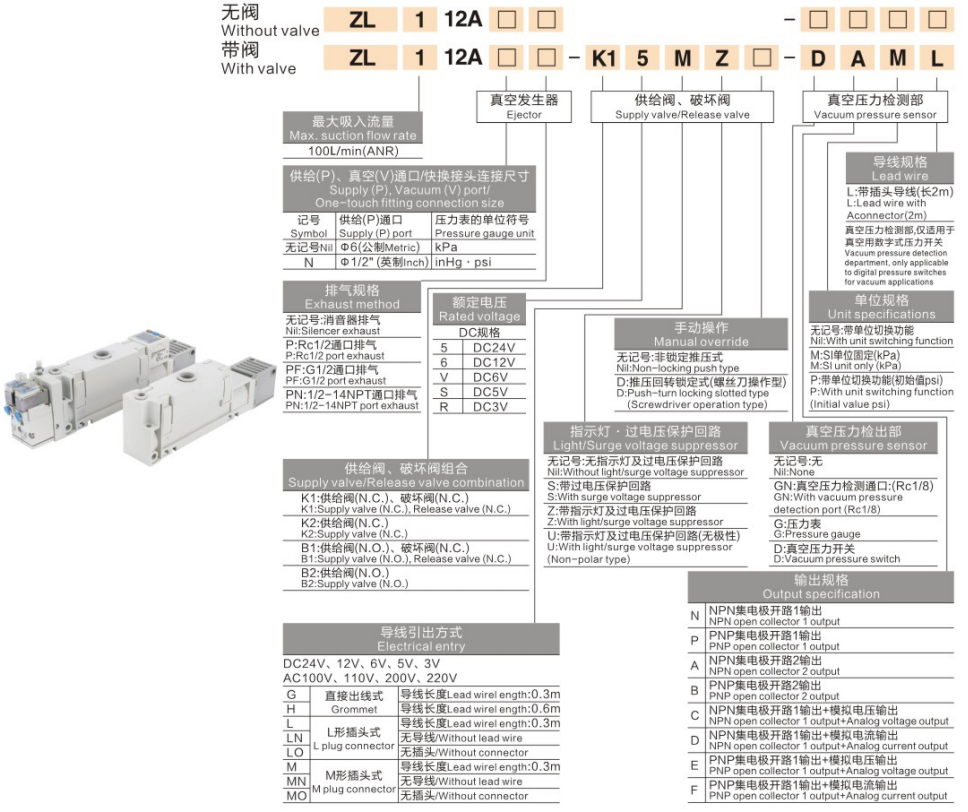

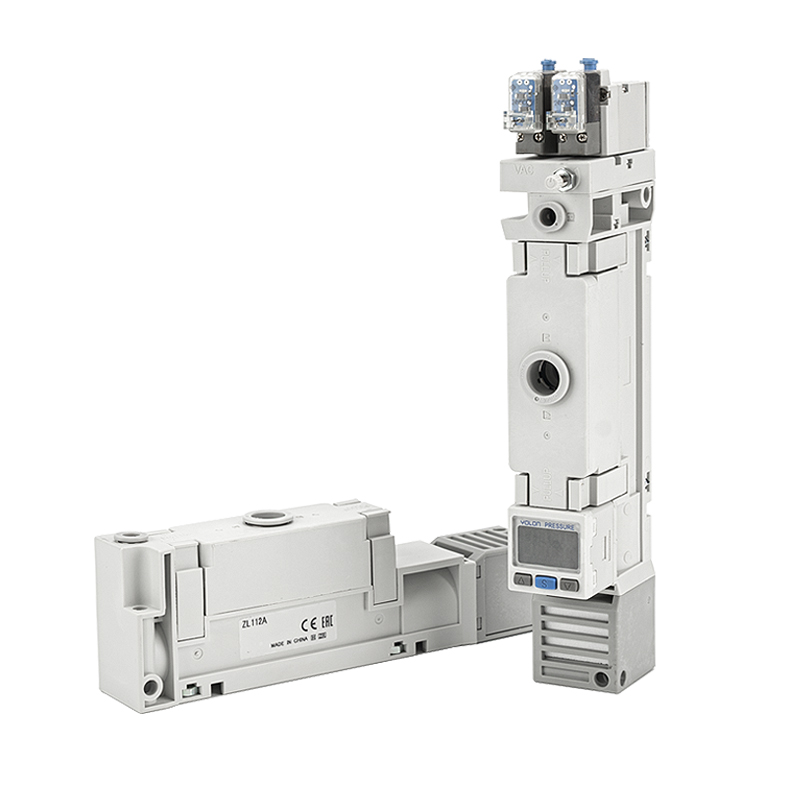

1. New Integrated ZL112A Series (Upgraded Multi- Function Version)
|
Exemplar Code |
Plena configurationis Description |
Scopum Application missiones |
| ZL112A |
Basic nudum unitatis sine valvae & METIOR |
Communis ambitus vacuum simplex cum valva solenoide externa |
| ZL112AP |
Basic unitas + Rc1/2 centralized exhauriunt portum |
Altus fluxus exhaurit, nulla deminutio strepitus postulatur |
| ZL112A-DNL |
Inaedificata in vacuum pressura switch, alveum I-NPN signum output |
PLC vacuum limina feedback cum NPN signo |
| ZL112A-DPL |
Inaedificata in vacuo pressura switch, canali PNP signo 1-output |
PLC vacuum limina feedback cum PNP signo |
| ZL112A-DAL |
Consectetur 1ch NPN vacuum switch |
Princeps stabilitas continuum signum vigilantia |
| ZL112A-DBL |
Consectetur 1ch PNP switch |
Princeps stabilitas continuum signum vigilantia |
| ZL112A-K15MZ-DNL |
Dual supply / valvae emissione + NPN vacuum switch |
Auto suctio & ictu-off clausa-loop imperium (NPN) |
| ZL112A-K15MZ-DPL |
Dual supply/soluta valvae + PNP vacuum switch |
Auto suctio & ictu-off clausa-loop imperium (PNP) |
| ZL112A-K15MZ-DAL/DBL |
Dual valvae + auctum vacuum switch |
Gravis officium summus reliability automatic vacuum stationibus |
| ZL112A-K25MZ-DNL/DPL |
Una copia valvae + vacuum switch |
Budget apparatu in vacuum magna functione |
| ZL112A-K15MZ |
Valvae dual tantum, nullum METIOR vacuum / switch |
Basic Auto suctionis ictu-off sine signo feedback |

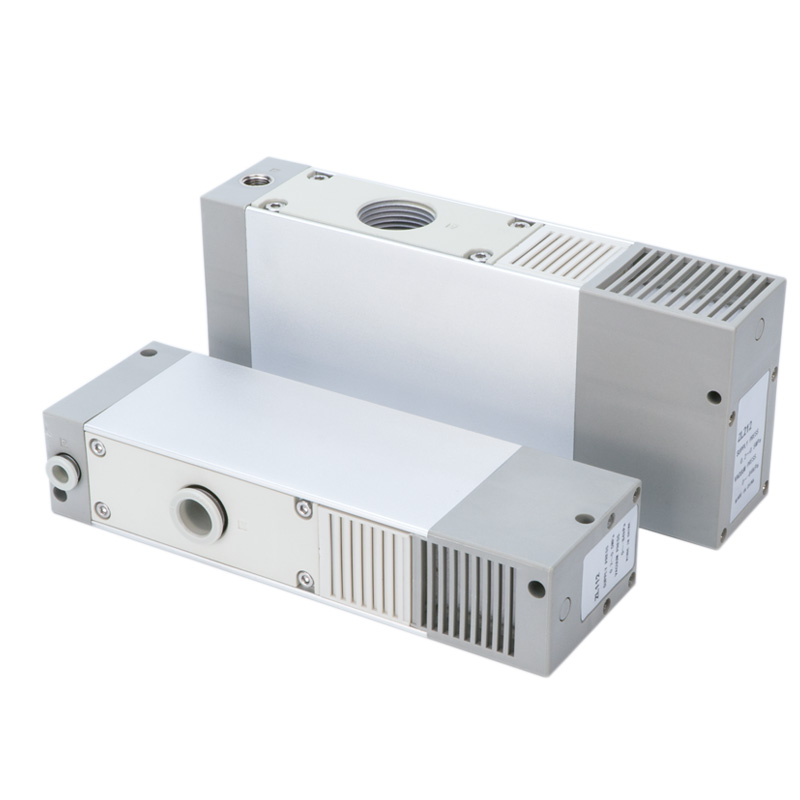

2. Standard Base ZL112 Series (Mechanical /Digital Gauge Libitum)
|
Exemplar Code |
Configurationis Descriptio |
Application missiones |
| ZL112 |
Latin nuda unitas, nulla valvae & METIOR |
Low-sumptus simplex pertractatio armorum vacuum |
| ZL112-GN |
Reservatur portum vacuum METIOR externo |
Lorem auto-installed pressura METIOR |
| ZL112-D |
Integrated digital vacuum ostentationem meter |
In-site real-time digital vacuum legere requiratur |
| ZL112-G |
Mechanica Analog vacuum METIOR inaedificata Y40Z |
Sumptus-sensitivo visual pressura observationis |
| ZL112-P |
Centralized portum generis exhauriunt |
Amplus continuis lineis vacui productio |
| ZL112-K1□L□□-D |
Dual supply & blow-off valvae + digital vacuum metrum |
Princeps integrationis automatic vacuum imperium cum digital readout |
| ZL112-K2□L□□-D |
Singula copia valvae + digitalis metri vacuum |
Oeconomicum automatic vacuum unitas cum digital ostensionem |
1. Multi scaena venturi industria salutaris technology
-- Stabulum vacuum gradum -88 ~ -92kPa, poten- tes fluunt; Consumptio aeris redacta per supra 40% cum deiectoribus unis scaena comparata, officinam aerem compressum valde deprimens.
2. Multum modularis in unum design
-- Ad libitum constructum-in copia valvae solenoidei, vacuum emissio ictui valvae, silentii, digital/mechanici, vacuum coniecturam et pressionem switch. Accessiones separatae nullae extra requiruntur, excepto arcae spatio et in extensione simplificando.
3. Maximum sonitus integrated silencer
-- Inaedificata structura in vellera limites strepitus ≤70dB(A), amicabili operationi officinarum in tectis continuis.
4. Sustentationem libero tempore vitae servitium
-- Nulla interna partes mechanicas movens, resistens crebris cyclis continuis, sustinet 24-horam massam productionis operationi non desinentibus.
5. Poculum multi suctionis centralised vacuum copia
-- Apta multi-jig multi-workstation synchronae adsorptionis, magnitudo compacta permittit directum ascendentem ad finem brachii robotici effectoris ad breviandum tempus vacuum pipeline responsio.
-- Automated grippers robotici, multi-cavitatis suctionis fixture tractatio
-- 3C electronics, tabula vitrea, sheet metallum, rarium workpiece vacuum legendo & collocatione
-- Packaging, printing and food industria vacuum armorum translatio
-- Leakage-prone workpieces and production lines requirunt magnum stabile vacuum fluens
1. Confirma automatic vacuum imperium demanda
-- Solus generatio vacuum sine ictu auto-off: Select basic exemplar ZL112A/ZL112 nudum (valvae externae opus)
-- Auto suctio + velox vacuum ictum-off commendatum: K1 valvae dual variant
-- Pretium prioritatis simplex suctus tantum: K2 valvae variantis una copia
2. Adfirmare vacuum magna postulationem signum
-- PLC limine feedback requiratur: Elige DNL (NPN) / DPL (PNP) vacuum pressura switch exemplar
-- Localis visivae pressionis lectio requiritur: D digitale metrum ostentationis vel G mechanicae analogi gauge
3 confirmamus exhauriunt layout postulationem
-- Latin sub tectis sonitus imperium: Latin version with built-in silencer (blank exhauriunt codice)
-- High flow / centralized main exhaust pipeline: P nare exhauriunt variantes
SOLH ZL112 multi-scaena venturi vacuum ejectorem -88~-92kPa altum vacuum cum 40% inferiori aëris consumptione liberat, binae/unae valvulae solenoides integratae, digital/mechanicae vacui coniecturam et NPN/PNP pressionem optionum mutandi, compactum vacui moduli integrati pro multi-suctione robotici calicis automatae systemata tractandi.
