ZL‑Series Vacuum Ejector

SOLIH ZL1 series multae energiae scaenae salvificae vacuum ejectoris, plene convertuntur cum SMC ZL1. Max suctus 100L/min (ANR) ad 0.4-0.6MPa manant. Valvulae vel integrae cum valvae versionibus cum copia / valvae iunctiones solvendas (K1/K2/B1/B2), ad libitum pressionis vacuum vacuum transitum (NPN/PNP, output analogum), circuitus tutelae indicatae surgentis. Specimen pro robot EOAT, 3C vagum et locum, pugna lithium et materiam rariorem automationem tractandi.

Mitte Inquisitionem

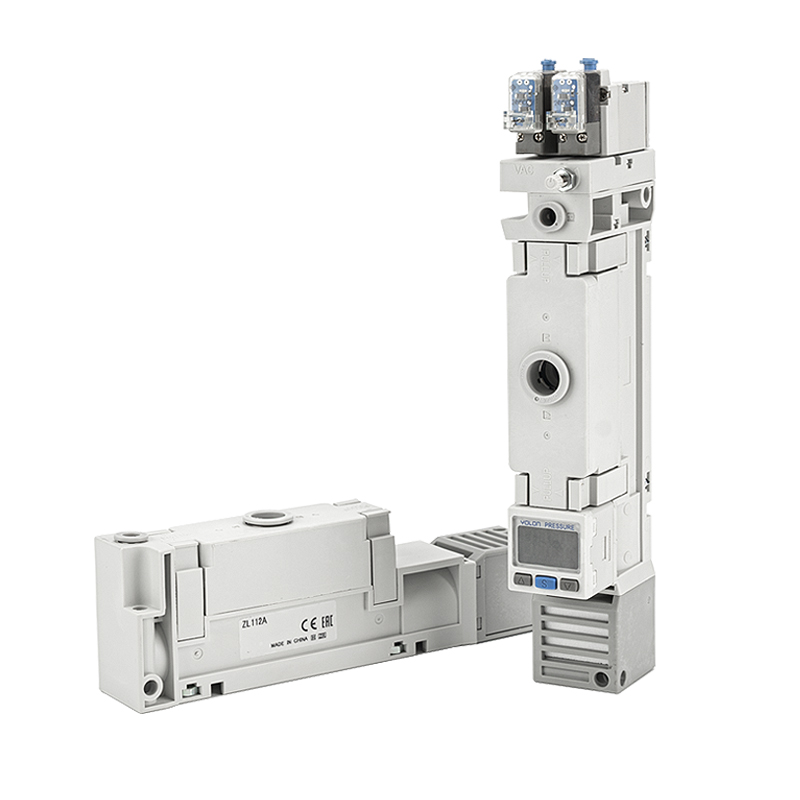

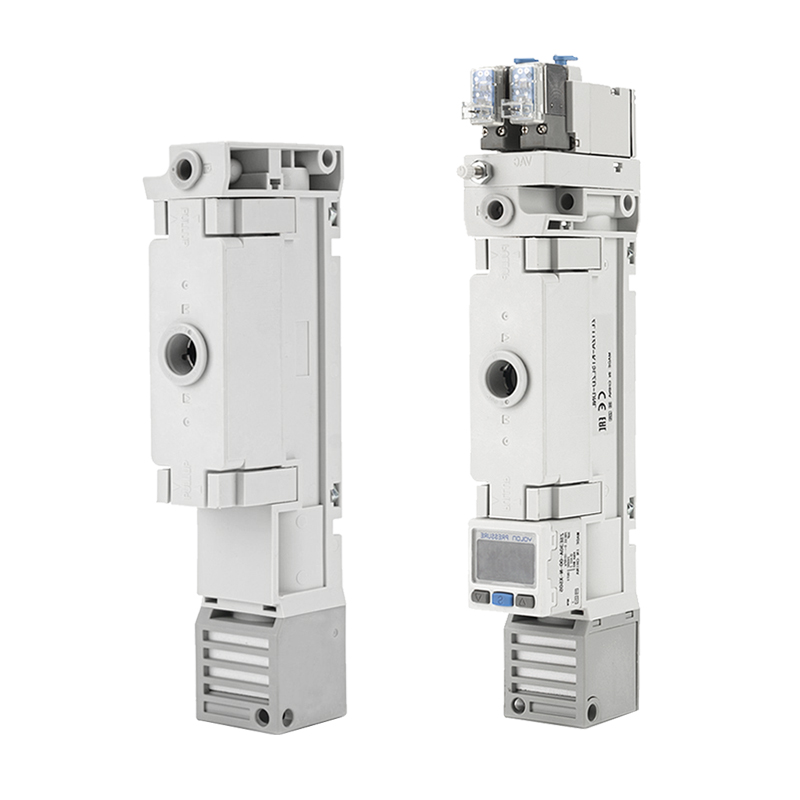

depictio producti

ZL‑Series Multi‑Stage Energy‑Saving Vacuum Ejector | Modular With‑Valve / Valveless Complete Electio

Brand: SOLH by Richge Technology | Plena Mechanica & Interface convertibilia cum SMC ZL1 Original Series

1. Product Overview

SOLIH ZL1 series multiformes gradus diffundentis venturi industriae salvificae structurae ejectoris vacuum, plene converti potest cum SMC ZL1 dimensione originali et extensione Portus. Sub eadem condicione aeris consumptio, superiores suctionis fluxus et inferior energiae detrimentum tradit. Late explicuit pro cursoribus robotis manipulatoribus et adsorptionem validam applicationes ad poros cinematographicos.

Duae figurae nuclei delectu:

• Valveless Type (Sine valvae): Corpus unicum eiector purum, valvis solenoideis externis regente. Low-cost et valde flexibile ad consuetudinem systematis perficiendam.

• Cum Valve Type: valvae integrae copia, valvae emissio et pressionis vacuum detectio moduli. Nullae extra valvae externae partes requiruntur, facilior limbis et velocior responsio. Praelata amet solutio pro robot finis instrumenti brachii (EOAT).

Exemplar 12A specificationis: Max suctus 100L/min (ANR) copia pressionis aeris laborat 0.4~0.6MPa aerem compressum mundum. Supple portum et portum vacuum cum caerimonias tactus instructum: Φ6 metrica vel Φ1/2‑inch libitum imperiale.

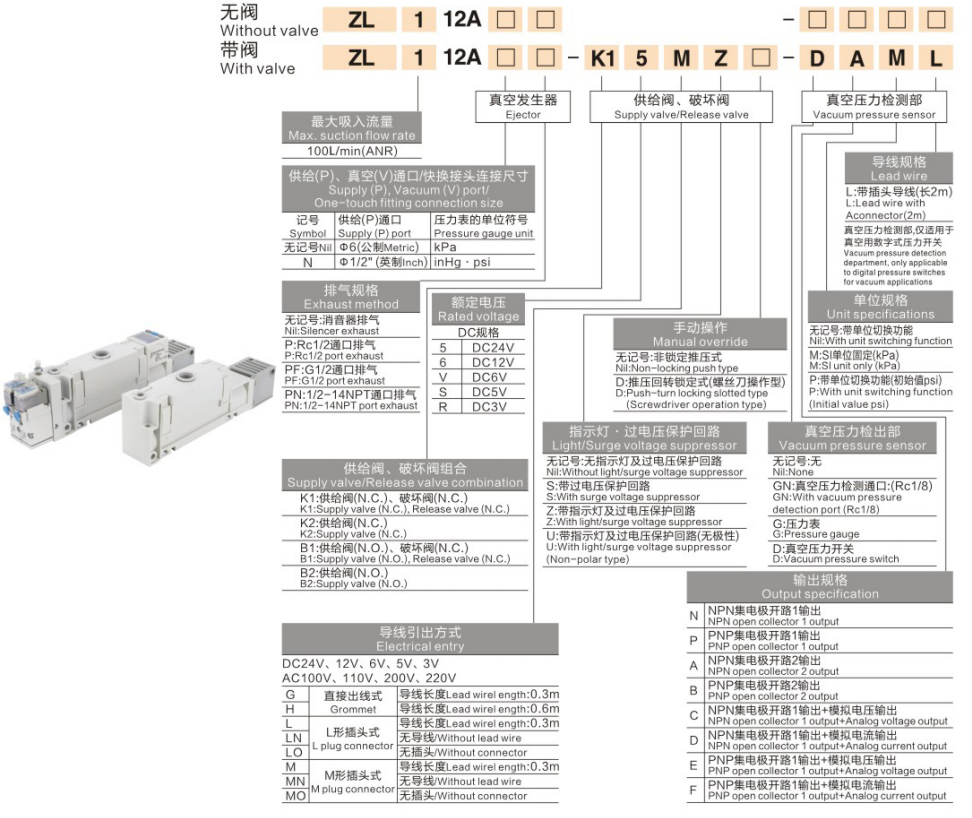

2. Generalis Model Coding Overview

2.1 Valveless Basic Coding

ZL1‑12A

• ZL1: Multi‑stage vacuum eiector seriem code

• 12A: Size code, max suci 100L/min (ANR)

2.2 The Coding for With‑Valve Version (Exemplum hauriens)

Exemplum plenum:ZL1‑12A‑K15MZ‑DAML

Code Segmentum	Module & Definitio correspondentes
ZL1‑12A	Series + size code (100L/min) vacuum ejector agmen
K1	Supple Valvae N.C. + Valvae N.C. dimissionem compositionis, supple / valvae emissio conventus
5	Ratum coil voltage DC24V
M	M‑shape plug‑type filum exitu, cable longitudo 0.3m
Z	Cum indicator lucerna & plus voltage praesidio circuit
D	In vacuum pressura switch deprehensio unitas
A	NPN publicanus collector dual‑alvei output specification
M(L)	Pressura‑switch cable: 0.3m / 2m cum obturaculum, unum tantum

3. plena GRADATUS Step Model Code Naufragii

3.1 Supple(P) / Vacuum(V) Port One‑Touch Fitting Size

Mark	Supple(P) Port	Pressura Unit Options
Nulla nota / N	Φ6 Metrica unum tactum conveniat	kPa
Inch version	Φ1/2" Imperio tangi decet	inHg, psi

3.2 Methodo exhauriunt

Mark	Exhauriunt Description
Nulla nota	Silentium exhauriunt (vexillum, humilis-strepitus effectus)
PR	1/4" portum exhauriunt, externa limbis pro centralised exhauriuntur
PG1/2	G1/2 portum exhaurit, magna fluxus centralised exhaurit
PN1/2‑14NPT	NPT 1/2‑14 portum exhauriunt pro North‑American apparatu

3.3 Rated intentione

Code	Voltage Specification
5	DC24V (amet industriae)
6	DC12V
V	DC6V (libitum)
VDC	DC5V (modo consuetudo facta)

3.4 Supple Valvae & Release VALVAE Combinationes (nam With VALVE exemplum)

Code	Valvae Compositum	Munus Descriptio
K1	Supple Valvae N.C. + Valvae Release N.C.	Instrue supple pro vacuo buildup; energize release for fast break‑vacuum. Amet lectio Latin.
K2	Supple Valvae N.C. (valvae emissio nulla)	Tantum suppeditat imperium; vacuum naturaliter dimissum, solutione optimae sumptus.
B1	Supple VALVAE N.O. + Valvae dimittere N.C.	Communiter copia valvae aperta, copia aeris continua super potentia off, pro conditionibus specialibus vacuum operandi.
B2	Supple VALVAE N.O. (Nulla emissio valvae)	Basic normaliter aperta copia configuratione.

3.5 Manual Override Function

Mark	Manual Override Operatio Modus
Nulla nota	Non latching dis-button: ventilabis ad operandum, emissio ad reset.
D	Pushtum genus densis (screwdriver operabile), lock pro continua copia aeris in committendo & debugging.

3.6 Testimonium Lampadis & Overvoltage Praesidium Circuit

Mark	Configurationis Descriptio
Nulla nota	Nullum signum lucernae et nullum circuitus tutelae nimis voltage.
S	Built‑in over‑voltage surge-suppression circuit to extend coil service life.
Z	Testimonium lucernae plus quam supra voltage praesidio circuit pro potentia in statum visualizationis.
U	Polarity‑liberum signum lampadis & ambitus tutelae voltage, arbitraria wiring licet.

3.7 Electrical Entry / Wire Outlet Modus

Code	Cable Outlet Definition
G	cable viscus Grommet, cable longitudo: 0.3m
H	L‑figura plug‑type exitu, cable longitudo: 0.6m
LN	L‑figura plug‑type, nulla cable suppleverunt (mos sui para wiring phaleras)
M	M‑shape plug‑type exitu, cable longitudo: 0.3m
MN	M‑shape plug‑type, nulla funis suppletur (mos auto‑para wiring phaleras)

3.8 Vacuum Pressure Unit (tantum valet pro vacuo deprehendendi instructi unitates)

Mark	Unitas Profecti
Nulla nota	Multi-unit switchable: kPa / inHg / psi selectable
M	Certa unitas, kPa only
S	Multi unitas switchable, officinas preset ad psi
P	Multi unitas switchable, officinas preset ad psi

3.9 Vacuum Pressure Detection Module

Mark	Deprehensio Function & Application
Nulla nota	Nulla unitas deprehendatur; purum corpus ejectoris, connectunt sensorem externum distincte.
GN	Portus vacuum (Rc1/8), connectunt externa pressura digitalis METIOR vel PLC acquisitio moduli.
G	Constructum in analog pressione gauge pro loci in situ visuali vacuo‑gradu legendi.
D	Constructum in vacuo pressione switch, outputs switch / analog signum pro absentis parte terroris & workpiece‑in‑place feedback.

3.10 Output Specification (Pro D‑type Vacuum Pressure Switch)

Code	Output Modus Description
N	NPN collector 1‑ trames output, vexillum PLC NPN input alveum
P	PNP open‑collector 1‑ channel output
A	NPN collector dual‑channel independens output
W	PNP open‑collector dual‑channel independens output
C	NPN 1‑ channel switch + analog voltage output
D	NPN 1‑canale switch + Analog current output
E	PNP 1‑ channel switch + analog voltage output
F	PNP 1‑ channel switch + analog current output

3,11 Pressura‑Switch Specification (Pro Dtype)

Code	Cable Definition
L	Pre‑assembled plug‑in cable, total longitudo: 2m
M	Pre‑assembled plug‑in cable, total longitudo: 0.3m

4. Caput Specificationum Technical Summarium

Parameter Item	Standard Specification
Principium opus	Multi scaena diffundens venturi vacuum eiector, summus efficientiae navitatis structurae salutaris
Max Suctionis O (12A size)	100L/min (ANR)
Latin Supple Aeris Pressura	0.4 ~ 0.6MPa
Supple / Vacuum Port	One-tangere conveniens: Φ6 metrica / Φ1/2" libitum imperiale
Exhauriunt Options	Latin silentii exhauriunt; PR / PG / PN port‑type centralized externa exhauriunt ad libitum
Ratum Coil Voltage	DC24V/DC12V/DC6V; DC5V available in consuetudine request
Electrical Entry Options	G grommet / H‑L figura obturaculum / M‑M figura obturaculum; LN / MN cable‑minus versio pro mos wiring
Vacuum Detection Unit	Nulla detectio / GN detectio portus (Rc1/8) / G pressura loci METIOR / D constructum in vacuo pressione switch
Signum Output	NPN / PNP alveus solitarius switch output; Analog voltage / current output ad libitum
Testimonium & Surge‑Protection	Nullum praesidium / S surge‑protectionem/Z indicator+praesidium

5. Valveless VS With‑Valve Electio Reference Table

Comparatio Item	Valveless Type ZL1‑12A	Cum Valve Type ZL1‑12A‑K1…
Integrated Valvulae	Nulla in valvis constructa, externa 3‑modo valva solenoidei requiritur	Copia valvae integrae + valvae emissio (K1/K2/B1/B2 series)
Vacuum Break Method	Imperium externum valvae seu naturalis emissio	Instant vacuum confractus per built‑in valvae emissio celeriter workpiece drop‑off
Responsio Celeritatis	Dependent valvae externae et fistulae lineae layout .	Citius integratur responsio ad summus cycle robot application
Limbis complexionem	Valvulae separatae, caerimoniae et accessiones sparguntur	Magnopere integrari, minimum on‑situm limbis opus
Sumptus & Flexibility	Imi sumptus, maximum systematis consilium flexibilitate	Superiore gradu integrationis, robot EOAT fine effectoris praelatus
Pressura‑Detection	Vacuum externum pressura switch requiritur	Libitum constructum in G pressura gauge / D pressura vacuum switch

6. Standard Vacuum Circuit Configurationis Solutions

Solutio I: Valveless Cost.Optimized Circuitus

AFC2000 oleum duo unitas aeris fons curatio → 3V110 3‑ modo valvae solenoidei → ZL1‑12A valvulae vacuum eiector → ZPT vacuum suctus poculum

Solutio II: With Valve High-Speed Robot Pick‑and‑Place Circuit

AR pressio regulatoris → ZL1‑12A‑K15MZ‑DAML (valvae copia integrata, valvae emissio & pressionis vacuum transitum) → finis effector suctionis poculi robot, automatic absentis workpiece terror munus sustinetur.

Solutio III: Multi-Bank Centralized Air Supple Ambitus

AFC large‑flow non‑oleum duo‑unit → multiplex ZL1 cum valve eiector multiplex collectio → multisuction‑cup materia synchrona legendo.

7. GRADATUS Electio Ductu

• Portus magnitudinis: Pro vexillum PU6 / Φ6 tubing, lego portum metricum no‑mark. Tubing pro imperatoria Φ1/2", nominat portum imperialem una cum inHg/psi pressionis unitatis.

• Exhaurire: Nam strepitus officinarum ambitus, vexillum silentium exhauriunt. Ad destinatam aream tutam exhauriendo, PR/PG / PN porttypi porttypi centralisatus sumo.

• Voltage: DC24V(code 5) pro instrumento domestico; DC12V / DC6V pro exportatione Europaea sive incepta voltage‑device.

• Valvae coniunctio: K1 (N.C. subaudiendum + N.C. diurnum) for standard high-speed pick‑and‑place; K2 ad cost‑reductionem; B1/B2 pro speciali normaliter‑aperto vacuo‑tenens condiciones operantes.

• Deprehensio postulationem: Elige D vacuum pressura switch(NPN/PNP par PLC input type) pro PLC absentis partis terrorem; G loci pressurae coniecturam pro visivae visualis inspectione; GN detectio portus tertiae partis externae datae acquisitionis.

• Testimonium & Surge-protectionem: Select Z/U versio arcae diagnostica indicio; S super-voltage‑protection for humid hard working working.

• Manual delendi: Elige D impulsum convertendi densis manualibus override pro missionibus crebris & debugging missionibus, sustentatio aeris clausa continua copia.

8. Typical Industry Application missiones

• 3C electronics PCB & chip summus celeritas pick‑and‑place tractatio

• Lithium‑ion altilium electrode sheet materia transfer

• Lobortis & porous‑material strong‑force ad adsorption

• Vitrum & sheet‑metal grave officium roboticum legendo

• Iniectio fingens robot partem remotionem & demoliendo

• Food processus packaging grabbing application

• Logistics summus celeritas translatio systemata robotici voluptua

9. Maximus Operatio & Installation Notes

• Noli utere oil‑mist FRL unitates (AC/BC series trium unitas) vacuum eiector aeris copiam. Lubricatio oleum non impedit multi scaena diffundens nozzles, adhibendum est AFC non duo oleum unitas aeris fontis curationis unitatis.

• Mandatorie install ZFC inline vacuum colum in parte flumine. Minimae multiformes nozzles sensitivae sunt ad pulverem; suctus fluxus gravem semel haerentem particulam contaminationis deprimet.

• Caligarum longitudo inter eiectorem et poculum suctionis quam brevissime conservate ut ieiunium vacuum constructum et stabilis suctionis effectus praestet.

• Copiam meliorem aeris pressionis ambitus 0.4~0.6MPa. Pressura parum efficax suctus ducit ad infirma; nimia pressura crescit compressio aeris consummatio.

• Pro valvae exemplaribus, selectae Z / S / U versiones cum constructo in chirurgiae gyro ad extendendum solenoiidum coilum servitium vitae intra repositoria potestate.

• Pro PR / PG / PN centralizatae figurationes exhauriunt, tenent illibatum exhaurit limbum, pressionem dorsi vacuum-aedificationem observantiam graviter deprimet.
