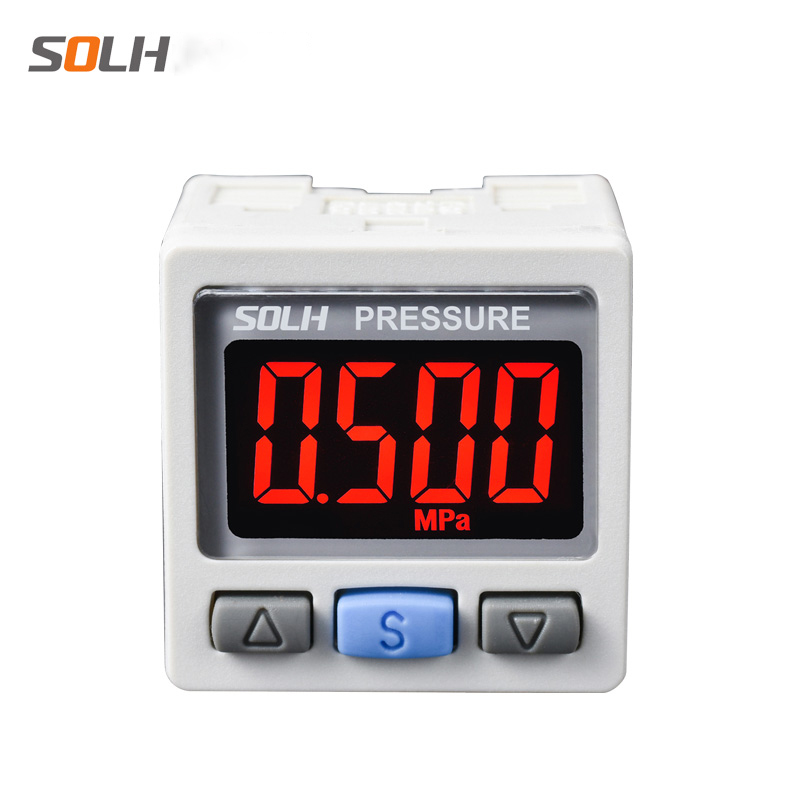

ZSE30A(F) / ISE30A Series High Precision Dual-Color Digital Pressure Switch

Notam:SOLH by Richge Technology

Product Positioning

     SOLH ZSE30A(F) / ISE30A series altae exactionis digitalis pressionis virgae adhibentur ad pressionis real-time vigilantiae, terroris liminis et clausurae signum ditionis omnium circuiturum pneumaticorum. Compatibile cum vacuo, mixto pressione mixtae et pressionis positivi vexillum condiciones operantes. Core commoda includunt ±0.2%FS ultra-altam praecisionem, dual-color ruber/viridis LCD propono et munus exemplar unum-click batch parametri, agens ut "oculus vigilantis visualis" systematum pneumaticum automatum.

Series Classification by Pressure Mensuratio Range

Technical Specifications Core (High Precision Grade)

  1. Propono Unitas: 4-digiti LCD velum, duplex color autocinetum (Green / Red); OUT1 correspondet viridi, OUT2 correspondet rubeo

  2. Mensuratio accurata: ±0.2%FS @25℃, resolutio ad 1/1000 librae plenae

  3. signum output Options

     -- Signum switch: 2-fluvium NPN / PNP apertum collector transistor output (OUT1 & OUT2)

     -- Analog signum (optional): 1~5V intentione output seu 4~20mA current output

  4. Potestas Supple: 12~24 VDC±10% ampla intentione range

  5. Overpressure Capacitas resistere

  6. ZSE30A/ZSE30AF:D kPa

  7. ISE30A positivum pressura exemplar: 1.5 MPa

  8. Praesidium Classis: IP40 dustproof

  9. Ambiens Temperature operating: 0~ 50℃

  10. Exclusive Function: Exemplar parametri One-click, occasus a 1 domino unitatis ad maximum 10 ancillarum unitates effinge, efficaciter vitare parametri errores in batch apparatu debugging

Nomen completum Model Regula

  Exemplar Exemplum: ISE30A-01-N-M

     --  ISE30A / ZSE30A / ZSE30AF: Series pressura genus identifier

     -- 01: sequela Portus specificatio = M5 stamina interna (R1/8)

     -- N / P: switch output transistor type

        N = NPN collector apertum; P = PNP apertum collector

     -- M / C / D: Output combination definition

        M = 2 independens switch output canales tantum

        C = 1 switch channel + 1~5V analog voltage output

        D = 1 switch channel + 4~20mA analog vena output

Dual-Color LCD Propono Logica

     - Green backlight: Actualis pressura in user preset normalis operationem range

     - Red backlight: Impetus excedit superioris / inferiore terrorem limina (overpressure / underpressure monitionem)

     -- 4 Modi Ostentationis Novifactae: Support vexillum Logicum (normalis viridis, abnormis ruber) vel e converso colore mutandi ratione prout requiritur.

Typical Industrial Application missiones

  1. Pneumatica Cylinder & Workpiece Clamping Circuit

     Clamantes pressione limina 0.5~0.7MPa; felis rubra terror signum semel pressionis guttae infra modum inferiorem ne workpiece laxitas durante processui.

  2. Vacuum Suctionis Tractantem stationem (ZSE30A exemplar vacuum dedicatum)

     Posita certa adsorptionis limen ≤ -80kPa; statim output terror signum si vacuum gradum corrumpit ad vitare workpiece defluentibus in translatione.

Facis Comparatio vs Ordinarii Mechanica Pressura SWITCH PB

GRADATUS Electio Guide

     -- Vacuum solum seu mixtum vacuum + microform pressionis positivae → Elige exemplar pressionis universalis ZSE30AF

     -- Latin ambitus generalis pneumaticus (0.4~0.7MPa aeris copia) → Exemplar popularissimum ISE30A-01-N-M

     -- Require tempus reale continua pressionis notitia collectionis per PLC → Selecta C (1~5V intentione) seu D (4~20mA current) analogi output variantes

Una sententia Summarium

     SOLH ZSE30A vacuum, ZSE30AF compositum et ISE30A positivus pressus digitalis virgarum pluma ±0.2%FS alta praecisio dual-coloris LCD, 2 alvei NPN/PNP transibit + optional 1~5V/4~20mA Analog output cum uno-click batch parametri exemplaris, late pro pressione et vacui suctu monitorii & terroris in automated.
