G Series Pneumatica Pressure Cange

G Series Pneumatica Pressure Generalis Cange

Brand: SOLH by Richge Technology

Product Positioning

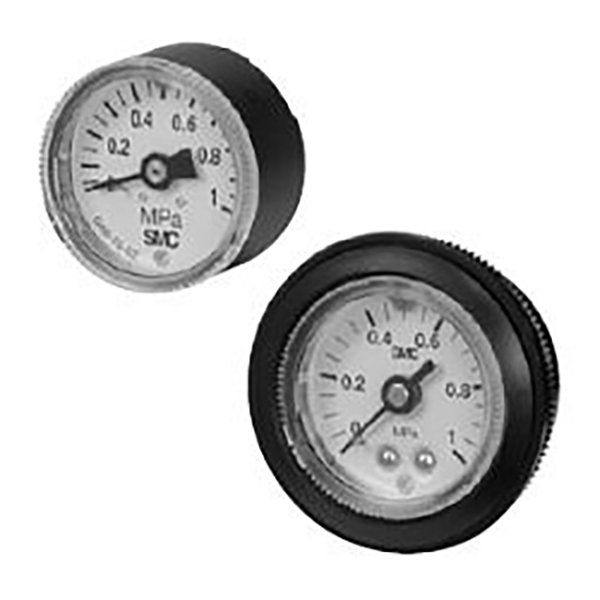

     SOLH G series est vexillum pressionis pressione dicata systematibus pneumaticis pro pressione aeris compressi mensurae, in regulam speciei fundamentalem divisam et modum indicatae generis cum anulo colorato. Diametros diametri exteriores φ15~ φ63, pressionis spatia contegit 0.2~1.5MPa cum accuratione vexillum ±3% F.S. Duae structuris praesto sunt: ​​postremi sequelae G exemplar ad tabulam ascendentem et latus GA exemplar ad pipeline institutionem directam.

Series Location & Dimension Specification (Exter Diameter Connection Thread)

     -- G15: φ15, M5 linum internum / R1/8; ultra-miniatura, valvis micro pneumaticis compositus

     -- G27: φ26, R1/16/R1/8; compacto corpore gracili pro angustiis angustiis institutionem spatii

     -- G36/ GA36: φ37.5, R1/8; amet vexillum generalis, ad exemplar

     -- G46/ GA46: φ42.5, R1/8/R1/4; maxime usus, ad libitum modum indicator anulum

     -- G53-L: φ51, R1/8/R1/4; medium magnum dial in rubeo-viridis modum monens anulum

     -- G63-L: φ63.4, R1/8/R1/4; Super magna dial, clara lectio e longinquo

Exemplar Nomen Regulae & Exempla

 1. Nominando Forma

     -- G / GA + Magnitudo Code + Libitum Suffixum L + Pressure Range Code + Thread Code

     -- Suffix L = limite indicato anulo rubro-viridis instructus

  2. Exempla Exempla

     -- G46-10-02;

         G46 = φ42.5 rear thread model | 10 = 1.0MPa range | 02 = R1/4 linum

     -- GA36-10-01:

        GA36 = φ37.5 side thread model | 10 = 1.0MPa range | 01 = R1/8 stamina

     -- G36-L-10-01

        Cum rubro-viride limitem anulum praemonitum L, φ37.5 postico stamina, 1.0MPa, R1/8

  3. Codicis Definition

     -- Impetus Range Code:

         2 = 0~0.2MPa

         4 = 0~0.4MPa

        10 = 0~1.0MPa

        15 = 0~1.5MPa

    -- Seta Code

        01 = R1/8

        02 = R1/4

        R1 = R1/16

        M5 = M5×0.8 metrica fila interna.

Universal Core Technical Parameters

  1. Measurable Medium: Cogo aere; oleum-liberum & aeris-liber madefactum partim versiones libitum pro mundo processum

  2. Standard Pressure Ranges: 0~0.2 / 0~0.4 / 0~1.0 / 0~1.5MPa

  3. Sagaciter Grade: Latin ±3% F.S.; mini G15 & G27 ±5% F.S.

  4. Material configurationis:

     -- Habitationi : Zinc mixturae / nickel patella aluminium mori-cast

     -- Fenestra Cover: Impact repugnant polycarbonate

     -- Connection decens: Brass; aeris-liberum aliud available

  5. Temperature operans: -5~ +60℃ (medium sine vico)

  6. Adscendens Ordo

     -- G type: Tergo stamina, designata tabulae institutionis embedded

     -- GA type: Pars stamina directa inlinea pipeline ascendens

Dominus Model with Low Testimonium Annuli

     -- Red anulus: Superius terminus / princeps pressura terrorem limen

     -- Green ring: Normal safe working pressure interval

     -- Alba monstratorem: Real-time dynamic pressura aeris valorem

     -- Core Commodum: Intuitive iudicium visualis sine accurata lege lectionis, apta linearum conventuum et multi-punctum vigilantia repositoria centralised

GRADATUS Electio Guide

  1. Minature & strictum spatium angustum: Select G15/G27 (φ15/φ26)

  2. Vexillum ordinarium gyrorum pneumaticorum: G36/G46 (φ37.5/φ42.5)

  3. Visual pressionis admonitio requiritur: G36-L / G46-L cum color limite anuli

  4. Longum spatium remotum lectionis postulat: Large dial G53-L/G63-L (φ51/φ63)

  5. Installation modus distinctionis

     -- Direct pipeline adscendens → GA latus filum series

     -- Equipment control panel embedded adscendens → G series series sequela

Popular Standard Model Quick Reference

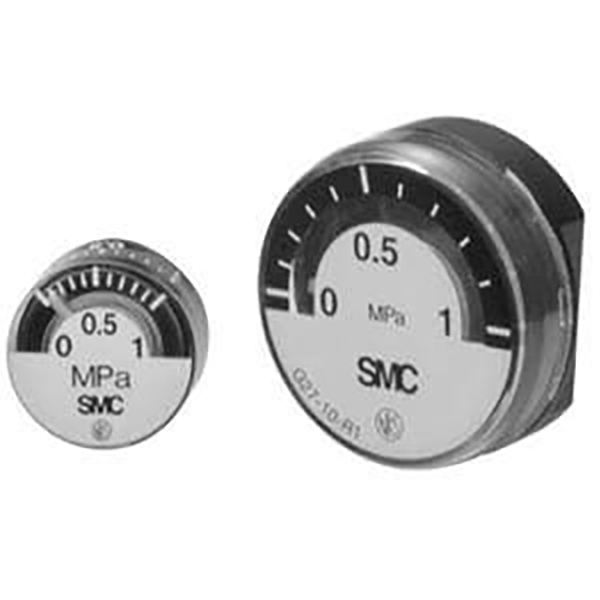

     -- G27-10-R1: φ26 dial, 1.0MPa range, R1/16 fila

     -- G36-10-01: φ37.5 postico stamina 1.0MPa, R1/8

     -- G46-10-02: φ42.5 postico stamina 1.0MPa, R1/4

     -- G46-L-10-02: φ42.5 stamina postica, limites anuli rubri viridis, 1.0MPa, R1/4

Una sententia Summarium

     SOLH G series pneumatica pressionis metienda operit φ15~φ63 plenas moles dial moles tergo/sidentibus duobus stylis ascendentibus, libitum L genus color limitans anulum monens, 0.2~1.5MPa pressiones plenae et versiones aeneae liberae mundanae, norma aeris pressionis magna accessoriae pro omnibus circuitionibus industrialibus automationis pneumaticae.
