Brand: SOLH by Richge Technology

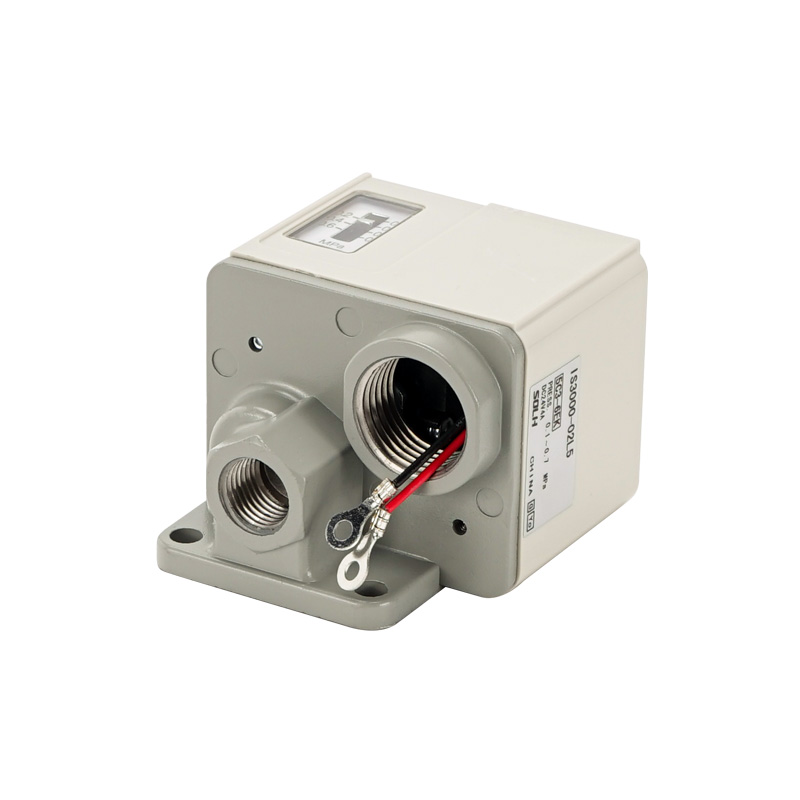

SOLH IS3000 series est ordo microform pressus mechanica agitatae switch. Imprimit contactum micro internum per switch per aerem pressionis in piston ver agente, ac robustum electricum output directum tradens. Maxime usus est pro ambitu aeris in/pressu tutelae et felis automatis potestate, eodem gradu & substitutione compatibilis sicut series IS10 calamorum transibit. Perfectum ad gravissimas ambitus vibrationis ubi electronicae virgae digitales instabiles sunt.
1. Operans principium
-- Cogo aer onusto pellat ver-ancone; semel pressio aeris ad limen preseclitum attingit, piston mechanice agit constructum-in micro switch ad aperiendum vel claudendum contactum. Cum pressura pretii infra hysteresis defluit, ver piston reponit et statum transitum originalis restaurat.
2. Core Structural Components
-- Top pressure tionibus nodi: Direct gyratorium occasum felis pressura sine potentia copia
-- Inaedificata in 1ab micro switch: Universale AC/DC onus, directe connectere PLC initus terminales vel parvas solenoides valvulas agitare
- Graduated pressura viewing fenestra: Visibilis MPa scale pro real-time consectetur pressura Lectio
-- Aluminium habitationi Die-cast: IP40 pulvis tutelae, ad ferendum officinam generalem apta
|
Parameter Item |
Standard Specification |
| Applicable Medium |
Aer siccus, nitrogenium et alia gasi inertia non mordax |
| Max Operating Pressura |
1.0 MPa |
| Product Pressura dolor |
0,1 ~ 0,7 MPa (plena coverage normarum pneumaticorum vexillum) |
| Hysteresis (Dead Band) |
≤ 0.05 MPa |
| Repeatability Accuracy |
±0.05 MPa |
| Contactus configurationis |
1ab uno polo duplex iactus (NO/NC switchable wiring) |
| Contactus Load Rating |
Standard type: AC/DC 100V 1AMicro onus type (IS3010): DC 5V 1mA (optimized for PLC & miniaturarum dispositos) |
| Portus Thread Location |
Rc1/4 (IS3000-02); NPT1/4 (IS3000-N02) |
| Operating Temperature |
-5 ~ 60℃ (glacies formationis intra aeris limbis) |
| Praesidium Classis |
IP40 pulvis repugnans |
| Service Vita |
Usque ad X decies mechanica commutatione cycles |

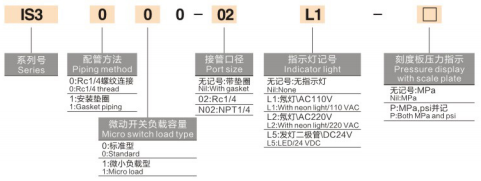

1. Exemplar Exemplum: IS3000-02-P
-- IS3000: Base vexillum staminea corporis series
-- 02: Port thread code = Rc1/4; suffix N02 = NPT1/4 American thread
-- P: inaedificata Neo indicator lux (vexillum blank = exemplar sine lumine)
2. Derivative Special exemplum
-- IS3100: Gasket superficies varians ascendens, modularis aëris munerum (AFC/AC seriei) compositus ad institutionem multiplicem integratam.
-- IS3010: Micro humili-onus dedicatum exemplar, optimized pro minima DC signo initus PLC moderatoris
1. Concursores & Vibratio Repugnans Gravis-Officium Mechanica Design
-- Piston solidus + microform constructionis contactus, stabilis effectus sub continuis vibrationibus a vibratoribus, malleis pulsandis et instrumentis stampantibus, nullo signo calliditate vel falso excitato.
2. Simple De-Site Calibration sine Power
-- Top temperatio gyratoria nodi + lectus fenestrae conspicuae; pressionis limen apponi potest offline sine operando scrinium moderandi.
3. Lata AC / DC Load Compatibility
-- Maximum 1A onus contactus capacitatis permittit directam impellentem valvulas solenoidas parvas sine medias mensas, vel nexum directum ad puncta inputa digitales PLC.
4. Hysteresis Ultra-low
-- Max cohortis mortuae ≤0.05MPa, congruens felis & reset pressionis ad frequentes armorum decursus amni cycli velocitatem vitandum est.
1. Main Air Source Minimum Pressura Praesidium
-- Installed amni colum moderatoris lubricator unitates aeris ; triggers terrorem insignem si copiae pressionis guttae infra 0.4MPa ad custodiendas K/GT vibratores, BVP/SK malleos pulsantes et actuatores pneumatici ex insufficiens iactura impulsus.
2. cylindri Veniet Position Confirmatio
-- Post cylindrum plene extenditur, pressio cubiculi oritur ad valorem praestantem mittendi signum switch ad intercludendum gradum processus sequentis producendi.
3. Vibrator Circuit Safety Interlock
-- Monitores aeris pressura operantes; potestatem secat ad XQ valvulas velox exhauriunt cum pressio infra limen cadit ne vibrator burnout per operationem sub-pressionis causatur.
|
Comparatio Item |
IS3000 Mechanica Micro Switch |
IS10 Non Contact Reed Switch |
ISE30A Electronic Digital Switch |
| Trigger Mechanismus |
Piston mechanica Micro contactus actu |
Tubus calamus magneticus non-contactus sentiens |
Magna cura electronic pressura sensorem |
| Electrical Load Capacity |
Fortis (1A @100V AC/DC, valvae directae coegi) |
Medium (0.5A @100V) |
Infirmi (solum humili gradu PLC signo output) |
| Pressura Profecti Methodo |
Top gyratorius nodi + scale fenestra (nullum potentia opus est) |
Parte temperatio cochlea + parua fenestra |
Multi-key digital menu parametri setup |
| Mensuratio Accuracy |
±0.05 MPa |
±0.05 MPa |
±0.2% FS ultra alta praecisione |
| Optimal working Conditions |
Gravis vibratio, directa actio actuatorum |
Communem humilemque vibrationis molem contionis lineae |
Subtilitas pressionis magna, clausa-loop PLC potestate |
SOLH IS3000 series piston mechanica pneumatica pressionis switch features humilis hysteresis, gravis vibrationis resistentia et altae contactus onus capacitatis, cum lino gasket mons et Micro-onus PLC variantes in promptu, late pro aere circumpressione pressionis securitatis adhibitae, et processus automatis felices significationibus in vibratoribus, cylindricis stationibus rotundis et instrumento automationis generali.
