Brand: SOLH by Richge Technology

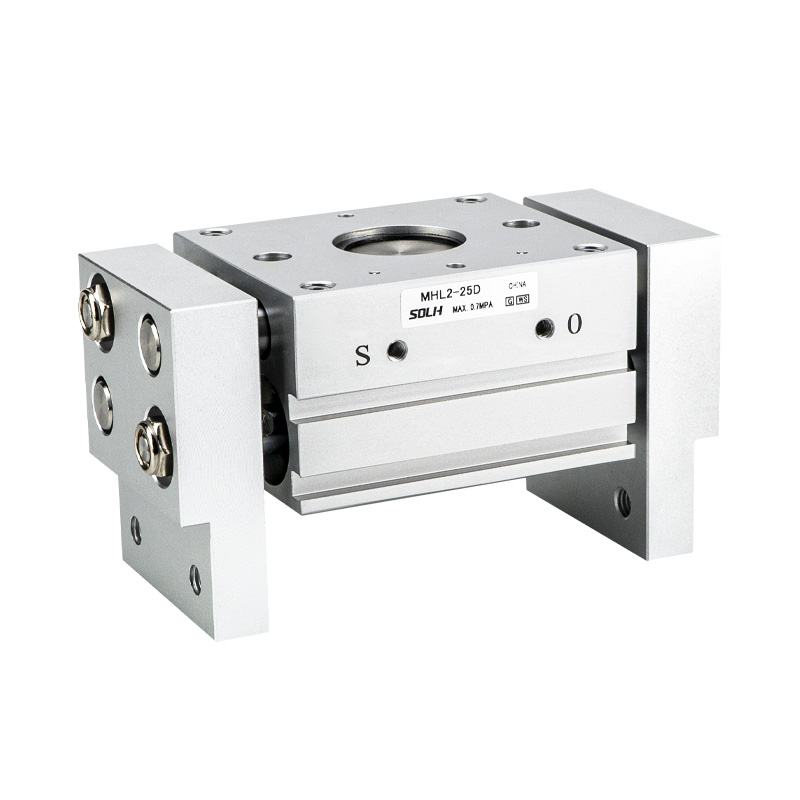

SOLH MHL2 series dilatata tortus & pinna synchrona parallela grippis est. Core commoda: vis clamping valida, ultra-wide apertio peregrinationis, structurae altae rigiditatis et optiones versatiles ascendentes. Apta ad vecturam gravium & magnarum fabricarum, magnae amplitudinis partem tenacissimae et altae oneris parallelae clampinge. Late adoptavit in automated loading/unloading, instrumentum machinae fixtures et machinae packaging.
-- Transmissio: Rack & pinna mechanismum efficit motus maxillae synchronae sine offset; duplicem piston layout liberat validam clamping vim intra compactam adumbrationem.
-- Construction: Aluminium mixturae corporis, fauces chalybis immaculatae, aedificatae in anulo magnetico. Omnes spicula rotativa adoptant resinae olei gravidatae gestus plusquam pulvis extergentes sigilla integrata, pulvis bonum resistens et vitae servitium extensum.
-- Operation Modus: Duplex agens (D) solum, nullum agens varians singulare. In gutture adjustable ad celeritatem lenis inaedificata potestate. Quattuor magnetici switch inscendentes foramina pro flexibili positione detectionis layout.
-- Stroke Electio: 3 ictus vexillum per bore: D(Short) / D1(Medium) / D2(Longum), compatible cum diametro exteriore clammationis et diametri interioris obliquas varias latitudines workpieces.
-- Positio accurata: Repetere situm accurationis ±0.1mm, fibulationis stabilis sub gravi onere condiciones perficiendi.

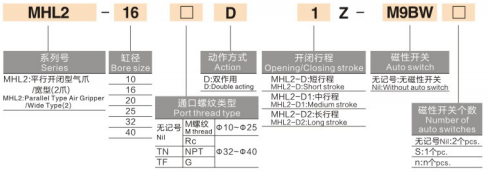

1. Exemplar Exemplum：MHL2-32D2-TF-M9BW
|
Segmentum |
Code |
Descriptio |
|
1 |
MHL2 |
Series: Lata foramen parallelum pneumaticum gripper |
|
2 |
32 |
Bore magnitudinem: 10,16,20,25,32,40mm (integumentum parvum, medium & onus grave) |
|
3 |
D/D1/D2 |
Ictum gradus = Brevis strokeD1 = Medium strokeD2 = longi ictum |
|
4 |
TN/TF |
Portus stamina specificationTN = stamina NPT; TF = G stamina (specialis pro -32/40)ø10~25 default M filo metrico |
|
5 |
-M9BW |
Magnetic switch modelM9B(NPN) / M9N(PNP) / M9PW=1m cable / L=3m / Z=5m |
|
6 |
Consuetudo Suffix |
-X28: Adjustable latitudo clausa-X53: EPDM-X79 signatio: Cibus-gradus ducatus et aliae optiones consuetudines. |
2. Latin Order Reference
MHL2-40D2-TF-M9BL Bore 40, plaga longa D2, portum filorum G, in magnete constructum, M9B cum 3m cable transitum.
|
Parameter Item |
Standard Specification |
| Configurationis maxilla |
2 fauces, foramen linearem parallelam & claudendo |
| Operatio Modus |
Duplex agens solum |
| Operans Pressura |
ø10~25: 0.15~0.6 MPaø32~40: 0.1~0.6 MPa (commendatur: 0.5 MPa) |
| Probatur Pressura |
1.0 MPa |
| Ambiens Temperature |
-10 ~ 60℃ (non vico intra limbis) |
| Repetere Position Accuracy |
±0.1 mm |
| Max Operating Frequency |
Reducit ut bore & ictum auget 10D ≈ 60 cpm; ø 40D2 ≈ 20 cpm |
| Air Portus Thread |
ø10~25: M5×0.8ø32~40: Rc1/8 (TN/TF/NPT ad libitum) |
| Lubricatio |
Operatio olei libera; cibus-gradus / summus temperatus adipe petitionem available |
| Magnetic Montem SWITCH |
Quattuor foramina ascendentes, 1~ 2 virgas magneticae sustentant |
| Adscendens Vias |
Corpus perforatum perforatum latere / cononte axiali / per foramen, multi-orientationi compatible |
|
Bore (mm) |
Reference Clamp Distantia (mm) |
Clamping Force (N) |
Exemplar Codicis D/D1/D2 |
Una Parte Stroke (mm) |
Total Opening dolor (mm) |
Net pondus (g) |
|
10 |
40 |
14 |
MHL2-10D/D1/D2 |
20/40/60 |
20/40/60 |
280/345/425 |
|
16 |
40 |
45 |
MHL2-16D/D1/D2 |
30/60/80 |
30/60/80 |
585/795/935 |
|
20 |
40 |
74 |
MHL2-20D/D1/D2 |
40/80/100 |
40/80/100 |
1025/1495/1690 |
|
25 |
40 |
131 |
MHL2-25D/D1/D2 |
50/100/120 |
50/100/120 |
1840/1850/2775 |
|
32 |
80 |
228 |
MHL2-32D/D1/D2 |
70/120/160 |
70/120/160 |
2905/3275/3820 |
|
40 |
80 |
396 |
MHL2-40D/D1/D2 |
100/160/200 |
100/160/200 |
5270/6830/7905 |
⚠️ Nota: Reference fibulae spatium: 40mm pro 10~25; 80mm pro ø32~40. Faciens clamping vis decrescit cum extensio maxillae augetur. Salus factor ≥1.5 reservari debet in onere verificationis.
-- Gravis / oversized workpieces requirunt vim solidam et ictum apertam patentem, sicut gravia tibiae, laminae et materia emuncta.
-- Applicationes postulantes motum parallelum synchronum sine deflexione, multifariam flexibilem extensionem ascendentis
- Pulvis-pronus condiciones durae operantes (machina instrumenti onerationis, partis tractationis mittentes), certas pulveris resistentiam et vitam longam exigens.
-- Systema indigentes diam exteriorem clammationem et diametrum interiorem tenacitatem, compatibilia cum multiplicibus magnitudinum partibus per 3 ictum optionum
-- Decernite onus primum ante electionem pare: Calculate vim clampingendi requisitam secundum pondus workpiece, extensionem maxillae longitudinis ac factoris salutis ≥1.5, deinde pare congruenti molem gestantis.
-- Lego ictum secundum workpiece latitudinem: prioritas series D (brevis) → D1(medium) → D2(longum), superuacua ictum vitare redundans.
-- Deprehensio positionis: Equip cum D-M9□ series magneticas virgas (NPN/PNP/non-contactus) pro maxilla aperta/clausa opiniones; quattuor foramina adscendens flexibilem dispositionem patitur.
-- Conscendens & portum configuration: ø10~25 adopt M5×0.8; ø32~40 lego Rc1/8 cum TN/TF/NPT stamina. Elige latere / per / latus basim montem iuxta superficiem institutionem.
-- Pulvis tutelam & sustentationem: Standard integrated pulvis scraper. Adde -X85/-X86 pulvis repugnans consuetudini versionis pro gravibus pulvis ambitus; regulariter puro gestus et annulos obsignantes.
SOLH MHL2 tortus & pinna late-plaga pneumatica gripper vim gravem clamitionis cum tribus optionibus ictu liberat, in pulvere probationis structurae et multi directionis ascendentis, compatibilis cum diametro exteriori & interiore tenaci, ideali gravi officio gripperorum pro machinarum instrumentorum oneratione, lamina & lance tractandi ac pacandi apparatu automationis.
