Low-Voltages Switchgear Accessories fabricata a Richge Technologia Co., Ltd Summaria et Parametris Technical

I. Product Overview

  Cum fabrica professionalis accessiones humilis-voltages switchgear, Richge Technologia Co., Ltd. (Richge Technologia) amplis seriei producti et exempla praebet, apta ad ima voltage permutationes variarum specierum ac applicationis missionum. Cum summa qualitate, constantia, et consilio eget porttitor, et late in systematibus potentiae, automationibus industriae, in electricis machinationibus aedificandis, et aliis agris utuntur.

  Demissa intentione switchgear accessiones Richgeae habent sequentes notas:

• Series plena coverage: Plus quam 1,000 genera productorum, compatiuntur cum variis systematibus mutandi ut MNS, GCS, GCK, R-Blokset, R-Okken, et R-8PT.
• Alta reliability: Stricte obsequenter cum signis internationalibus et domesticis ut operationem stabilem sub variis conditionibus laborantibus curent.
• Modular design: Facultates institutionem, sustentationem, upgrading.
• Fortis compatibilitas: Compatible cum humili-voltage switchgears of multiple brands.

II. Principalis Product Genera et Technical Parameters

2.1 Main Circuit Connector Series

   Connexiones principales sunt nuclei partium partium humilium voltagenarum switchgears, responsales nexus electricae et mechanica subsidii praecipui circuli. Copia varias praebet ambitum iungentium principalium exempla, apta diversis currenti aestimatione et institutioni requisitis.

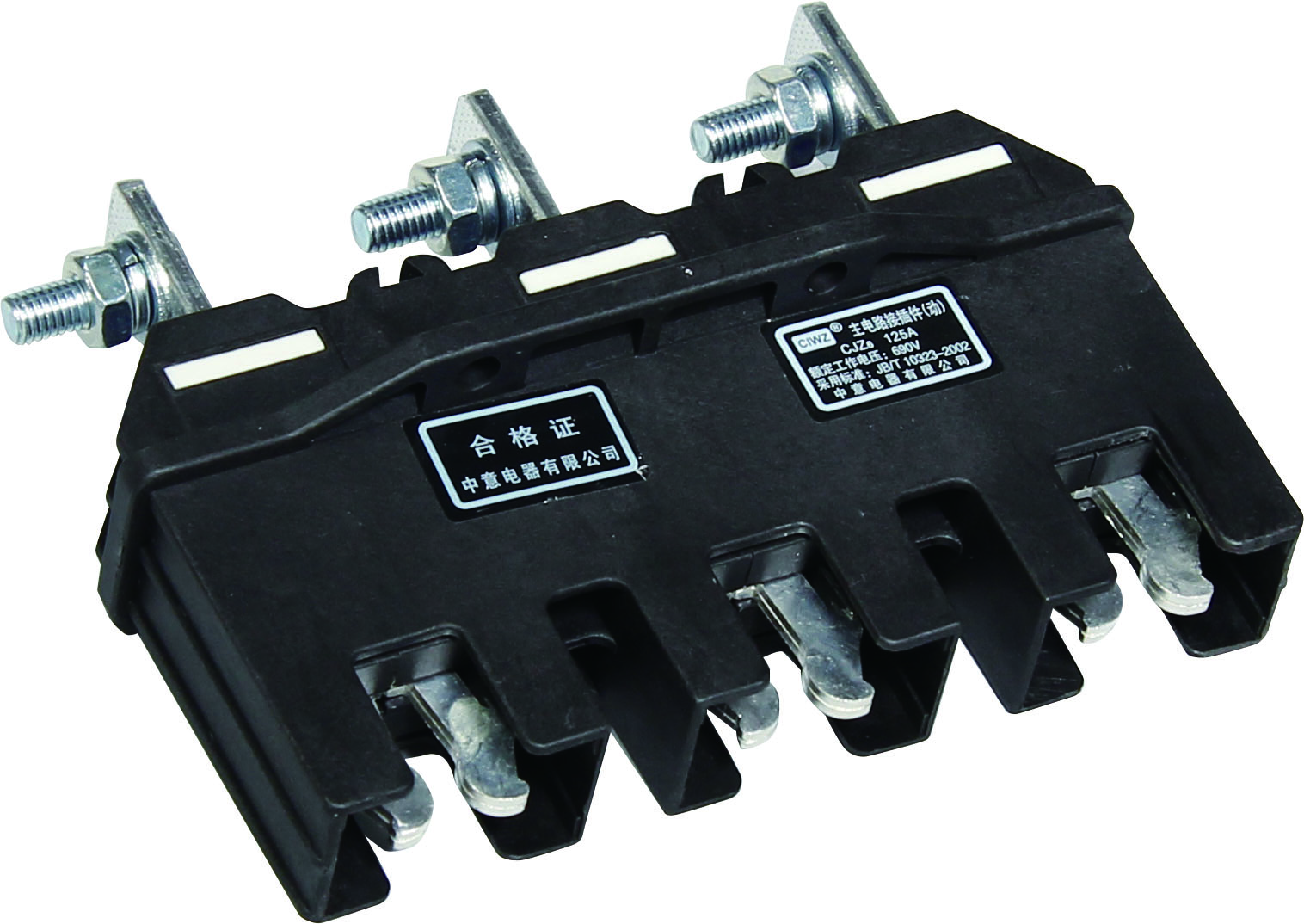

2.1.1 CJZ6 Series Main Circuit Connectors

    Series principalis circuli CJZ6 connexiones aptae sunt pro censu currenti ab 125A ad 630A, cum sequentibus notis:

• Ratum current: 125A, 250A, 400A, 630A
•  Ratum intentione: AC 660V
•  Pole numerus: 3 perticae, 4 perticae
• Praesidium genus: IP40 (with protective cover)
• Temperatus oritur: ≤60K (at vena aestimata)
• Materia: conductor aeris mixturae, concha plastica flammea retardans
• Applicantur switchgears: repositoria Latin ut MNS, GCS, GCK, OKKEN, BLOKSET, et 8PT

Model	Rated Current (A)	Pole Number	Praesidium Classis	Application varius
CJZ6-125A/3	125	3	IP40	Parva repositoria drawer
CJZ6-250A/3	250	3	IP40	Medium repositoria drawer
CJZ6-400A/3	400	3	IP40	Magna repositoria drawer
CJZ6-630A/3	630	3	IP40	Summus capacitas circuitus
CJZ6-125A/4	125	4	IP40	Tres tempus quattuor systemata filum
CJZ6-250A/4	250	4	IP40	Tres tempus quattuor systemata filum
CJZ6-400A/4	400	4	IP40	Tres tempus quattuor systemata filum
CJZ6-630A/4	630	4	IP40	Summus capacitas tres phase   quattuor systemata filum

2.1.2 CJZ10 Series Main Circuit Connectors

   Series principalis ambitus CJZ10 connexiones sunt producti magni effectus, missionibus idonei cum superioribus requisitis;

• Ratum current: 125A, 250A, 400A, 630A
• Ratum intentione: AC 660V
•  Pole numerus: 3 polos
• Praesidium genus: IP40 (with protective cover)
• Speciali consilio instructus IP40 tutela portae
• Operandi modum: Crank-genus operandi mechanism
• Applicantur switchgears: repositoria Latin ut MNS, GCS, GCK, OKKEN, BLOKSET, et 8PT

Model	Rated Current (A)	Pole Number	Praesidium Classis	Specialis functionis
CJZ10-125A/3	125	3	IP40	Cum tutela ianuam
CJZ10-250A/3	250	3	IP40	Cum tutela ianuam
CJZ10-400A/3	400	3	IP40	Cum tutela ianuam
CJZ10-630A/3	630	3	IP40	Cum tutela ianuam

2.1.3 CJZ11 Series Dual Connectors

   Series CJZ11 nexus duales sunt idonei ad missiones speciales quae connexionem duplicem requirunt;

• Ratum current: 250A, 400A, 630A
• Ratum intentione: AC 660V
•  Pole numerus: 3 polos
• Specialis consilium: Dual connectors with valvulae
• Applicantur switchgears: repositoria Latin ut MNS, GCS, GCK, OKKEN, LOKSET, 8PT

Model	Rated Current (A)	Pole Number	Feature
CJZ11-250A/3	250	3	Dual connexiones cum valuis
CJZ11-400A/3	400	3	Dual connexiones cum valuis
CJZ11-630A/3	630	3	Dual connexiones cum valuis

2.2 Circuitus Auxiliaris Connector Series

     Auxiliares circuii connexiones adhibentur ad nexum circuli secun- dum imperium, tutelam et functiones transmissionis insignes cognoscendas.

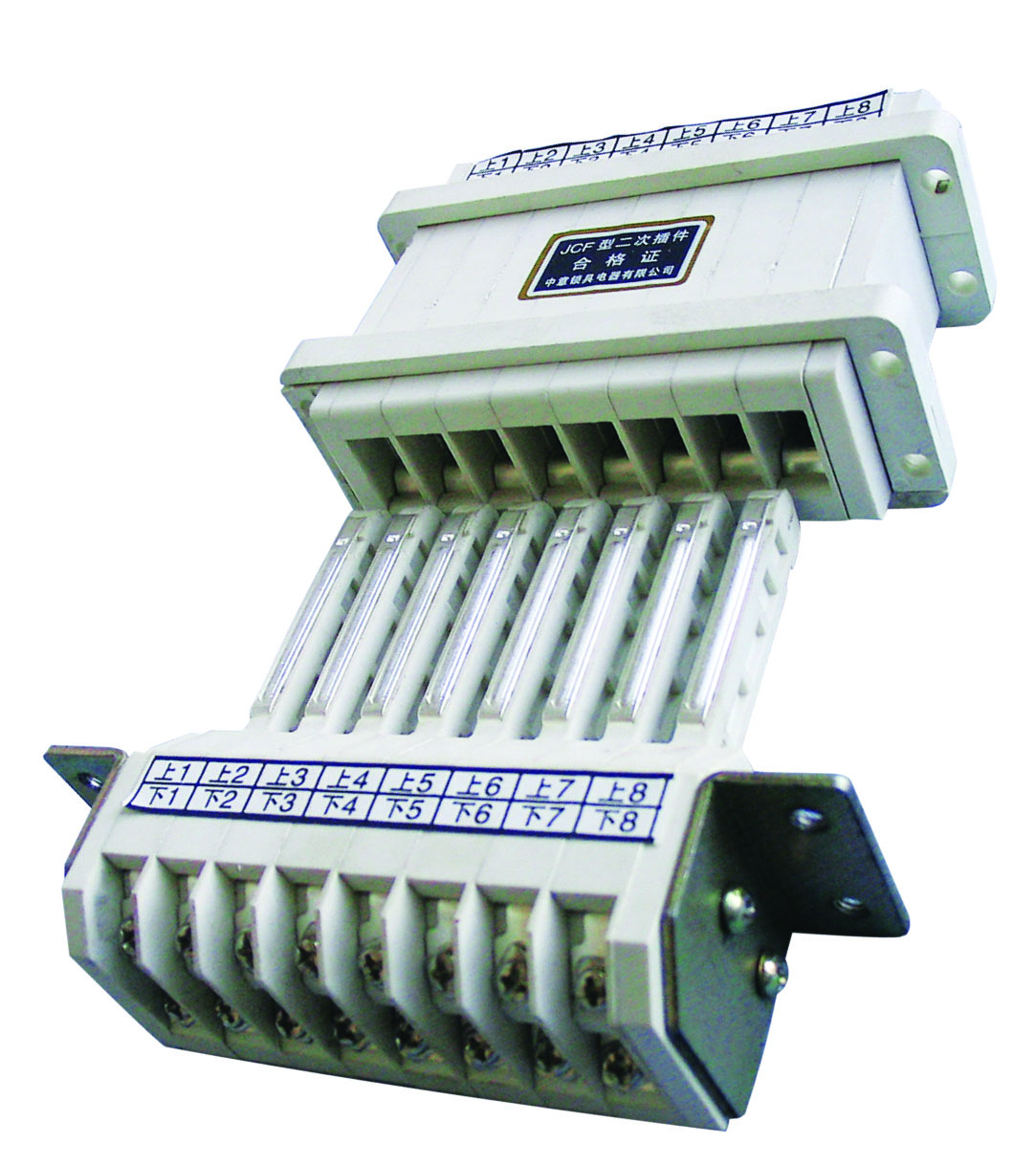

2.2.1 JCF10 Series Auxiliaris Circuit Connectors

   Series JCF10 circa connexiones auxiliares circulos sequentes notas habent:

• Ratum current: 10A
• Ratum intentione: AC 380V/DC 250V
• Notationes numerorum: 3, 5, 6, 8, 10, 13, 15, 16, 18 puncta
•  Connection modum: Plug-in type
• Materia: flamma plastica concha retardans, contactus argentum patella
• Applicantur permutationes: repositoria varia ut MNS, GCS, GCK, OKKEN;

Model	Numerus Contactus	Rated Current (A)	Rated Voltage (V)	Applicationem Scene
JCF10-10/3	3	10	AC 380/DC 250	Simple imperium circuitus
JCF10-10/5	5	10	AC 380/DC 250	Medium-comp lexity imperium
JCF10-10/6	6	10	AC 380/DC 250	Multi munus imperium
JCF10-10/8	8	10	AC 380/DC 250	Circuitus imperium universa
JCF10-10/10	10	10	AC 380/DC 250	Multi-munus signum tradendi
JCF10-10/13	13	10	AC 380/DC 250	Munera imperium extensum
JCF10-10/15	15	10	AC 380/DC 250	Signum complex systemata
JCF10-10/16	16	10	AC 380/DC 250	Summus integrati in potestate systemata
JCF10-10/18	18	10	AC 380/DC 250	systemata ultra-complicata potestate

2.2.2 Pars-Wiring Circuit Connectors Auxiliaris

   Circuitus auxiliaris lateralis wiring connexiones aptae sunt ad peculiares institutiones requisita quae nexu laterali indigent;

• Ratum current: 10A
• Ratum intentione: AC 380V/DC 250V
• Notorum numerus: 12, 16, 20, 24, 26, 30 puncta
• Connection modum: Side-wiring type
•  Applicantur switchgears: repositoria Latin ut MNS, GCS, GCK, OKKEN, BLOKSET, et 8PT

Model	Numerus Contactus	Rated Current (A)	Rated Voltage (V)	Feature
JCF2-6/12	12	10	AC 380/DC 250	Hinc-wiring
JCF2-8/16	16	10	AC 380/DC 250	Hinc-wiring
JCF2-10/20	20	10	AC 380/DC 250	Hinc-wiring
JCF2-12/24	24	10	AC 380/DC 250	Hinc-wiring
JCF2-13/26	26	10	AC 380/DC 250	Hinc-wiring
JCF2-15/30	30	10	AC 380/DC 250	Hinc-wiring

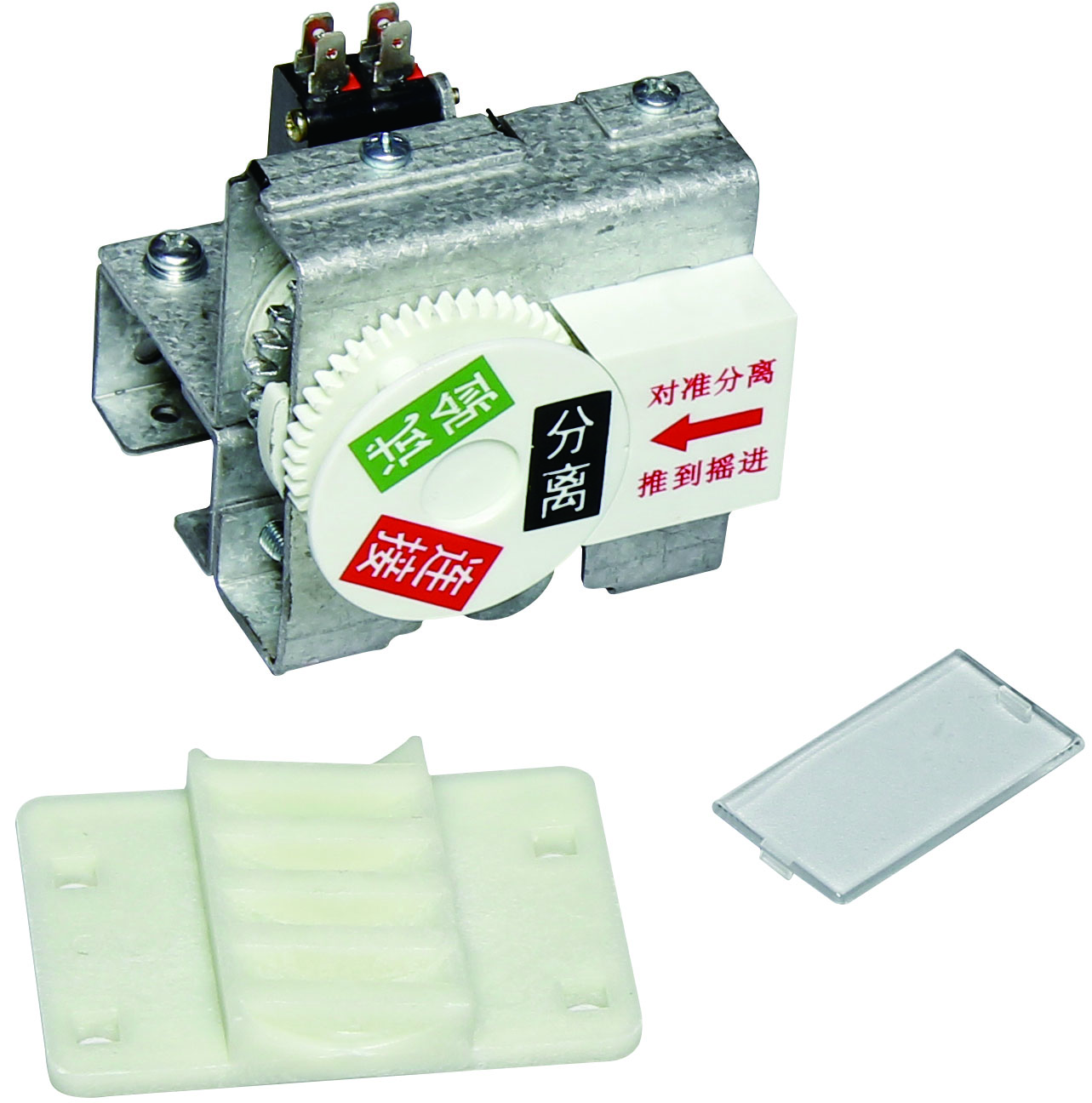

2.3 Operating Mechanismum Series

   Mechanismi operantes adhibentur ad impellendum, extrahendum, et obducendum perscriptorem specierum switchgears ad operandum tutam et firmam operationem.

2.3.1 MD Propulsio Mechanismus Series

   Md propulsio machinae aptae sunt ad unitatem magnitudinum diversarum perscriptorem;

• Rated current: Determinatur application
• Modus operandi: Propulsio Manualis
• Structural design: Sturdy and durable
• Applicantur switchgears: repositoria Latin ut MNS, GCS, GCK, OKKEN, BLOKSET, et 8PT

Model	Lorem Drawer Location	Feature
CXJG-9-69-8	Standard size	Propulsio mechanism
CXJG-9-82-8	Standard size	Propulsio mechanism
CXJG-9-82-10	Standard size	Propulsio mechanism
CXJG-9-119-8	Standard size	Propulsio mechanism
CXJG-9-119-10	Standard size	Propulsio mechanism
CXJG-9-145-10	Standard size	Propulsio mechanism

2.3.2 Manubrium Series

   Ansas adductius adhibentur ad conportantes operandi et positio:

• Materia: High-qualis chalybe
• Superficies curatio: Anti- corrosio curatio
• Applicantur switchgears: repositoria Latin ut MNS, GCS, GCK, OKKEN, BLOKSET, et 8PT

Model	Descriptio	Application varius
CXJG-9 Crank	adductius manubrio	Drawer operatio

2.3.3 F-Type manubrium Series

  F-genus auriculae aptae sunt ad unitates diversarum altitudinum perscriptorem;

• Materia: summus virtus plastica
•  Curatio superficiei: consilio lapsus Anti-
• Applicantur switchgears: repositoria Latin ut MNS, GCS, GCK, OKKEN, BLOKSET, et 8PT

Model	Descriptio	Altitudo Lorem Drawer
F2 L=65	F-genus manubrio	I-unitas drawer
F3 L=80	F-genus manubrio	II-unitas drawer
F4 L= 120	F-genus manubrio	III-unitas drawer

2.4 Busbar Support Series

   Subsidia busbarum adhibita sunt ad busbarum figendi et sustentandi ad stabilitatem nexuum electricae et roboris mechanicae curandae.

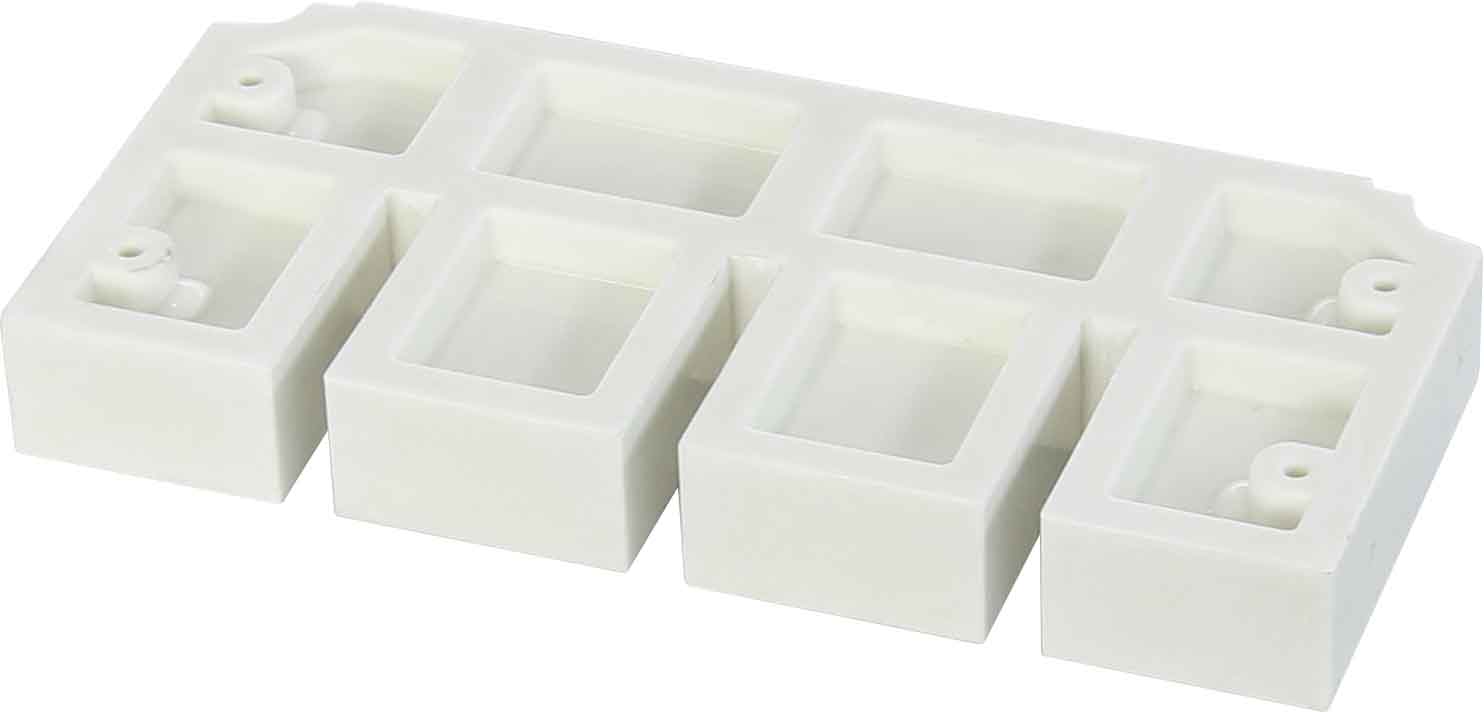

2.4.1 Vertical Busbar Support Series

   Adminicula verticalia busbar sequentia habent:

• Material: Summus vires insulating materia
• Ratum intentione: AC 660V
• Rated current: Determinatur busbar specifications
• Magnitudines busbaricae applicabiles: 6×30, 6×40, 6×50, 6×60, 6×80, 6×100, 6×120 mm.
• Applicantur switchgears: repositoria Latin ut MNS, GCS, GCK, OKKEN, BLOKSET, et 8PT

Model	Locum Busbar Location (mm)	Materia	lFeature
ZMJ3-6×30	6×30	Summus vires insulating materia	Vertical busbar firmamentum
ZMJ3-6×40	6×40	Summus vires insulating materia	Vertical busbar firmamentum
ZMJ3-6×50	6×50	Summus vires insulating materia	Vertical busbar firmamentum
ZMJ3-6×60	6×60	Summus vires insulating materia	Vertical busbar firmamentum
ZMJ3-6×80	6×80	Summus vires insulating materia	Vertical busbar firmamentum
ZMJ3-6×100	6×100	Summus vires insulating materia	Vertical busbar firmamentum
ZMJ3-6×120	6×120	Summus vires insulating materia	Vertical busbar firmamentum

2.5 Switchgear Accessorius Series

   Accessiones switchgear includunt cardines, portae seras, cancellos dirigunt, etc., quae integritatem structuram et commodum switchgears structuram in tuto collocant.

2.5.1 Porta Hinge Series

   Ianua cardo ad ostium tabulata connectens et rotando switchgear adhibentur:

•  Materia: High-qualis chalybe
• Superficies curatio: Anti- corrosio curatio
• Applicata portae tabulae altae: Diversa exemplaria apta sunt foribus tabulatis diversorum altitudinum
• Applicantur switchgears: repositoria Latin ut MNS, GCS, GCK, OKKEN, BLOKSET, et 8PT

Model	Descriptio	Application Scenas
MLBK 300516R	Porta Hinge 1	Tabulae portae Latin
MLBK 300517R	Porta Hinge 2	Tabulae portae Latin
MLBK 300518R	Porta Hinge 3	Tabulae portae Latin
MLBK 300519R	Porta Hinge 4	Tabulae portae Latin
MLBK 300522R	Porta Hinge	Tabulae portae Latin
MLBK 300523R	Porta Hinge	Tabulae portae Latin
MLBK 300525R	Porta sinistra Hinge	Tabulata portae alta (1m)
MLBK 300526R	Right Porta Hinge	Tabulata portae alta (1m)

2.5.2 Porta Lock Series

   Serae ianuae switchgears ad tutelam salutis adhibentur:

• Materia: High-qualis chalybe
• Superficies curatio: Anti- corrosio curatio
• Applicabilis switchgears: Latin switchgears ut MNS, GCS, GCK, OKKEN, BLOKSET, et 8PT

Model	Descriptio	Feature
MS705 H3	Porta Lock	Porta cincinno Latin
MS735	Porta Lock	Provectus ostium clausum

2.5.3 Guide Rail Series

   Dux cancelli usus est ad conportantes alendi et lapsus:

• Materia: High-qualis chalybe
• Superficies curatio: Anti- corrosio curatio
• Applicantur switchgears: repositoria Latin ut MNS, GCS, GCK, OKKEN, BLOKSET, et 8PT

Model	Descriptio	Application varius
Hanl 200022p1g	MNS Left Guide Rail - 420mm	Dux sinistram blasphemant
Hanl 200022p2g	MNS Right Guide Rail - 420mm	Ius dux rail

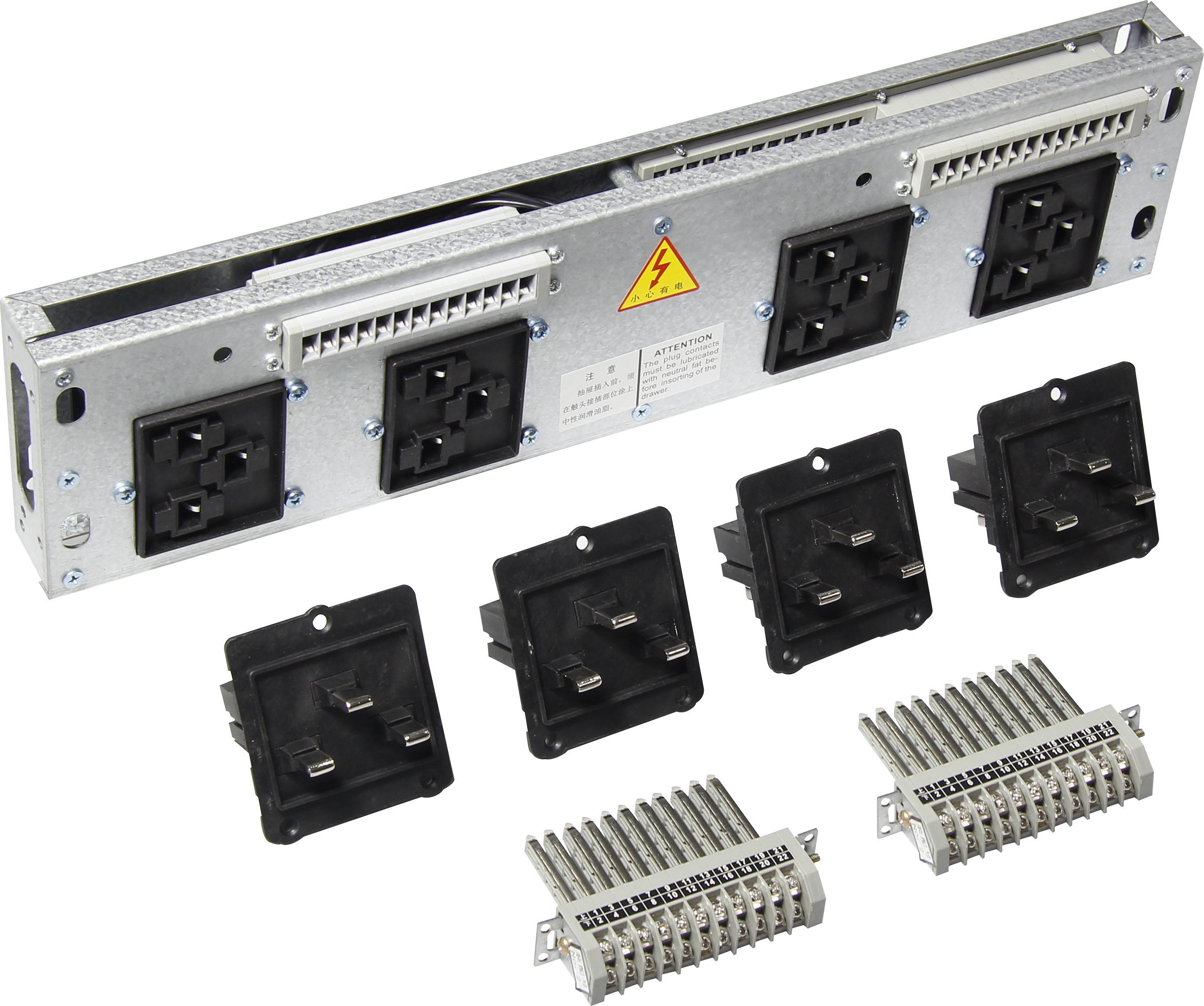

2.6 Power Distribution Adapter Series

   Potentiae distributio adaptors usus est ad ambitus ramorum applicandi et distribuendi ad flexibilitatem et amplitudinem switchgears emendandam.

2.6.1 1/4 Circuit Power Distribution Adaptors

   1/4 ambitus potentiae adaptatores distributionis aptae sunt ad ambitus rami inferioris capacitatis;

•  Rated current: Determinatur application
• Connection modum: Plug-in type
• Applicantur switchgears: repositoria Latin ut MNS, GCS, GCK, OKKEN, BLOKSET, et 8PT

Model	Descriptio	Application varius
175549-B-1/4-55S	1/4 Circuit Power Distributio Adapter	Rami humilis-facultatem
175549-B-1/4-55SC	1/4 Circuit Power Distributio Adapter (Side-wiring)	Rami capacitatis inferioris (side wiring)

2.6.2 1/2 Circuit Power Distribution adaptors

   1/2 in ambitu potentiae adaptatores distributionis mediae capacitatis ambitus rami congruentes sunt;

• Rated current: Determinatur application
•  Connection modum: Plug-in type
• Applicantur switchgears: repositoria Latin ut MNS, GCS, GCK, OKKEN, BLOKSET, et 8PT

Model	Descriptio	Application varius
175549-B-283-55S	1/2 Circuit Power Distribution adaptor	Rami capacitatis mediae
175549-B-283-55SC	1/2 Circuit PowerMedium-capacitas Distributio Adapter (Side-wiring)	rami (parte-wiring)

2.6.3 Mixta Power Distribution adaptors

   Virtus mixta distributio adaptors permittit ramos ambitus diversarum specificationum in eodem modulo esse:

• Rated current: Determinatur application
• Connection modum: Plug-in type
• Applicantur switchgears: repositoria Latin ut MNS, GCS, GCK, OKKEN, BLOKSET, et 8PT

Model	Descriptio	Feature
175×549-B - Mixtum - 55S	Mixta Power Distributio Adapter	Mixta cum multa specifications
175×549-B - Mixtum - 55SC	Mixta Power Distribution Adapter (Side-wiring)	Mixta cum pluribus speciebus (parte-wiring)

2.7 Mensurae et Propono Series

   Producta in serie mensurae et ostentationis adhibita ad vigilantiam et parametri electrica switchgears ostentantes.

2.7.1 Mensuratio Panel Series

    Tabulae mensurae adhibentur ad inaugurandi instrumentorum mensurae et partium moderatio;

• Materia: High-qualis chalybe
• Superficies curatio: Anti- corrosio curatio
• Applicantur switchgears: repositoria Latin ut MNS, GCS, GCK, OKKEN, BLOKSET, et 8PT

Model	Descriptio	Application varius
CFBK-5	Mensuratio Panel	0.75U altitudo
CFBK-9	1/4 Plastic Panel Strip	Mediocris mensura
CFBK-10	1/4 Panel Strip	Mediocris mensura
CFBK-9.1	1/4 Plastic Panel Strip	Mediocris mensura
CFBK-10.1	1/4 Metal Panel Strip	Mediocris mensura
CFBK-7	1/2 Plastic Panel Strip	Medium-amplitudo mensurae
CFBK-8	1/2 Metal Panel Strip	Medium-amplitudo mensurae
CFBK-7.1	1/2 Plastic Panel Strip	Medium-amplitudo mensurae
CFBK-8.1	1/2 Metal Panel Strip	Medium-amplitudo mensurae

2.8 Alia Accessories

   Praeter supra seriem principalem, Richge etiam varias alias accessiones praebet ut diversis necessitatibus utentium occurrant.

2.8.1 Purgamentum Fixator Series

    Flexilis fixatores adhibentur ad componentes electrica fixi et muniendi:

• Materia: High-qualis rubber
• Temperatus resistentiae range: -40℃ ad +85℃
• Applicantur switchgears: repositoria Latin ut MNS, GCS, GCK, OKKEN, BLOKSET, et 8PT

Model	Descriptio	Application varius
ZSQ-1	MD Purgamentum Fixator	Pars solidamentum

2.8.2 Aluminium Inferioris Rail Series

   Aluminium inferiores cancelli dux adhibentur ad tegimenta sustentanda et regenda;

• Materia: Aluminium alloy
• Superficies curatio: Anodization
• Applicantur switchgears: repositoria Latin ut MNS, GCS, GCK, OKKEN, BLOKSET, et 8PT

Model	Descriptio	Longitudo
XDG2-1	Aluminium Inferioris Rail	375mm

2.8.3 Shaft Series

   Emissiones adhibentur ad nexum et transmissionem;

•  Materia: High-qualis chalybe
•  Superficies curatio: Anti- corrosio curatio
• Applicantur switchgears: repositoria Latin ut MNS, GCS, GCK, OKKEN, BLOKSET, et 8PT

Model	Descriptio	Magnitudo
DXZ-3	SL - Guide Shaft	8×8L=150

III. Product Selection Guide

3.1 Electio Main Circuit Connectors

   Factores sequentes considerari debent, cum connexiones principales eligunt:

• Praesens Ratum est: Elige convenientem aestimationem currentis campi fundatam in maximo currenti circumductionis operanti.
• Numerus poli: Elige 3 vectes vel 4 vectes secundum systema requisita.
• Methodus institutionis: Elige modum aptam institutionis in structura switchgear fundatam.
• Praesidium genus: Elige genus tutelae conveniens secundum applicationem environment.

3.2 Electio Circuitus Auxiliaris Connectors

   Factores sequentes considerari debent, cum iunctis auxiliaribus seligendis;

•  Numerus notorum: Elige congruum numerum notorum secundum multiplicitatem circumscriptionis ditionis.
• Aestimavit intentionem/currentis: elige congruentem valorem aestimatum secundum ambitum circuli secundi.
• Connexio methodi: Lego obturaculum-in typo vel parte wiring typus fundatur in positione institutionis.
• Praesidium genus: Elige genus tutelae conveniens secundum applicationem environment.

3.3 Electio Mechanismi operating

   Factores sequentes considerari debent cum eligendi machinationes operatrices:

•  Magnitudine drawer: Elige aptam mechanismum operantem secundum perscriptorem altitudinis.
• Modus operationis: Elige manualem vel electricam operationem secundum habitus usorum.
• Condiciones environmentales: Elige genus tutelae conveniens secundum applicationem environment.

3.4 Electio Busbar subsidia

   Quae sequuntur considerari debent cum subsidiis busbarum eligendo:

• Magnitudo Busbarica: Elige opportunum subsidium secundum specificationes busbaricae.
• Methodus institutionis: Elige modum aptam institutionis in structura switchgear fundatam.
• Ratum voltage: Elige convenientem aestimationem voltage campester secundum systema intentionis.

IV. Signa technica et certificaciones

   Humilis voltatio switchgear accessoriis Richge stricte obtemperet cum sequentibus signis et specificationibus:

• GB/T 7251.1-2013 Low-Voltage Switchgear and Controlgear - Part 1: Type-Exerted and Partialiter Typus Exertus Conventibus
•  GB/T 7251.5-2011 Low-Voltage Switchgear and Controlgear - Part 5: Special Requirements for Convents for Power Distribution in Public Networks
• IEC 61439-1 Low-Voltage Switchgear and Controlgear - Part 1: Regulae Generales
• IEC 61439-2 Low-Voltage Switchgear and Controlgear - Part II: Power Switchgear and Controlgear Conventibus
• Aliae industriae signa et specificationes pertinentes

V. Product Commoda et Application Missiones

5.1 Product Commoda

   De humili intentione switchgear accessiones Richgae sequentia commoda habent:

• Qualitas princeps: Adoptio materiae qualitas summus et processuum fabricandi provectus ad certas producti qualitates curandas.
• Modulare consilium: Facilitates institutionem, sustentationem, et upgrading, ac ratio gratuita minuit.
• Fortis compatibilitas: Compatible cum low-voltage switchgears of multiple brands to improve system flexibility.
•  Consilium innovativum: Continuo novas productas et solutiones ad forum obviam mittentes deductis.
• Productum comprehensivum range: Plus quam 1,000 productum genera varias applicationes missionum tegunt.

5.2 Application missiones

   Demissa intentione switchgear accessiones Richgeae late in sequentibus agris adhibentur:

• Systema potestatis: Substantiae, statio distributio, stationes transibit, etc.
• Automatio industrialis: Factory automation systemata imperium, apparatum linea productio, etc.
• Aedificare electrica engineering: Commerciales aedificia, aedificia residentiales, facultates publicas, etc.
• Infrastructure: Subvectio axium, aquae conservativa facultas, machinatio municipalis, etc.
•  Ambitus speciales: fodina, agri oleum, industria chemica, ambitus marinus, etc.

VI. Vias ad obtinendam Product Manuale

   Ad manualem uberem singularem obtinendum accessiones humilis-intentionis switchgear Richge, sequentibus modis uti potes:

• Visita societatis rutrum: Log in officiali Richge (https://www.richgeswitchgear.com/) et manuales productum in technicis subsidiis vel download sectione media inveniant.
• Contact venditio department: Contact venditiones department per contactum informationes provisum est in rutrum ad obtinendum productos manuales.
• Mitte inscriptionem: Mitte electronicam ad sales@switchgearcn.net, nomen et exemplar operis manualis inquisiti exprimens.
• Online consultationem: Utere consultatione online munus in rutrum ad ponendum pro manualibus productis.

VII. Summary

    Pro fabrica professionalis accessiones humilis-voltages switchgear, Richge praebet range productos comprehensivos, connexiones ambitus principales obtegens, nexus ambitus auxiliares, mechanismos operans, subsidia busbarum, potentia adaptatores distributionis, mensurae et seriem ostentationis, et alias series, cum pluribus quam 1,000 genera productorum. Haec producta habent commoda optimae qualitatis, consilium modularis et convenientiae fortis, et late sunt in systematibus virtutis, automation industriae, aedificationis electricae machinalis, et in aliis agris.

   Eligendo humilem voltationem switchgear accessiones Richgei non solum aditum ad qualitatem productorum praebet, sed etiam technicam technicam sustentationem et comprehensivam post venditionesque operas praebet, firmum praesidium pro tua potestate systematis praebens.

   Pro plus productum informationes, quaeso visita rutrum Richge scriptorem vel nostram venditionem attingere.
