CRB1 / CRB2 Series Vane Type Gyratorius Actuator

CRB1 / CRB2 Series Vane Type Gyratorius Actuator (SOLH convertibilis)

Brand: SOLH by Richge Technology

Product Positioning & Series Core Differentia

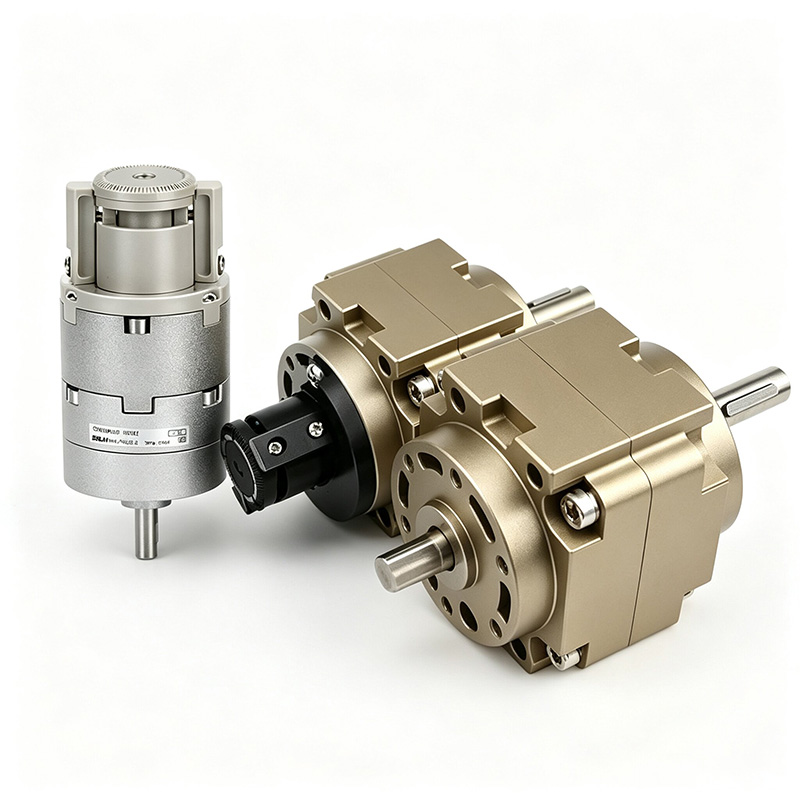

     SOLH CRB1 et CRB2 sunt vane-typus adductius gyratorii cylindrici ab uno/duplici vanes acti. Sine calces meshing alvi, corpus ultra-pactum plumant, humilem inertiam gyratorius et responsionem ultra-celeriter.

     -- CRB2 (Small Series): Bore 10~ 40mm ad pondus leve & spatium angustum, consilio leve compactum

     -- CRB1 (Large Series): Bore 50~ 100mm pro onere gravi & alto torque, fulcimen sustinens cum resistentia superiori ictum.

     Singulus vane max cuspis angulus usque ad 270°/280°, duplex vane max 90°/100°. Late usus est pro celeriter gyratorius flipping, indexing et statio automationis positio.

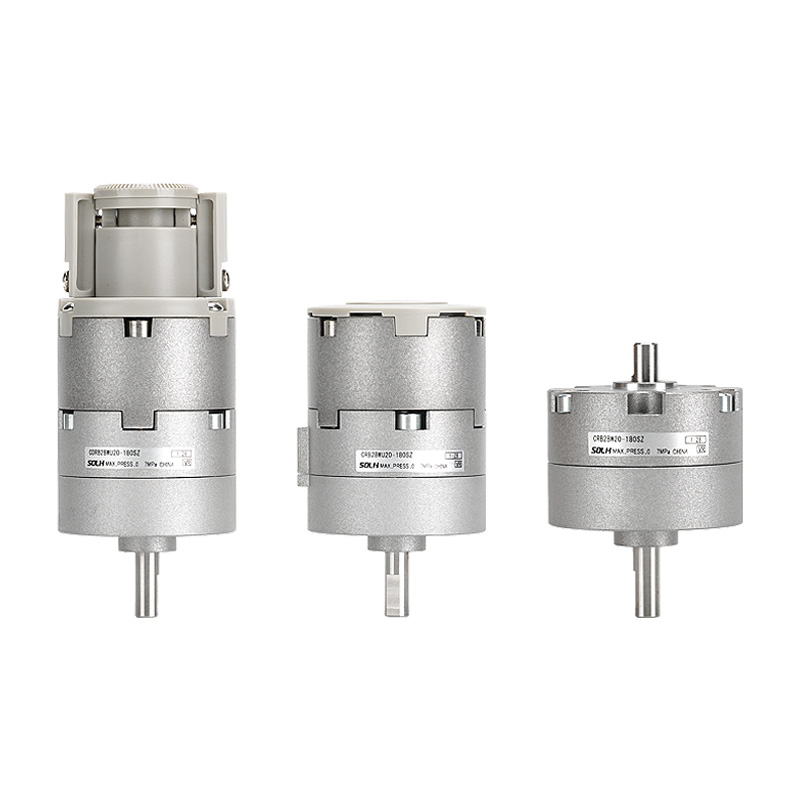

  1. CRB2 Small Latin Series

     -- Bore sizes: 10, 15, 20, 30, 40mm

     -- Vane options: S una vane / D duplex vane

     -- Swing angle: Single vane 90°/180°/70°; Duplex vane 90°/100°

     -- Core merita: Ultra compacta, leve, pressum satus, latus/axialis dualis portans, angulus libitum adjuster & magneticus switch

     -- Applications: leve onus summus velocitatis rotationis, apparatum spatii angustiorum, 3C electronicarum, packaging, automatio minima.

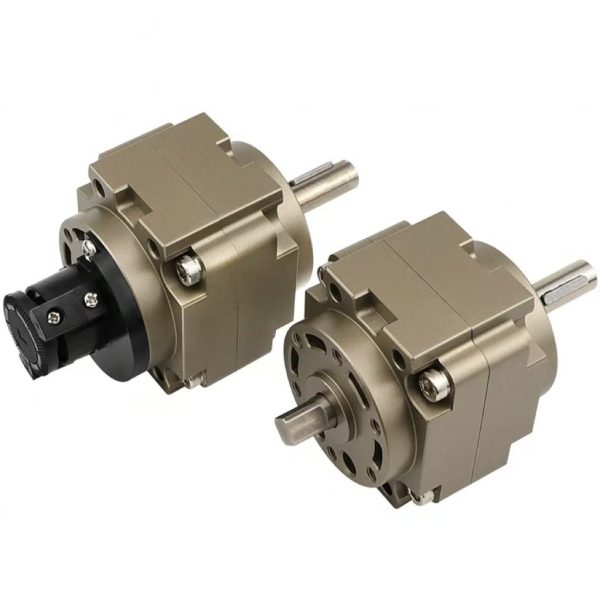

  2. CRB1 Magnae Gravis Officii Series

     -- Bore moles: 50, 63, 80, 100mm .

     -- Vane options: S una vane / D duplex vane

     -- Swing angle: Single vane 90°/180°/270°/280°; Duplex vane 90°/100°

     -- Core merits: High output Aureus, onus grave portans, fulmen sustinens, offensus obsistens, longus servitus rest

     -- Applications: Gravis workpiece flipping, magna-scala indexing, adfixa rotaria gravia, magnae industriae conventus lineae

Universal Core Technical Specifications

  1. General Standard Parameters

  2. Theoretical Output Torque @ 0.5MPa (Core Electio Index)

   2.1 CRB2 Torque Table

   2.2 CRB1 Torque Table

 III licita aculeis & Axial Lond Reference

     -- CRB2-20: Radialis 120N, Axial 80N

     -- CRB1-50: radialis 245N, Axial 196N

     -- CRB1-100: Radialis 588N, Axial 490N

Internum Structure & Vane Opus Principium

  1. Praecipua: corpus cylindricum, unum/duplex gyratorium vane, telum output, conventus obsignatio, finis rubber quiddam, angulus temperatio fulmina

  2. Logica operans: Aer compressus cubiculum unum intrat ad ventilandum vane ad rotandum circa medium scapi dum oppositum conclave exhaurit.

     -- Double vane: Torque duplicatus, strictus adductius angulus ≤100°

     -- Single vane: Latius adductius range usque ad CCLXX°

  3. Unique Core Commoda

     -- Nulla calces & eculei compages, nulla backlash, rotatio tacita lenis sine vibratione ictum

     -- Ultra adumbrationem compactam, inertiam rotariam humilem, responsio ultra ieiunium (90° rotationis <0.1s)

    -- Libitum cavum per hastile , commodum internum Tubing & wiring routing

     -- Dual fine-tune fulmina pro ictu limitis; una vane adjustable 0 ~ 270°, duplex vane 0~ 90°

Complete Model Coding Rules

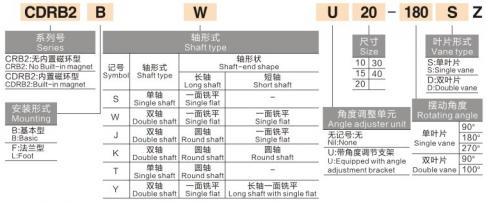

  1. CRB2 Exemplar Exemplum: CRB2BW20-180SZ

     -- CRB2 = Series gyratoria gyratoria parva

     -- B = Basic LABIUM montem; L = bracket pedites

     -- W = Duplex telum extensum; blank = Single hastile

     -- 20 = Bore size (10/15/20/30/40)

     -- 180 = angulus adductus (90/180/270)

     -- S = Single vane; D = Geminus vane

     -- Z = temperatio angulo instructus unitas; blank = vexillum sine adjuster

          Praefixum CDRB2 = inaedificata anulum magneticum pro magnetico switch institutionem

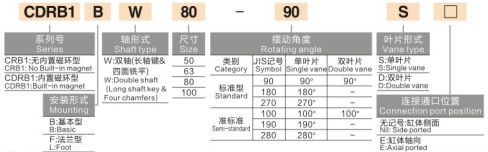

  2. CRB1 Exemplar Exemplum: CRB1BW50-90D

     -- CRB1 = series gyratoria vane officiosa gravis

     -- B = Mons Basic; W = Geminus hastile

     -- 50 = Bore size (50/63/80/100)

     -- 90 = angulus adductus (90/180/270/280)

     -- D = Geminus vane; S = Single vane

        Praefixum CDRB1 = anulus magneticus integratus exemplar

GRADATUS Electio Guide & Industrial Applications

  1. Electio prioritatem Rules

     -- Torque & dimensio split: leve pondus angustum spatium → CRB2 (10~40); Gravis princeps torques gyrationis → CRB1 (50 ~ 100)

     -- Angulus adductius postulationis: Rotatio super 90° → Unius vane S; Max Aureus in XC° → Duplex vane D

     -- Precision & velocitas commercii: Vane genus nulla backlash, repetere situm ±0.1°, specimen pro velocitate levis officii; Gravis summus praecisio portans onus praeferre MSQ eculeo gyratorii mensae

     - Function options: Finis angulus modus necessarius - eligere que Z angulus accommodare unitas; PLC situ feedback requiritur - elige CDRB magneticum integratum exemplar

  2. Typicam Application missiones

     -- Levis-officium lineae: Electronic component flipping, pittacium rotating, lagena pileum constringens, minima materia diribitio

     -- Stationes gravis officiorum: Large workpiece 90°/180° turnover, conventus linea index

     -- Industries generales: Packaging, excudendi, cibi processus plenus statio gyratoria latae

Effectus comparationis: CRB Vane VS MSQ Rack & Pinion Gyratorius Actuator

una sententia

     SummarySOLH CRB2 munusculum leve ac CRB1 grave officium vane-typus in gyratorio actuatores nulla-backlash unum/duplum vane coegi cum angulo libitum compositore et magnetico permutatione variantes CDRB, featuring celeriter humilem inertiam gyrationis ab 0.05~24N·m torques, perfectus pro summa velocitate flipping, indexing et gyratorium involucrum et electronicarum electronicarum electronicarum.
