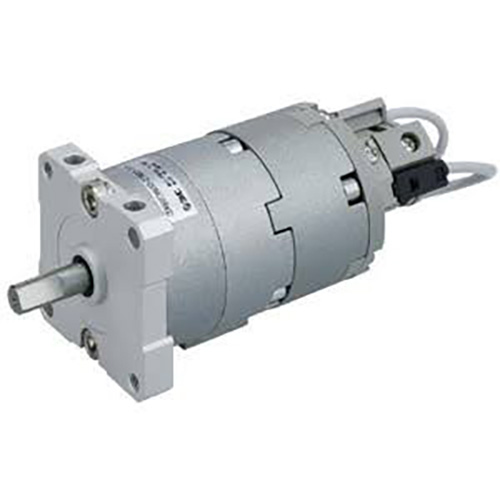

CRBU2 Series Free Mount Vane Type Gyratorius Actuator

Brand: SOLH by Richge Technology

Product Positioning & Core Structural Features

     SOLH CRBU2 series minium vane-typus gyratorius adductius cylindrici designatus est ad statios rotarias praecisionem spatii limitatam, ad multifariam escendentem liberam, ultra tenue corpus leve, nulla calces backlash et angulum latum adductius. Praetulit magnitudinum praesto: 10/15/20/30/40, cum singulis optionibus vanis duplicibus occurrendum exigentiis levis oneris in gyratorio flipping.

 1. Caput Design volutpat

     -- Vane directus coegi (S una vane / D vane duplex): Nulla transmissio calces, nulla backlash, rotatio lenis et ultra-praecisa positione

     -- Plena adumbratum cylindricum adscendens liberum: cacumen imum/sinistra/dextrum/axiale montanum sine uncis ascendentibus extra; XII% levius quam CRB2 densa apparatu pro denso pacto

     | Duplex vane 90°/100°, max una vane adductius usque ad 270°

     -- Dual tubing layout: Standard latus portum (non suffix) / portum axialem (suffixis E) ad diversas rationes excitandas pipeline aequare

     -- Expandable functionis moduli: Optionalis W angulus commensuratio unitas & constructa-in anulo magnetico ad institutionem switch magneticam; non exserta radialis partes servare arcae spatium

     -- Premium low-leakage obsignationis systema: Speciale compositum sigillum cum constructo-in sistendo sistendo, lacus internus ultra-low, oleum liberum operationem aptam ad ambitus productionis mundis.

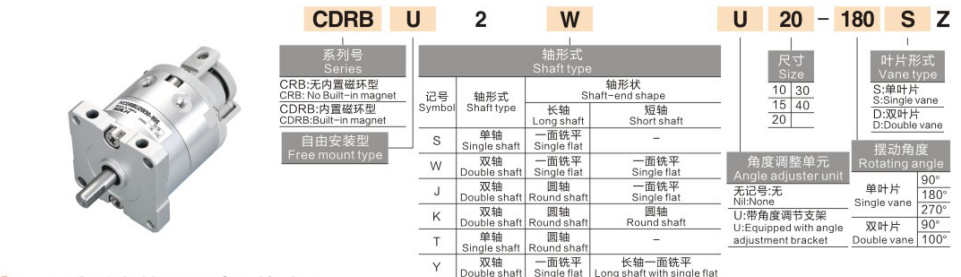

Nomen completum Model Regula

  1. Exemplar Exemplum: CRBU2WU20-180SE-M9BW

 2. Exempla Latin Order Reference

     -- Standard single vane side port: CRBU2-20-180S

     -- Cum angulo accommodare + duplici vane: CRBU2W30-90D

     -- Portus axialis + magneticus switch: CRBU2-15-270SE-M9B

Standard Universal Specifications Technical (Test Pressure: 0.5MPa)

  1. euismod laoreet condimentum

     -- Pressura operans range: Size 10/15: 0.2~0.7MPa; Magnitudo 20/30/40: 0.15~1.0MPa

     -- Ambiens temperatus operating: 5 ~ 60℃ (non vico intra aeris limbis)

     -- Angularis repeat positioning accurate: ±0.01°, nulla gyratio stabilis backlash

     -- Inaedificata quiddam: Nemo; externum inpulsa absorber configurable seorsum

     -- Licitus impulsum in motu energiae: 0.00015 ~ 0.04J (proportio auget cum magnitudine boreali)

     - Lubricatio postulationem: Factory pre-ungendis oleum liberum design

  2. Theoretical Output Torque Table (Unit: N·m @0.5MPa)

  3. Pondus & Super Dimensione Reference (CLXXX ° specificationem)

Core Aliquam Commoda

  1. Multi-directionem liberum adscendens servat spatium

     -- Corpus glabrum cylindricum per cochleis in quavis superficie sine uncis figi potest; 12% corpus levius, optima electio pro valde compacto compaginatorum instrumentorum integratorum

  2. Nulla backlash ultra accuratam positioning angularis

     -- Direct vane coegi eliminat calces meshing alvi, rotationis ultra-lenis cum ± 0.01° accurate repetere accurate ad angulum statio moderandi strictam praecisionem.

  3. Lata adjustable adductius range ad libitum subsisto unitas

     -- Single vane maximum 270° adductius; W angulus modulus accommoda- bilis dat in infinitum aptabile ictum 0~240°, opportunum angulus multi-statio-tuning

  4. Double vane delivers duplicata torque sub eadem forma

     - Eadem dimensio externa, D vane duplex exemplar praebet bis torques ex S unius vane ad tractandum in gyratorio onere superiore

  5. Longum servitium vitae, oleum liberum structuram signantes

     - Humilis frictio composita signatio, servitium vitae super 5 decies centena milia cyclorum mutandi, compatibile cum officina ordinaria et linearum productione pulvis liberorum mundarum.

Adscendens Methodi & Typical Industrial Applications

  1. Duo Main Adscendens species

     -- Corpus directum ascendens: Cochleas claude omnem superficiem cylindricam, axialem/radialem institutionem factibilis, disassembly celeriter & subrogetur

     -- Auxiliaris planae laminae compositae adscendens: Pone vel perpendiculariter vel perpendiculariter per conscendens laminam, specimen pro robot finis effectoris, armorum lateris & culmen absconditi institutionis.

  2. Typicam Application missiones

     -- 3C Electronics Automatio: Mini componentis flipping, camera gyratorium situm, angulum mutandi, stationem inspectionem gyratorium indexing

     -- Subtilitas Conventus Lineae: Screw constringens mechanismum gyratorium, angulus crimp terminalis temperatio, lux workpiece CLXXX ° turnover

     -- Packaging Machinery: rotatio materialis circumvenientia, titulus applicans angulum subtiliter-tuning, brevis plaga in gyratorio pascens.

     -- General Automation Equipment: Equipment ostium in gyratorio switch, productio stationis mutandi, summus frequentia levis, onus reciprocus gyrationis

Electio Comparison: CRBU2 Free Mount VS CRB2 Standard Mount Gyrator Actuator

III-Step Fast Electio Guide

  1. Bore magnitudine lectio secundum Aureus onus

     -- Adice actuales torques operandi, exemplar selectum cum 50% torques margine salutis:

     -- 10 ≤0.13N·m / 15 ≤0.33N·m / 20 ≤0.82N·m / 30 ≤2.06N·m / 40 ≤3.92N·m

  2. Vane genus lectio

     -- Lux humilis torques onus → S uno vane; Altum grave gyrum → D vane duplex (duplex torque output)

  3. configurationis matching

     -- Angulus subtilis-tuning requiritur: suffixo W angulus addere commensurationem unitatis (0~ 240° infinite adjustable)

     - PLC loco signo feedback: Equip M9B/M9BW magneticam switch ad deprehendere duos directionem gyratorius terminus

     -- Pipeline routing demand: Blank pro vexillum latus portus, suffixo E pro axiali centrali aeri porti

Una sententia Summarium

     SOLH CRBU2 liberum montem vane rotundi rotundi linearum bracket liberae institutionis arbitrariae, nulla backlash ±0.01° praecisio, dualis optiones singulae/duplices vane torques et latus/axialis porti aeris layout, cum ad libitum W angulus compositor et M9BW switch magneticus, leve pacto solutionis 3C, praecisio conventus et sarcina levis oneris gyratorii stationes flippinges.
