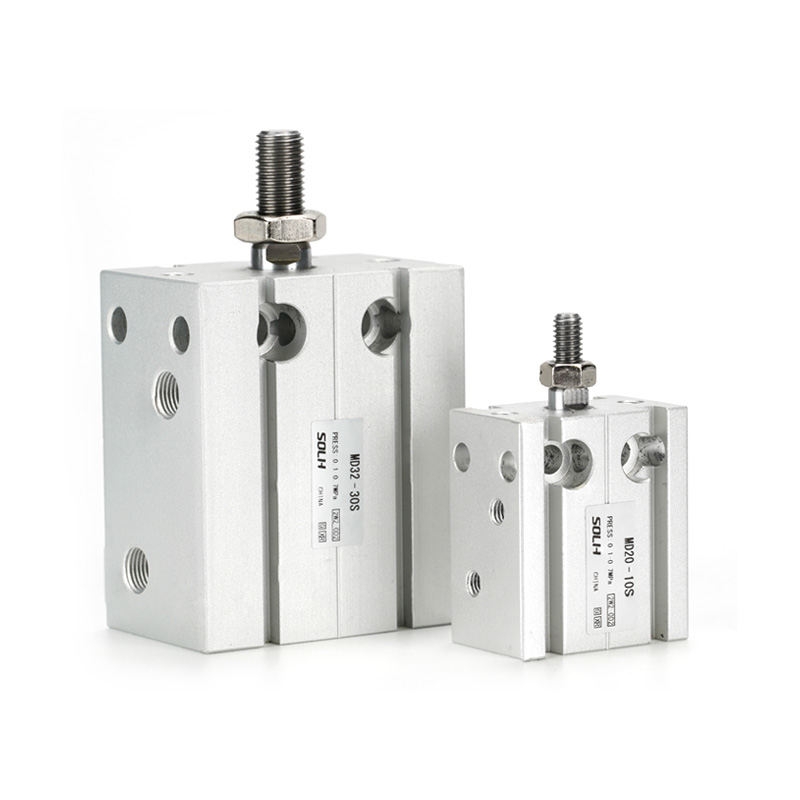

SOLH MD series vexillum multi- positio est liberae cylindrici parvae ascendentis cum foraminibus plenus-circuli ascendentibus, figurae truncorum ultra tenuis et facultati-anguli institutionis arbitrariae. Destinatum ad apparatum angustum angustum spatii, altum densitas layout ac leve pondus ejectio intermissa & opera positionis.
5 completa sub-exemplaria singula / duplex virga, una / duplex agens, fixum / accommodata plaga postulat:
-- MD: Una virga duplex agens (vexillum universale genus)
-- MSD: Single rod single agens (ver extend out)
-- MTD : Single rod single agens .
-- MDD: Duplex virga duplex agens (anti-torsio nulla rotatio)
-- MDJ: Duplex virga duplex agens cum tergo adjustable ictum
|
Parameter Item |
Full Specification Details |
| Standard Bore Sizes (mm) |
6, 10, 16, 20, 25, 32; |
| Standard Stroke Longitudines (mm) |
5, 10, 15, 20, 25, 30, 40, 50, 60; |
| Operatio Modus |
Duplex agens: MD / MDD / MDJSingle agens: MSD / MTD |
| Operans Impetus dolor |
Duplex agens: 0.1 ~ 1.0 MPa/Singula agendi: 0.2 ~ 1.0 MPa |
| Ruptis Probatur Test Pressura |
1.5 MPa |
| Ambiens Operating Temperature |
-20℃ ~ + 70℃ (glacies intra aeris pipeline) |
| Piston Volo dolor |
Duplex agens: 30 ~ 500 mm/s Singula agendi: 50 ~ 500 mm/s |
| Air Portus Thread |
Bore 6/10: M5×0.8 Bore 16/20/25/32: PT1/8 |
| Magnetic Annuli Option |
S suffixo = in magnete permanenti constructo, compatibilis cum positione magnetica CMSH / DMSH virgas |
1. Plena VI-partem multi-situ ascendens
Foramina varia leviter distributa in anteriora, tergo, sinistra, dextra, suprema et ima corporis cylindrici; figi potest in plano & quolibet angulo. Plures cylindrici iuxta ordinem parallelum maximizat arcae spatii utendo.
2. Ultra tenuis obstructionum leve corpus
-- 30%~50% muri tenuior crassities quam vexillum rotundum corporis cylindrici, corpus leve aluminium offensionis corporis ad miniaturizandam mechanismum designandum.
3. sui lubrica ANCON adferentem
-- Integrated low-friction self-libricating bushing on ancon, oil-free operation, long service life and stabilis smooth motion.
4. Standard magneticam switch adscendens striatus
-- striatus trapezoidalis dedicatus labium utrinque corporis cylindrici; facilis conventus, disassembly et positio variatio calami magnetici permutat sine uncis extra.
5 inaedificata fronte rubber quiddam codex
-- Integratum quiddam ad virgae finem vibrationis impulsum concipit, strepitum operantem minuit, ac parvas adfixa adfixa & operas custodit.
6. Expandable virga duplex & apta plaga variantes
-- MDD virga duplex: Fortis anti-torsio perficiendi, nulla in gyratorio deflexio, stabilis linearis sub onere latus ducens.
-- MDJ ictum adaptabile: Cochleae tine-tuning pro ictu limitis tionibus, flexibilis pro variabili positione longitudinis requisita

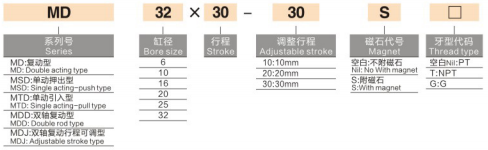

1. Exemplar I: Latin una virga duplex agendi MD16×30S
-- MD = Series Codicis, virga unica cylindri compacti duplex
-- 16 = Bore diameter (mm)
-- 30 = Basic ictum longitudinis (mm)
-- S = inaedificata in anulo magnetico (blank = non magnete)
2.Exemplar 2: Adjustable duplex virga MDJ20×20-10S
-- MDJ = Duplex virga duplex agens cum postico ictu temperatio
-- 20 = Bore size (mm)
-- 20 = Ictum basi fixa
-- 10 = Novifacta extra ictum (Total travel = 20 + 10 = 30mm)
-- S = inaedificata magnetico anulo ad libitum suffixo
| Bore (mm) |
Piston Area (mm²) |
0.2MPa |
0.4MPa |
0.6MPa |
0.7MPa |
1.0MPa |
|
6 |
28.3 |
5.7 |
11.3 |
17.0 |
19.8 |
28.3 |
|
10 |
78.5 |
15.7 |
31.4 |
47.1 |
54.9 |
78.5 |
|
16 |
201.1 |
40.2 |
80.4 |
120.7 |
140.8 |
201.1 |
|
20 |
314.2 |
62.8 |
125.7 |
188.5 |
219.9 |
314.2 |
|
25 |
490.9 |
98.2 |
196.4 |
294.5 |
343.6 |
490.9 |
|
32 |
804.2 |
160.8 |
321.7 |
482.5 |
562.9 |
804.2 |
1. Core Electio Judicium Rules
-- Tractus restrictio prioritatis: Cavititas institutionis angusta, layout densus, multi-angulus ascendens postulatio → Elige MD series clausurae cylindrici compacti
-- Load condition proteging : Pure axial leve onus without side deflexion → Standard MD una virga ; Latus torsio / offset parte onus existit → MDD duplex virga anti-gyrationis exemplar
-- Plaga temperatio postulatur: Varius positus peregrinationis necessitates fine limite → MDJ ictum aptabile duplici virga variante
-- Positio signum feedback: Add suffixo S cum CMSH/DMSH magneticum transitum ad PLC ictum deprehensio
2. Typical Industrial Application missiones
-- 3C & Semiconductor Automation: Mini fixture clamping, materia impulsus, componentis crimping, statio accurata positio
-- General Automated Equipment: Workpiece interclusio, statio mutandi, parvae machinationes reciprocae lineares
- Domus Appliance & Hardware Conventus: Particulam torcularis apta, ligatura frangentium, gluten microform dispensans
-- Packaging & Food Machinery: leve-onus materiale importans, productum clamping, automatic genus separationis
SOLH MD multi- directio liberi montis compacti cylindrici opercula singula/dupla virga, una/duplex agens et aptabilis plaga MDJ variantes cum 6-lateribus foraminibus ascendentibus plenis, constructo-in quiddam et anulum magneticum ad libitum, ultra tenuem leve consilium specimen pro levi onere clampingis, ejiciendi et positionis in 3C, semiconductore, fasciculo ac mini automationis instrumento.
