Brand: SOLH by Richge Technology

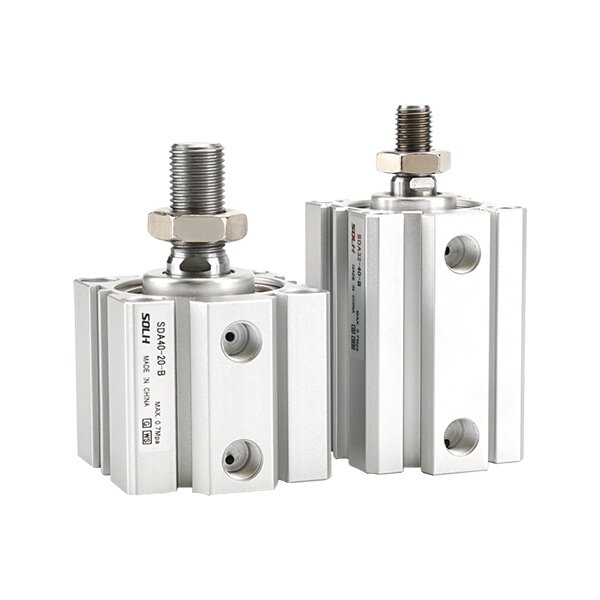

SOLH SDA series quadrata ultra cylindricum compactum tenue, actus oeconomici pacti classici. Corpus longitudinis tantum 1/2~1/3 mensurae ligaturae virgae cylindrici. Ascensus dimensio convertibilis cum serie Airtac ACQ et SMC CQ2. Apta ad brevem-plaga impellendi, clamiendi et positio sub spatium institutionis circumscriptae, late in 3C automatariis, machinae sarcinae et instrumento fixturae.
-- Corpus aluminii ultra-tenuis quadrangulum, sustenta institutionem infixa ad spatium conservandum;
-- Anodized dolium durum, chroma patella anconium, obsistens & anti-corrosio;
-- Plena variantes: duplex agens, una fons reditus, virga gemina, plaga aptabilis, versio magnetis ornata;
-- Inaedificata Flexilis bumpers in utraque extremitate pro impetu effusio & strepitu reductionis;
- Humilis frictio sigillum bidirectionale cum adipe repositione, oleo libero diuturno vitae inserviente;
-- Striatus sensorem circumdedit pro flexibili auto- magnetico switch institutionem.

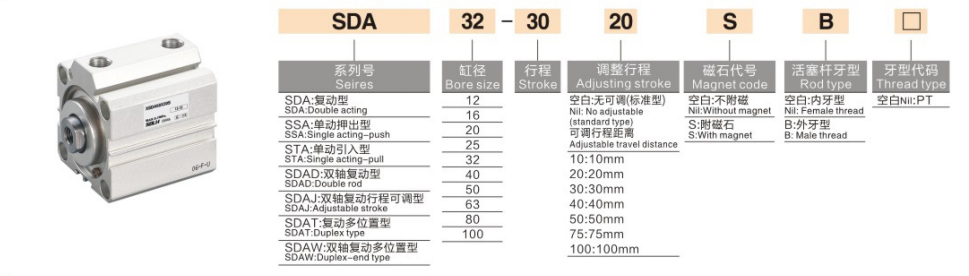

1. Exemplum: SDA20-50-S-B
-- SDA: Series name; SSA=ver extend; STA=ver retract; SDAD = geminae virgae; SDAJ = Novifacta plaga
-- 20: Bore size:12/16/20/25/32/40/50/63/80/100 mm
-- 50: Plaga longitudo 5~200mm
-- S: Inaedificata in magnete anulo
-- -B: Anconae stamina externa; blank = internum filum
|
Parameter |
Specification |
| Bore Size |
12~100 mm |
| Operans Pressura |
Duplex agens: 0.1~1.0MPa; Unius agendi: 0.2~1.0MPa |
| Probatur Pressura |
1.5 MPa |
| Temperature |
Non-magnet:-5~+70℃; Magnes versio: -5~+60℃ |
| Piston Speed |
Duplex agens: 30~500mm/s; Unius agendi: 50~500mm/s |
| Pulvinar |
Fixum quiddam rubber (pulvinar nihil aeris optio) |
| Portus Thread |
M5/G1/8/G1/4/G3/8/G1/2 |
| Lubricatio |
Oleum libero operandi |
| Plaga Tolerantia |
≤100mm:±1.0mm; >100mm:±1.5mm |
|
Bore (mm) |
Mitte (N) |
Trahere (N) |
Aequivalent Lond (kg) |
|
12 |
57 |
49 |
2.8 |
|
16 |
101 |
89 |
5.0 |
|
20 |
157 |
141 |
7.8 |
|
25 |
245 |
220 |
12.2 |
|
32 |
402 |
362 |
20.1 |
|
40 |
628 |
565 |
31.4 |
|
50 |
981 |
882 |
49.0 |
SOLH SDA oeconomica compacta cylindrici pneumatici ultra-tenuis cum variantibus abundantibus, convertibilibus cum ACQ & CQ2, idealis costae breves plagae actuatoris pro spatio-salvando machinis latis et propellentibus applicationibus.
