Brand: SOLH by Richge Technology

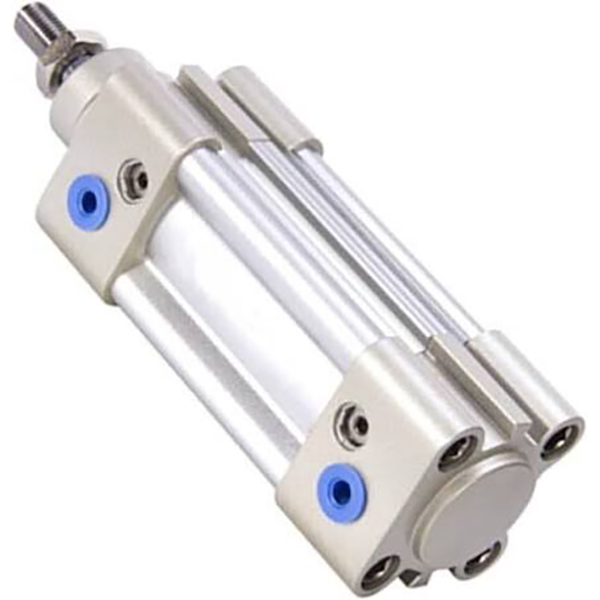

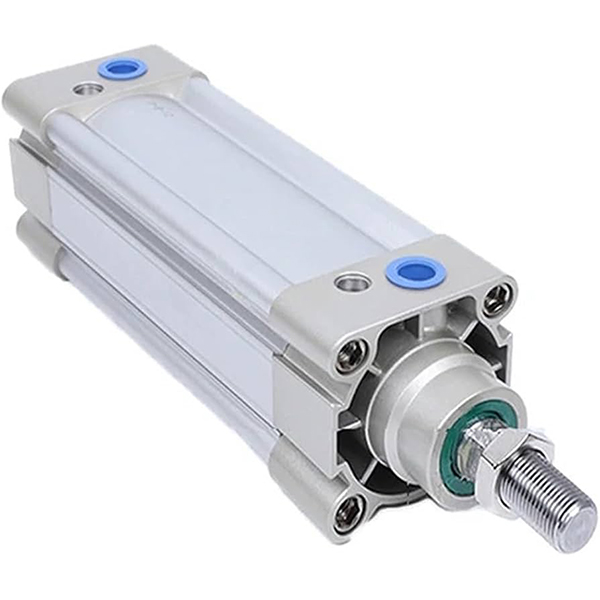

SOLH SAI series duplex cylindri agentis profile obtemperat ISO 15552 (originale ISO6431) / VDMA 24562 vexillum internationale. Eaedem dimensiones ascendentes ut SI, SE et FESTO DNC series ad commercium directum. Lorem princeps sumptus effectus, stabilis effectus et longi muneris vita, est latissime usus medii gradus ISO vexillum cylindricum pro instrumento automation.
1. Latin Obsequium: ISO15552 / VDMA24562, dimensiones & accessiones plene convertibiles ascendentes.
2. Structura: M conformatum aluminium quadrangulum integrum dolium profile sine virgis ligaminis expositis, alta rigiditate et anti-corrosione. Duplex soni sulci CMSE / DMSE / CS1 virgas magneticae.
3. Operatio Variantes
-- SAI: Una virga duplex agens vexillum exemplar
-- DIXIT: Duplex baculus duplex agendi, odii torsionis capacitas excellens
-- SAIJ: Duplex virga cum Novifacta plaga
-- VELA: Lockable cylindrus
-- SAIF: Valva Solenoidei cylindrici integrata
-- Suffix -S: inaedificata anulum magneticum pro positione sensoris (sine -S = non-magnetis)
4. Cushion System: Latin bifariam-finem aptabile pulvinus aeris + PPV quiddam elasticum caudex, efficaciter impulsum et strepitum minuendum sub celeritate magno & onere gravi.
5. Obsignatio: Duplex Y-typus una-modus recompensationis sigillum cum sulcus olei repositionis, pressus satus (0.1MPa), oleum liberum operationem. Ferreus chrome patella 45# Anconus ferreus, obsistens & probatio rubigine.

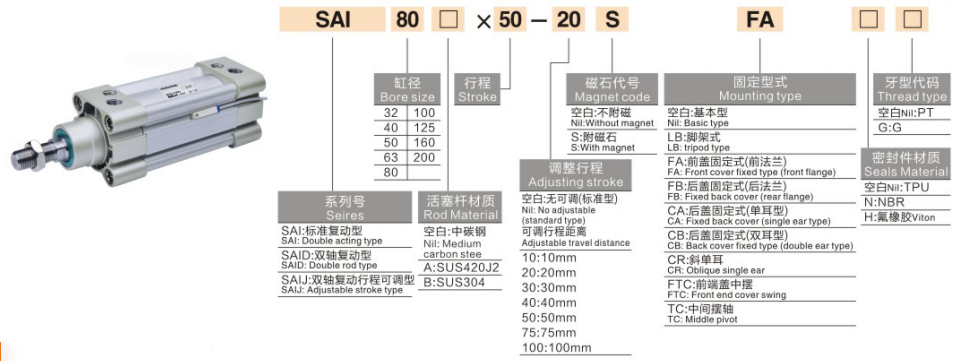

1. Exemplar Exemplum：SAI50×150-S-FA
|
Segmentum |
Code |
Definition |
| SAI |
Series Codicis |
ISO15552 tie-roed-free profile cylindrici |
|
50 |
Bore Size (mm) |
32,40,50,63,80,100,125,160,200 |
|
150 |
Longitudo plaga |
Standard:25~1000mm, max nativus 2000mm |
| -S |
Magnes Option |
Inaedificata anulo magnetico; remove que pro non-magnis version |
| FA |
Adscendens Code |
FA=Fronte flange FB = Audi LABIUM LB=Foot CA=Single clevis CB duplex clevis TC=Trunnion TCM = Trunnion cum magnete |
2. Exempla Latin
-- SAI63×200-S: Bore63, stroke 200, in magnete, in typo fundamentali
-- SAID40×100-FB: Bore40, stroke100, baculus duplex, mons tergoris LABIUM
-- SAIL80×300-S-LB: Bore80, stroke300, genus lockable, pes ascendens
|
Parameter Item |
Specification |
| Agens Type |
Duplex agens (una virga / duplex virga) |
| Operans Pressura |
0.1~1.0 MPa (commendatur: 0.5~0.6 MPa) |
| Probatur Pressura |
1.5 MPa |
| Ambiens Temperature |
-20 ~ +70℃ |
| Piston Speed |
30~ 800 mm/s (32~100 peperit); 30~500 mm/s (125~200 peperit) |
| Pulvinar |
Pulvinar aeris Novifacta + PPV codex elasticus in utraque extremitate |
| Air Portus Thread |
G1/8 (32/40), G1/4 (50/63), G3/8 (80/100), G1/2 (125), G3/4 (160/200); |
| Piston Rod Thread |
M10×1.25~ M45×2 (Pendit on bore) |
| Lubricatio |
Pre-ungi, oleum liberum operationem |
| Adscendens |
Angulus institutionis quaevis, universalis ISO accessiones vexillum |
|
Bore (mm) |
Mitte (N) |
Trahere Force (N) |
Proxime. Horizontalis Lond (kg) |
Proxime. Vertical Lond (kg) |
|
32 |
483 |
440 |
24 |
12 |
|
40 |
754 |
700 |
37 |
18 |
|
50 |
1178 |
1100 |
58 |
29 |
|
63 |
1870 |
1760 |
93 |
46 |
|
80 |
3016 |
2850 |
150 |
75 |
|
100 |
4712 |
4480 |
235 |
117 |
|
125 |
7363 |
7050 |
368 |
184 |
|
160 |
12064 |
11600 |
603 |
301 |
|
200 |
18850 |
18100 |
942 |
471 |
1. Adscendens Options
-- Basic genus, LB pes mons, FA/FB flange, CA/CB clevis, TC/TCM trunnion. Ad libitum accessiones: iunctura fluitans, oculus virga, I/Y/U/F iungo.
2. Main Derivative Series
-- DIXIT: Duplex baculus duplex agens
-- SAIJ: Duplex virga cum Novifacta plaga
-- VELA: Lockable cylindrici pro media positione tenentes
-- SAIF: Integrated valvae solenoidei cylindrici
1.Bore lectio: Calculate intrude secundum sarcinam, ≥50% marginem servate; upgrade magnitudinum 1~2 sub onere offset / cantilever onere.
2. Stroke confirmation: Adde 20~50mm marginem salutis ad efficacem peregrinationem; vexillum max ictum 1000mm, nativus usque ad 2000mm.
3.Configuration matching
-- Position feedback: Select -S magnetis exemplar, inserere CMSE/DMSE virgas magneticae;
-- Adscendens: LB pes mons pro horizontali onere gravi; FA LABIUM pro verticali institutione malle;
-- Praecipuum munus: Elige dictum pro virga duplici, SAIJ pro ictu aptabili, VELUM pro positione densis, SAIF pro pacto pacto.
SOLH SAI ISO15552 cylindrici profile liberum fasciculum directe restitui possunt FESTO DNC, SE et SI series, aptabilibus PPV quiddam et variantibus locupletibus instructum, actuatorem linearem cost-effectivum pro automatione educendo, instrumentorum instrumentorum fasciculis et machinamentis instructum.
