Brand: SOLH by Richge Technology

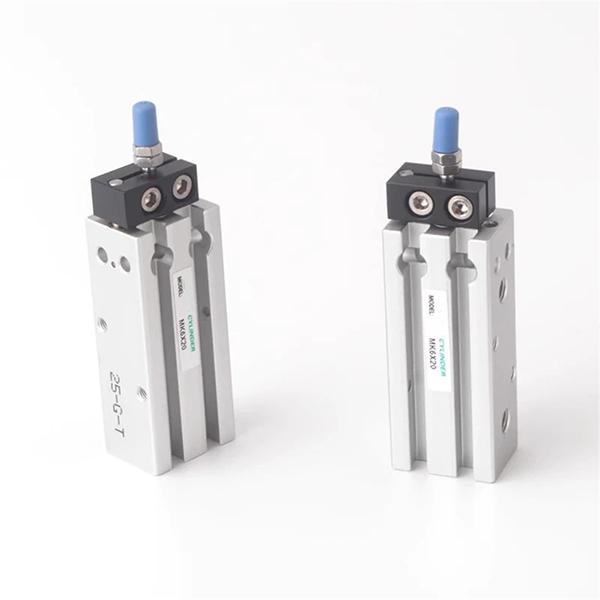

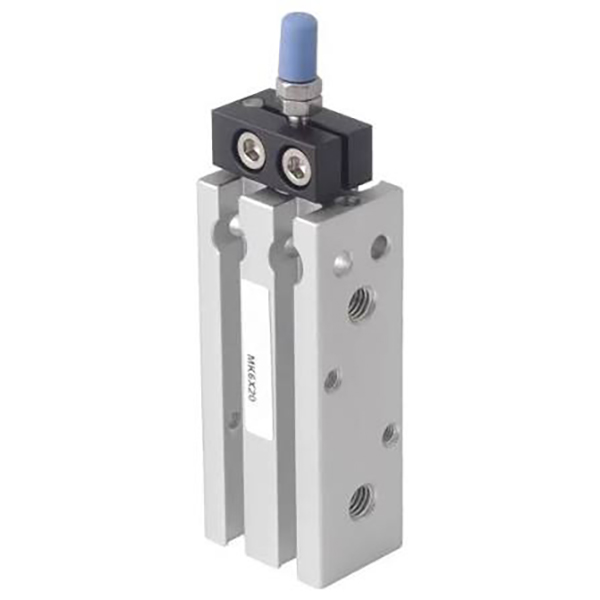

SOLH MK series gracilis multi-montis cylindrici upgraded versionem cylindrici MD cum mechanismo anti rotationis constructo. Corpus quadratum sustinet institutionem sex superficiei sine uncis extra. Anti- torquens structuram rotationem anconem restringit, multi-cylindrici institutionem parallelam dat, idealis ad praecisionem spatii determinatam automationem cum positionibus angularis requisitis. Directe convertibilia cum seriei Airtac MD et SMC CQS.
-- Corpus aluminii quadratum tenue, anti rotationis rector socors integratum;
-- Anodized dolium durum, chroma patella anconium, durabile & leve;
-- Plena variantes: MK(duplex agens), MSK (extendit ver), MTK (retractum ver), MKD (virga duplex), MKJ (virga duplex aptabilis); suffix -S for constructum in magnete;
-- Anti-gyrationis accuratio ≤±0.5°, declinatio angularis workpiece;
-- Mountable on front, rear, left, right, top, bottom sides; support later-by-side parallel congregationis;
-- sulcus circumferentialis sensoris ad magneticam institutionem transitum flexibilem.

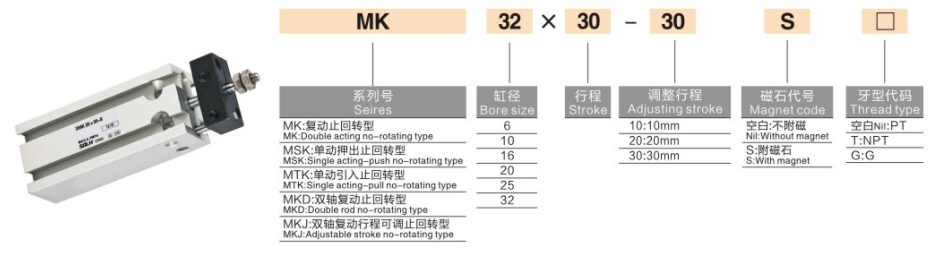

1. Exemplum: MK20-50-S
-- MK: Series code; K= anti-volutionis; D=duplex virga; J = Novifacta plaga
-- 20: Bore size: 6/10/16/20/25/32 mm
-- 50: Plaga longitudo 5~100mm
-- S: Inaedificata in magnete anulo
|
Parameter |
Specification |
| Bore Size |
6,10,16,20,25,32 mm |
| Operans Pressura |
Duplex agens: 0.2~1.0MPa; Unius agendi: 0.15~1.0MPa |
| Probatur Pressura |
1.5 MPa |
| Temperature |
Non magnes: -20~+70℃; Magnes versio: 0~+60℃ |
| Piston Speed |
30~500 mm/s |
| Pulvinar |
Certa Flexilis quiddam pads |
| Portus Thread |
M5 (φ6~25); G1/8 (φ32) |
| Lubricatio |
Oleum libero operandi |
| Anti-gyrationis |
Accuracy ≤±0.5° |
|
Bore (mm) |
Mitte (N) |
Trahere (N) |
|
6 |
14 |
11 |
|
10 |
39 |
31 |
|
16 |
101 |
89 |
|
20 |
157 |
141 |
|
25 |
245 |
220 |
|
32 |
402 |
362 |
-- Lego ferebat per minimum 50% marginem salutis ad onus operandum;
-- Adde 5~10mm salarium ad ictum iter practicum; max ictum vexillum: 100mm;
- Exemplar elige -S si situ deprehensio requiritur; eligere MKD duplex virga pro parte oneris conditio.
SOLH MK mons sex-superficialis cylindrici compactus instructus in mechanismo anti-rotatione constructo, ad praecisionem positionis et compactionis multi-cylindrici propositae aptae in apparatu automation-spatii limitata.
