Brand: SOLH by Richge Technology

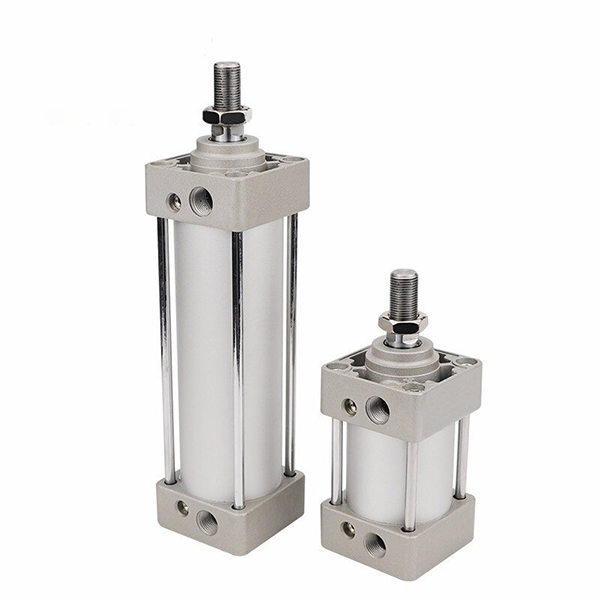

SOLH MBB series levis ponderis ligaturae virgae vexillum cylindricum (series MB-Z), successori traditionis MB seriei upgraded cum reductione 10% ponderis. Instructus pileis quadratis finem, pulvinaria aerea duplicata aptabilia et optiones ascendentes abundantes. Late usus est in instrumento automation generali cum celeritate media, magna frequentia et onere mediae condiciones. Installation dimensiones morem with ISO 15552 vexillum, convertibilia cum certantibus notam ligamen virgae cylindrici.
1. Structura: Aluminium rotundum dolium, fasciae virgae internae, pilei quadrati finis, pulvinus aereus aptabilis utrinque, structurae princeps rigiditas.
Materia: Aluminium durum anodized dolium, virtus alta mittis finem galeros, dura chrome patella ancon, alta virga distrahentes ligamen, induere repugnans et diu vitam serviens.
3. Operatio Variantes
-- MBB: Una virga duplex agens (sine constructa in magnete)
-- MDBB: Una virga duplex agens (aedificata in anulo magnetico pro auto switch)
-- MBW/MDBW: Duplex virga duplex agendi, praestans anti- torsio
4. Cushion: Pulvinus aereus independens aptabilis ad utrumque finem, efficaciter reducens impulsum terminalem, vibrationem et strepitum.
5. Sensor instruitur: Pre-striae machinatae ad M9B/A93/M9BW virgas magneticae autocineticae ad positionem deprehendendi piston.
6. Leve Upgrade: Optimized cap geometrica finis, 10% levius quam vetus MB exemplar, facilius conventus et vecturae.
7. Standard Compatibility: ISO 15552 vexillum ascendens, transversim notam directam.

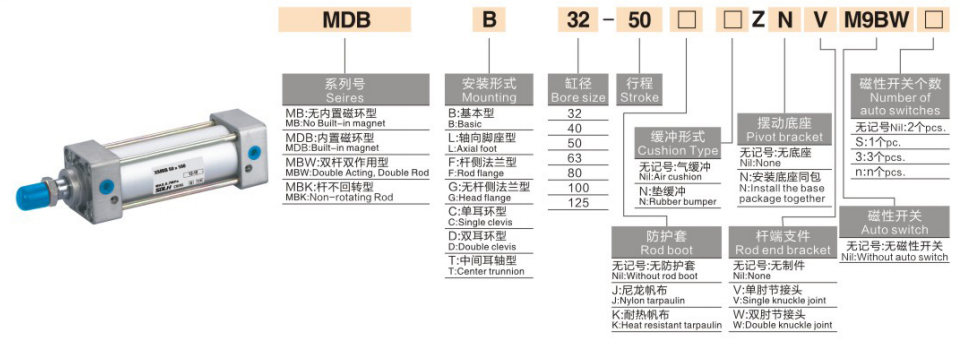

1. Exemplar Exemplum：MDBB40-100Z-M9BW
|
Segmentum |
Code |
Definition |
| MB / MD |
Magnes Option |
MB = Non magnete MD = inaedificata in anulo magnetico |
|
B |
Series Codicis |
Quadratus finis cap tie virga vexillum cylindricum |
|
40 |
Bore Size |
φ32/40/50/63/80/100/25 mm |
|
100 |
Longitudo plaga |
Standard:25~1000mm, max nativus 1500mm |
|
Z |
Versione Mark |
Novum leve MB-Z series |
| M9BW |
Ad libitum ADIUNCTUS |
Magnetic auto switch |
2. Exempla Latin
-- MBB50-200Z: Bore50, stroke200, exemplar basicum leve sine magnete
-- MDBB63-150Z-LB: Bore63, i
-- MDBB80-300Z-FA: Bore80, stroke300, virga lateralis flaminis ascendens
| Parameter Item |
Specification |
| Bore Range |
φ32,40,50,63,80,100,125 mm |
| Operans Pressura |
0.05~1.0 MPa |
| Probatur Pressura |
1.5 MPa |
| Ambiens Temperature |
-10~+70℃; -10~+60℃ ad exemplar magnetis instructum |
| Piston Speed |
50~1000 mm/s |
| Pulvinar |
Pulvinar in utrisque caeli fines Novifacta |
| Air Portus Thread |
Rc1/8 (φ32), Rc1/4 (φ40/50), Rc3/8 (φ63), Rc1/2 (φ80/100), Rc3/4 (φ125) |
| Lubricatio |
Pre-ungi, oleum liberum operationem praesto |
| Plaga Tolerantia |
≤250mm:0~+1.0mm; 251~ 1000mm: 0~+1.4mm; 1001~ 1500mm: 0~+1.8mm |
1. Duplex Actus MBB / MDBB
|
Bore (mm) |
Mitte (N) |
Trahere Force (N) |
|
32 |
402 |
362 |
|
40 |
628 |
565 |
|
50 |
981 |
882 |
|
63 |
1559 |
1402 |
|
80 |
2513 |
2262 |
|
100 |
3927 |
3534 |
|
125 |
6136 |
5523 |
1. Adscendens Options
- B Basic Type: Direct institutionem per finem cap per foramina
-- LB Foot Mount: Stable horizontal installation for heavy load

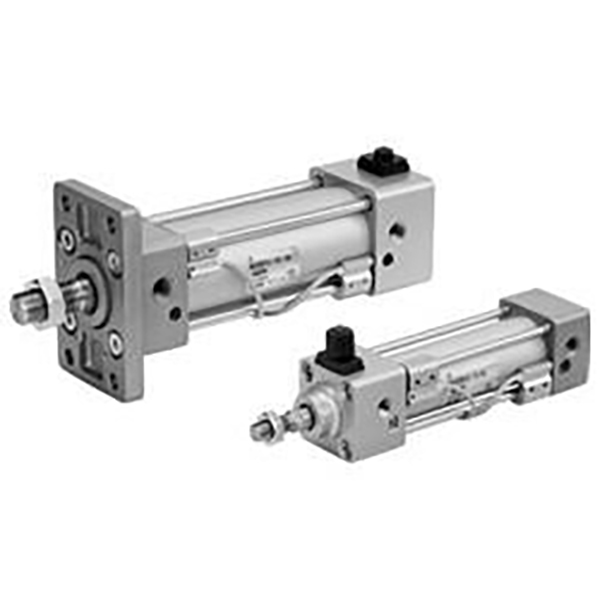

-- FA/FB Flange: Rod-side/caput LABIUM pro verticali inscensu
-- C/D Clevis: Single/duble Clevis ad motum adductius CARDINATUS
-- T Trunnion: Trunnion medius trunnion pro materia prima
2. Main Derivative Series
-- MBB/MDBB/MBW: Standard single virga non magnes / magnes & duplex virga cylindrica
-- MBK/MDBK: Non rotating virga cylindri ne ANCON tortuosum
-- -XB6 Maximum Temperature Type: Opus range -20~ + CL ℃
-- -XC6 Steel Piston Rod: Nam lenis mordax & humida environment
1. Praetulit lectio: Calculate ab ipsa onere retrusa, reserva ≥50% marginem salutem. Prioritize MBB pro media velocitate medium-onere automationem generalem.
2. Plaga confirmationis: 10~ 20mm marginem salutis ad efficacem peregrinationem adde. Max vexillum 1000mm ictum, nativus usque ad 1500mm.
3. configurationis matching
-- Deprehensio positionis: Elige MDBB in magnete exemplar constructum, M9B/A93 virgas autocinetas aequas.
-- Adscendens: LB pes mons pro horizontali onere gravi; FA LABIUM ad institutionem verticalem malle.
-- Nota condiciones speciales: -XB6 pro caliditas, -XC6 virga immaculata ad corrosivam environment.
SOLH MBB leve pondus ligaturae regulae regulae cylindrici ISO15552 obtemperat, pulvino aere aptabili et multiplicibus methodis ascendentibus instructus, specimen generalis propositi actuatoris linearis pro mediae oneris altum frequentiae automationis linearum productionis.
