Brand: SOLH by Richge Technology

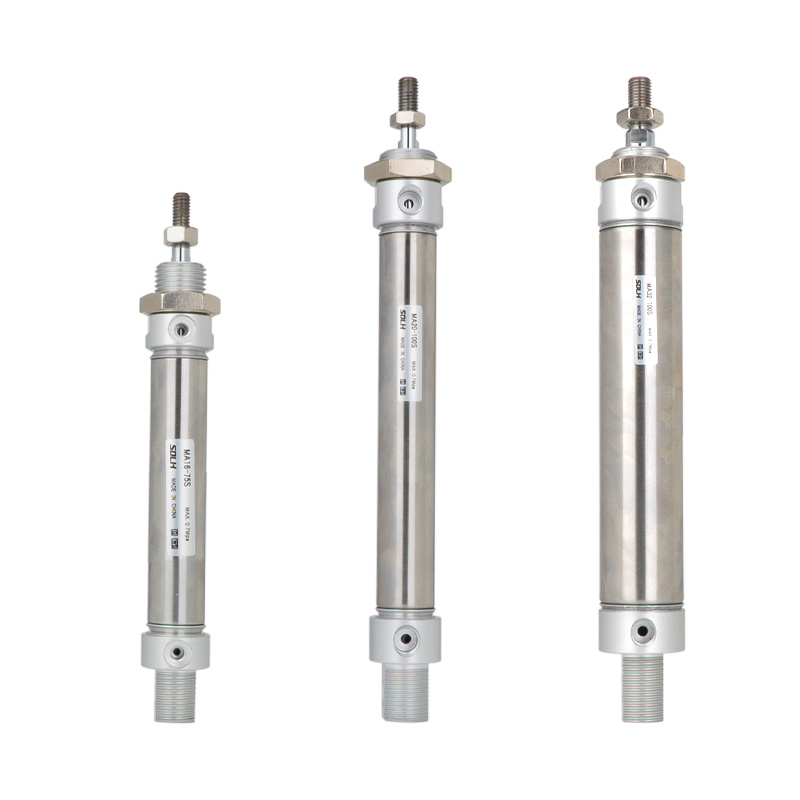

SOLH MA series oeconomica incorrupta ferri mini cylindrici, magnitudine φ16/20/25/32/40/50/63mm peperit. Commutabilis cum seriei SMC CM2/CM3. Summus sumptus effectus, matura structura, universalis ascendens dimensiones et corrosio resistentia. Late applicata in levi industria, electronicis, fasciculis, cibis et parvis automationis instrumentis ad lucem & medium onus, condiciones oeconomicas sensitivas, munditias vel humidas operantes condiciones.
1. Latin: Vexillum internum Inceptum, valde convertibile cum SMC CM2/CM3.
2. Materia: dolium chalybem immaculatum & anconium, aluminium mixturae pilei finis, probatio rubigine humida, acidum debile, alcali debile & mundum environment.
3. Structura: pilei ac dolii finem rotundum connexum, structura stabilis et sumptus competitive, figura recta cylindrica ad facilem sustentationem.
4. Operatio Variantes
-- MA Duplex agens: Aeris copia in utraque parte, exemplar maxime commune
- MSA Single Act Spring Extende: Praetende automatice cum aer abscisus
-- MTA Single Agens Spring Return: Retract automatice, cum aer abscisus est
-- Rod Duplex DEM
-- MAJ Adjustable Stroke: Duplex agens subtiliter ictum temperatio pro precise positioning
5. Cushion: Latin rubber anti-collation offensionis; MAC optional Pulvinus aeris aptabilis ad reducendum impulsum & strepitum sub motu magno velocitatis.
6. Obsignatio: Sigillum bidirectionale speciale cum sulcus repositionis olei, pressus satus humilis, operatio olei libera, vita servitii ≥5 decies centena milia cyclorum.
7. Detectio positio: Omnia exempla in anulo magnetico (suffixo S), compatibilia cum AirTAC CS1-G vel SMC M9B magneticae virgas pro feedback positis piston.

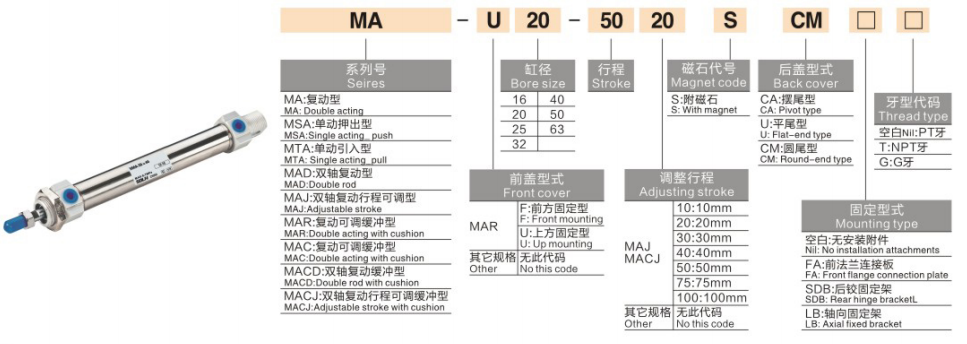

1. Exemplar Exemplum：MA25-100S-CM-FA
|
Segmentum |
Code |
Definition |
| MA/MSA/MTA/MAD/MAJ |
Series Variant |
MA=Duplex Actus MSA=Single Actus Spring Extende MTA=Agens Spring Redi DEMENS = Geminus Rod MAJ=Adjustable Stroke |
| 16/20/25/32/40/50/63 |
Bore Size (mm) |
φ16~φ63 |
|
100 |
Longitudo plaga |
Maximilianus. 500mm duplex agens Max.100mm una agendi |
|
S |
Magnetic Ring |
Inaedificata magnete (vexillum, amet) |
| CM/CA/U |
Tergo finis Type |
CM=Cylindrica cauda; CA=Clevis cauda; U = Flat caudam |
| FA/FB/LB/SDB |
Adscendens Accessorius |
FA=Front flange; FB = Audi LABIUM LB=Foot; SDB = Duplex clevis |
-- MA32-75S-CM：Bore32, ictum75, duplex agens, cauda cylindrica, in magnete constructa.
-- MTA20-50S-U：Bore20, stroke50, actus vernalis reditus, cauda plana
-- MAJ40-100S-CA：Bore40, stroke100, ictum aptabile, cauda clevis
|
Parameter Item |
Specification |
| Bore Sizes |
φ16,20,25,32,40,50,63 mm |
| Operans Pressura |
Duplex agens: 0.1~1.0MPaSingle agens: 0.2~1.0MPa |
| Probatur Pressura |
1.5 MPa |
| Ambiens Temperature |
-20~+70℃；-10~+60℃ ad exemplar magnetis instructum |
| Piston Speed |
50~750 mm/s |
| Pulvinar |
Flexilis Latin pulvinar; MAC libitum Novifacta caeli pulvinus |
| Air Portus Thread |
PT1/8 (φ16/20/25/32); PT1/4 (φ40/50); PT3/8 (φ63) |
| Lubricatio |
Pre-ungi, oleum liberum operationem praesto |
| Plaga Tolerantia |
±1.5 mm |
1. Duplex Actus MA
|
Bore (mm) |
Mitte (N) |
Trahere Force (N) |
Proxime. Horizontalis Lond (kg) |
|
16 |
101 |
101 |
5.0 |
|
20 |
157 |
141 |
7.8 |
|
25 |
245 |
220 |
12.2 |
|
32 |
402 |
362 |
20.1 |
|
40 |
628 |
565 |
31.4 |
|
50 |
981 |
882 |
49.0 |
|
63 |
1559 |
1413 |
77.9 |
2. Agens MTA (Ver Redi @0.5MPa)
|
Bore (mm) |
Mitte (N) |
Ver Redi Force (N) |
Proxime. Horizontalis Lond (kg) |
|
16 |
90 |
20 |
4.5 |
|
20 |
145 |
25 |
7.2 |
|
25 |
230 |
40 |
11.5 |
|
32 |
380 |
65 |
19.0 |
|
40 |
600 |
100 |
30.0 |
|
50 |
940 |
150 |
47.0 |
|
63 |
1500 |
240 |
75.0 |
1. Audi Caudium & Adscendens Options
-- CM Cauda cylindrica: Standard directum adscendens (Most Popular)
-- CA Clevis cauda: Tergo cardo ad adductius mechanismum
- U Flat cauda: Planum institutionem ad spatium axiale limitatum
-- FA/FB Flange: Front/tering LABIUM laminam fixing
-- LB Foot mount: Partes axial bracket installation
-- SDB Duplex Clevis: nexum CARDINATUS ad motum adductius
2. Main Derivative Versions
-- MA: Latin duplex agens cum magnete constructum
-- MSA/MTA: Single agens ver extend/ver reditum
-- DEMENS: Duplex virga duplex agens
-- MAJ: Adjustable ictum duplex agens
-- MAC: Duplex agens adjustable aere pulvino
1.Bore lectio: Calculate intrude & onere horizontali, reservate ≥50% marginem salutis; MA potissimum eligere ad lucem & medium onus ac incepta sensitiva sumptus-sensitiva.
2. Stroke confirmation: Add extra 10~ 20mm marginem peregrinationem; Plaga max: duplex agens ≤500mm, una agendi ≤100mm.
3.Configuration matching
-- Operatio : Duplex agens → MA ; unum agens vere reditus → MTA ; praecise plaga tuning → MAJ
- Cushion: Elige MAC adjustable pulvinar aere, cum currit velocitate 500mm / s
-- Positiones feedback: Omnia exempla in magnete constructis ornata, CS1-G / M9B switches magneticae aequant
SOLH MA frugi chalybs incorrupta mini cylindrici cum serie SMC CM2/CM3 convertitur, abundantes variantes et multiplices electiones ascendentes, cost-effective lineares actuator lucis & medii oneris automationis, fasciculorum, ciborum et linearum productionis electronice praebet.
