Brand: SOLH by Richge Technology | SMC KQ2N Equivalent Stem Rectus One-Tange Fitting
Stylus KQ2N caulem rectum pneumaticum decet. Alter finis est stamina masculina vel truncus, alter terminus PU/PA aeris Tubing accipit. Recta substitutio est series SMC KQ2N ad caerimonias unius tactus. Late in circuitibus pneumaticis et fistulae vacuo. Instrumentum institutionis liberae, solum torquem emissionem premere ut Tubing inserere vel removere cito.
Quattuor genera structurarum in promptu sunt:

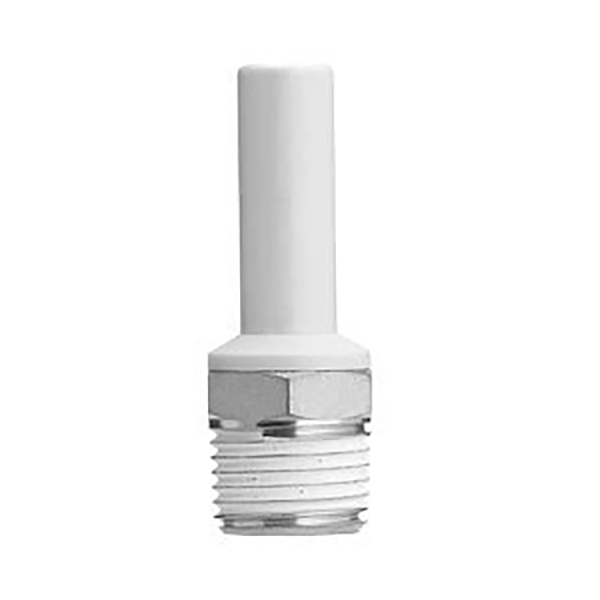

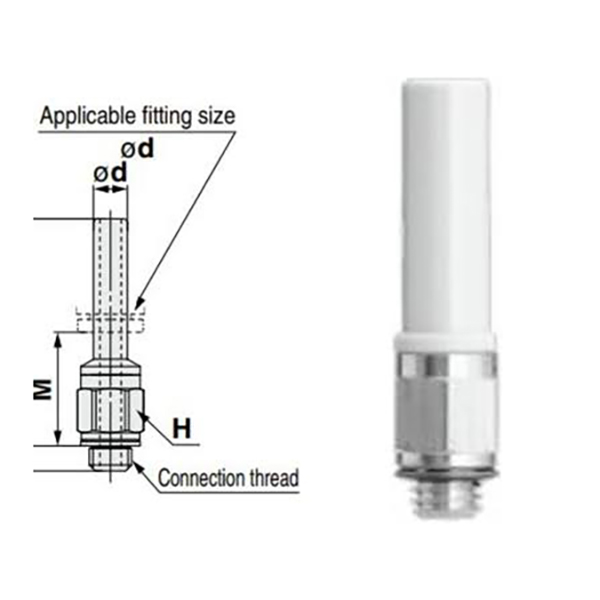

Stamina masculina caulis generis (M thread: M5)
Stamina masculina caulis generis (Imperialis taenia R stamina: 1/8,1/4,3/8)

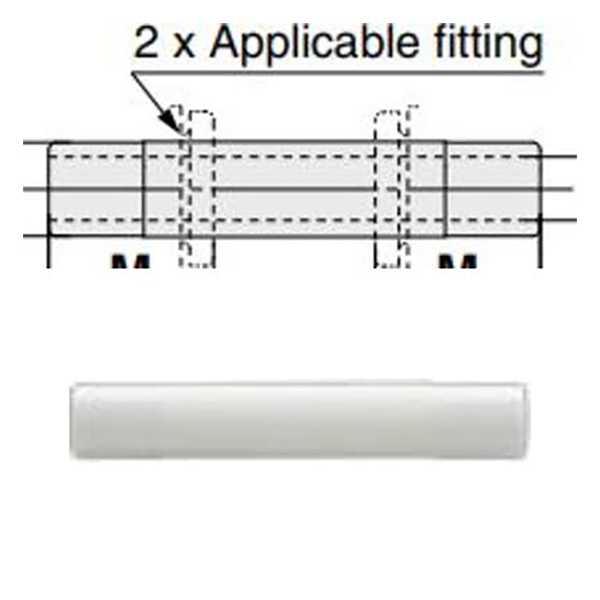

• Caulis diametri aequalis recta (-99 suffixo) : utraque eadem OD caule

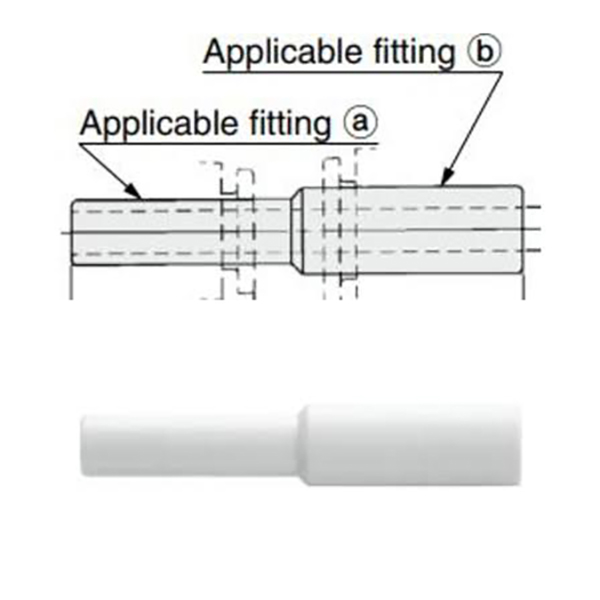

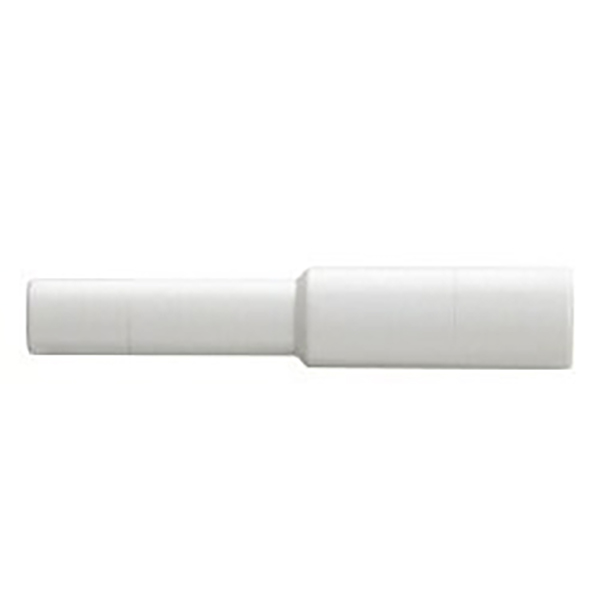

• Reducendo caulem rectum congruum: duos caules diversos diametri exteriores ad magnitudinem transitus
Exemplum: KQ2N04-M5
• KQ2N: Series code, caulis genus rectum conveniens
• 04: Tubus diameter Φ4mm in dis-in latere
• M5 / 01S / 02S: sequela masculina specificatio
• -99: Aequalis diametri caulis rectae congruus
• 04-06: Φ4 → Φ6 . Φ6
|
Code Segmentum |
Descriptio |
|
KQ2N |
Series codice: Caule genus rectum dis-in conveniens |
|
04/06/08/10/12/16 |
Tubus diametri exterioris ΦD (mm) |
|
M5 |
Stamina metrica masculina M5×0.8 |
|
01S/02S/03S |
Stamina imperialium R cerei: R1/8, R1/4, R3/8 |
|
-99 |
Aequalis diametri caulis recta congruus , uterque idem OD |
|
digiti duo e.g.04-06 |
Stemmam reducere decet: limbum OD, exitum OD |
|
Item |
Parameter |
|
Lorem Tubing |
PU tubus polyurethane, PA nylon tube |
|
Operans Pressura |
0~1.0MPa, compatible cum pressione negativa vacuo ambitum |
|
Operating Temperature |
0℃~ +60℃ |
|
Corpus Material |
Corpus plasticum; Nickel-patella aenea, pars staminea, corrosio resistens |
|
euismod signantes |
Optimum filum signare |
|
Connection Methodi |
Dis-in; Torcular release torquem ad desciscendum |
4.1 Metric M Male Thread Version
|
Model |
Thread |
Tubus ΦD |
|
KQ2N04-M5 |
M5×0.8 |
Φ4 |
|
KQ2N06-M5 |
M5×0.8 |
Φ6 |
4.2 Imperial R Taper Male Thread Version
|
Model |
sequela R |
Tubus ΦD |
|
KQ2N04-01S |
R1/8 |
Φ4 |
|
KQ2N06-01S |
R1/8 |
Φ6 |
|
KQ2N06-02S |
R1/4 |
Φ6 |
|
KQ2N08-02S |
R1/4 |
Φ8 |
|
KQ2N08-03S |
R3/8 |
Φ8 |
|
KQ2N10-03S |
R3/8 |
Φ10 |
4.3 Aequalis Diameter Caulis Rectus (-99 Series)
|
Model |
ΦD |
|
KQ2N04-99 |
Φ4 |
|
KQ2N06-99 |
Φ6 |
|
KQ2N08-99 |
Φ8 |
|
KQ2N10-99 |
Φ10 |
|
KQ2N12-99 |
Φ12 |
|
KQ2N16-99 |
Φ16 |
4.4 Reducing Stem Rectus Fitting
|
Model |
Stem OD |
Stem OD |
|
KQ2N04-06 |
Φ4 |
Φ6 |
|
KQ2N06-08 |
Φ6 |
Φ8 |
|
KQ2N08-10 |
Φ8 |
Φ10 |
|
KQ2N10-12 |
Φ10 |
Φ12 |
|
KQ2N12-16 |
Φ12 |
Φ16 |
Corpus plasticum cum filo aeneo nickel-patella ad corrosionem resistentiae et certae stamina obsignatio
• Compatible cum PU tubus aeri polyurethane et PA nylon tube
Rated pressura working 0~1.0MPa, apta ad pressionem negativam vacuo
• Temperatus operans range: 0℃~ +60℃
• Simplex conventus: custodi tubum fine tereti ac directe inserere; torcular ante release torquem ad trahendum ex Tubing ad disassembly
Machinaria automatio, arma robotica, systemata vacuum adsorptio, fixtura pneumatica, limbus compressor aeris. Repositum directum ad seriem caerimoniarum SMC KQ2N importatae.
