SOLH HFZ series est summus rigiditas tenacior parallelus instructus cylindro / globo lineari integrato, agitatus a piston et eculeo & pinna synchrono mechanismo. Plene convertuntur cum serie SMC MHZ2.
Tres operationes variantes in promptu sunt:
-- HFZ: Duplex agens vexillum genus
-- HFSZ: Single agens normaliter clauditur (fibulae ver, imperium longe tenentes)
-- HFTZ: Singulus agendi normaliter aperta (remissio ver, potentia longe aperta) Apta ad lucem communem & medium onus praecisionem clamptionis, conventus automatis et applicationum effectoris roboti finis.
1. Transmissio: Dual piston + eculeum & pinna synchronum coegi. Duae fauces perfectum motum parallelum sine nonummy et deflexione conservant.
2. Rector System: Integrated cylindrus / globus ductor linearis cum paxillos in fundo locans ne vagatio. Praeclara rigiditas, alta accurate repetere et valida resistentia ad onera offset.
3. Operatio modorum
-- HFZ Duplex agens: Aeris copia aperta / proxima, universalis continua productio
-- HFSZ Single Agens NC: Aeris copia fauces aperit; vere iuncturas praeparavit ubi aer abscise (potestatem off workpiece captionem)
-- HFTZ Single Agens NO: Air copia fauces claudit; vere opens, cum aer abscise (potestatem auto- missionem)
4. Constructio: Aluminium corpus mixturae, fauces chalybis immaculatae, in anulo magnetico constructo. Dual-late magneticus switch striatus; multae superficies ascendentes: imo / latus / per puteum.
5. Positio accurata: ± 0.01 mm (borra 6~25); ± 0.02 mm (ferentibus 32~40), stabilibus sub alta frequentia revolutio.

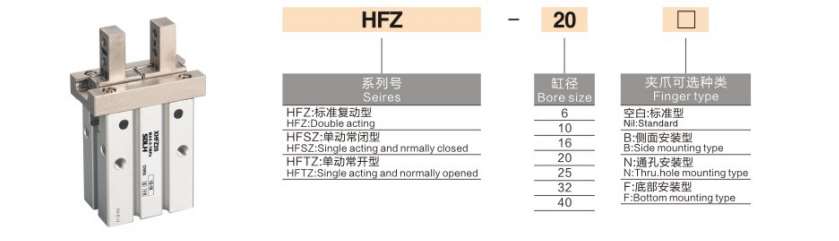

1. Exemplar Exemplum：HFZ20N-M9BW
|
Segmentum |
Code |
Definition |
| HFZ / HFSZ / HFTZ |
Series Codicis |
HFZ=Agens duplex / HFSZ=Singula Communiter occlusa / HFTZ=Singula Communiter Aperi |
|
20 |
Bore Size (mm) |
6,10,16,20,25,32,40 |
| N / B / Blank |
Adscendens Bene |
Blank = Latin imum perforatum perforatum / N = Per foramen inscensum / B = Mons latus (specialis ad portandum 6) |
| -M9B |
Magnetic Switch |
M9B (NPN) / M9N (PNP) / M9PStandard cable 0.5m; W=1m; L=3m |
| Consuetudo Suffix |
Phasellus libitum |
-X Extended jaw-J Pulvis-probationis operculum G High temperatus repugnans seal |
2. Latin Order Reference
HFZ25N-M9BW Bore 25, agens duplex, per montem foramen, M9B magneticum transitum cum 1m cable.
|
Parameter Item |
Standard Specification |
| Configurationis maxilla |
2 fauces, foramen linearem parallelam puram & claudendo |
| Operatio Modus |
HFZ (Duplex Agens) / HFSZ (NC) / HFTZ (NO) |
| Operans Pressura |
Peperit 6/10: 0.2~0.7MPa / Bore 16~40: 0.15~0.7MPa (Optimal:0.5MPa) |
| Probatur Pressura |
1.0 MPa |
| Ambiens Temperature |
-20 ~ + 70℃ (non vico limbo intus) |
| Repetere Position Accuracy |
Bore 6~25：±0.01 mm / Bore 32~40：± 0.02 mm |
| Max Operating Frequen |
cy Bore 6~16：180 cpm / Bore 20~40：60~ 120 cpm |
| Air Portus Thread |
Peperit 6/10：M3×0.5 / Bore 16~ 40：M5×0.8 |
| Lubricatio |
Operatio olei libera; NSF-H1 cibum gradu adipem ad libitum |
| Installation switch |
Dual-latus slide sulci, compatibilis cum D-M9□, CMSH, DS1 seriei |
| Adscendens Options |
Imo tapped foramen, latus mons, per foramen (N type), three-way fixing |
|
Bore (mm) |
Exemplar |
Single Jaw Stroke (mm) |
Summa (mm) |
Summa (mm) |
Interiorem Clamping Force (N) |
Net pondus (g) |
|
6 |
HFZ6 |
3 |
6 |
3.3 |
6.1 |
25 |
|
10 |
HFZ10 |
4 |
8 |
11 |
17 |
56 |
|
16 |
HFZ16 |
6 |
12 |
34 |
45 |
124 |
|
20 |
HFZ20 |
10 |
20 |
45 |
68 |
236 |
|
25 |
HFZ25 |
14 |
28 |
69 |
102 |
428 |
|
32 |
HFZ32 |
22 |
44 |
160 |
195 |
729 |
|
40 |
HFZ40 |
30 |
60 |
255 |
320 |
1268 |
⚠️ Maximus Nota: Vis clamping efficax decrescit sicut extensio maxillae longitudo L augetur. Onus verificationis cum salute factor ≥1.5 sit amet.
Elige HFZ seriem si:
-- Opus directum repositum pro SMC MHZ2; unum agens eget potestate off-prehendit / munus release
-- Leve & medium onus praecisionem parallelam clamping: 3C electronics, praecisio ferramentorum, iniectio corona, armorum packaging
-- High rigidity and offset load resisting required for robot end effector & exaction assembly stations
-- Flexibile multi directionem adscendens: per foramen / latus / fundum institutionem pro pacto mechanismo integrato
1.Select molem peperit secundum workpiece pondus ac clamping modus (exterioris / interioris tenaci), ut clamping vis ≥1.5 temporibus ipsa onus
2.Operation modus lectio
-- Power-off continua clamping → HFSZ normaliter clausus
- Power-off Auto release → HFTZ Northmanni aperta
-- Massa continua productio sine salute ver postulat → HFZ duplex agens
3. Adscendens lectio: Standard percussoque perforatum (blank) / per foramen (N) / latus montis(B) aptare suggestum vel bracket
4. Position deprehensio: Equip -M9□ virgas magneticae, duo foramina sustinent 2 virgas pro aperto & clauso signo feedback
5. Onus cinguli control: extensio maxillae limite longitudinis L, devita valde licita curvatio momentum ductoris linearis
SOLH HFZ rector linearis ductor parallelus pneumaticus gripper adoptat cylindrum/globum globum et tortam synchronum coegi, promptum in duplici agendo HFZ, unum agens NC HFSZ et NO HFTZ variantes cum optionibus multi-montis et ±0.01mm altam praecisionem, directam convertibilem cum MHZ2, specimen summum rigoris exquisitae solutionis pro robot EOAT, 3C, congregationis sonantis.
