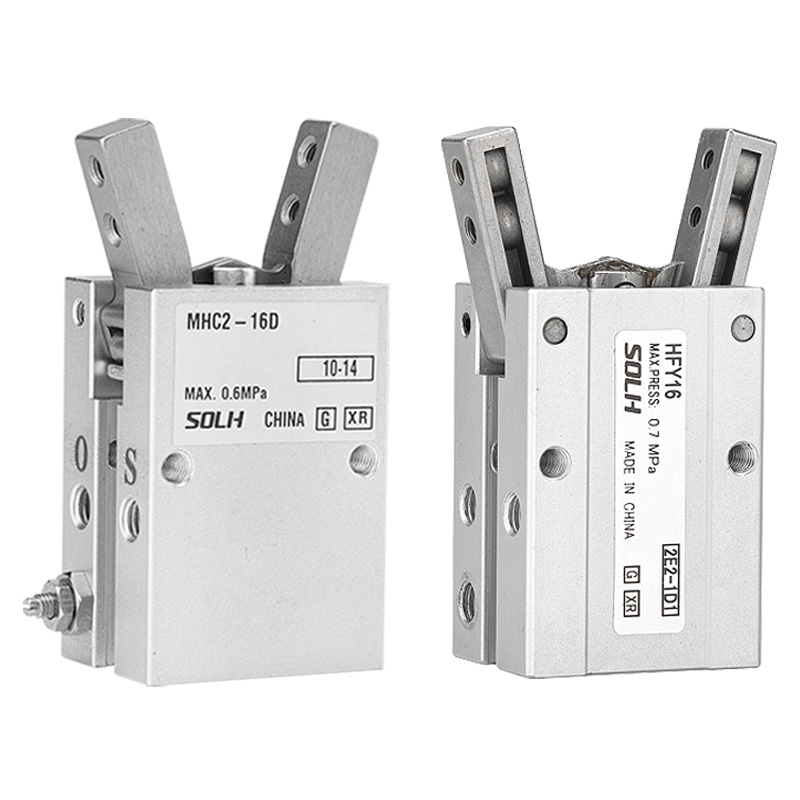

SolH HFY series compacta est adductius Y informibus gripperum ab anconis unius et cardo vectis mechanismo agitatus, modo directo ad SMC MHC2. Core notae: amplificatio vectis torques pro vi solida clamitatio, magnus adductius angulus aperturae, corpus gracili pro spatii institutionis stricta. Specimen pro parvis partibus rotundis, curvatis et irregularibus, late adhibitis in electronicis, ferramentis, parte plastica et stationes conventus levis officiorum.
1. Transmissio: Unius piston vecte cardo pellat conventum ad motum linearem in oscillationem motus Y-typum convertendum. Vectis structuram output torque ampliat pro clamping potens.
2. Modi Operatio
-- HFY: Duplex agens (vexillum) - imperium caeli bidirectional ad apertum & claudendum
-- HFTY: Singula operando Communiter Aperi - aeris copiam fibulae; vere statim opens post pressura damnum
3. Angulum adductius: Max apertum +30°, occlusum -10°, maxime validum adductius approxum. 40°, sufficientem alvi aperturam ad partes legendi praebet.
4. Constructio: Aluminium corpus anodized durum, fortitudo faucibus summus, in anulo magnetico constructum. Tres superficies ascendentes (imo/parte/tergo). IUGULAE valvulae aptabiles integrae ad celeritatis sui iuris potestatem.
5. Positio accurata: Repetere situm accurationis ±0.02mm, firmum ad levitatem officii praecisionem legendo.
1. Exemplar Exemplum：HFY20-M9BW
|
Segmentum |
Code |
Definition |
| HFY/HFTY |
Series Codicis HF |

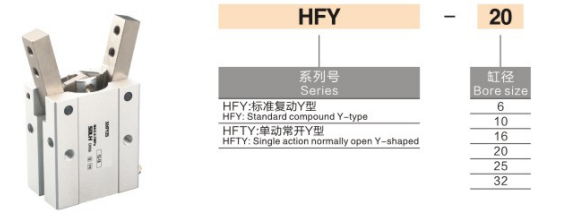

Y = Duplex agens Y adductius gripper HFTY = Una Northmanni Open |
|
20 |
Bore Size (mm) |
6,10, 16, 20, 25, 32 |
| -M9B |
Magnetic Switch |
M9B (NPN) / M9N (PNP) W=1m cable; L = 3m cable |
| Consuetudo Suffix |
Phasellus libitum |
-X maxilla extensa -J Pulvis-probatio cover |
2. Latin Order Reference
HFY25-M9BW Bore 25, agens duplex, M9BW cum switch magnetica (1m cable).
|
Parameter Item |
Standard Specification |
| Configurationis maxilla |
II ora, Y versorium genus adductius motus |
| Operatio Modus |
HFY Double Acting; HFTY Singulus agens NO |
| Operans Pressura |
HFY:0.15~0.7MPa HFTY: 0.25~0.7MPa (Optimal:0.5MPa) |
| Probatur Pressura |
1.0 MPa |
| Ambiens Temperature |
-20 ~ + 70℃ (non vico limbo intus) |
| Repetere Position Accuracy |
±0.99 mm |
| Max Operating Frequency |
CLXXX cycles per minute |
| Air Portus Thread |
Bore 6: M3×0.5 Rore 10~32: M5×0.8 |
| Lubricatio |
Oleum libero, faucibus gravida tempor vitae uncto |
| Switch Adscendens |
Dual-latus striatus circularis, compatibilis cum CMSH / DS1-G |
| Adscendens Options |
Fundum, latus, et postico tres superficies adscendens |
|
Bore (mm) |
Exemplar |
Angulus validam Open / Close |
Clamping Torque (N・cm) |
Max Jaw Extensio (mm) |
Net pondus (g) |
|
6 |
HFY6 |
30°/-10° |
10 |
30 |
45 |
|
10 |
HFY10 |
30°/-10° |
32 |
30 |
90 |
|
16 |
HFY16 |
30°/-10° |
75 |
40 |
175 |
|
20 |
HFY20 |
30°/-10° |
125 |
60 |
310 |
|
25 |
HFY25 |
30°/-10° |
210 |
70 |
520 |
|
32 |
HFY32 |
30°/-10° |
350 |
85 |
890 |
⚠️ Maximus Nota: Clamping torques decrescat sicut extensio maxillae longitudo augetur. Salutis factor ≥1.5 in onere calculi servari debet.
Prioritize HFY si:
-- Workpieces sunt rotundae, arcus informes vel parvae partes irregulares (electronic terminales, parvae plasticae insterni)
-- Requirere magnum foramen angulum (~ 40°) intra limitata institutionem involucrum
-- Altitudo / stricto apparatu layout; A structuram adductius servat plus spatii quam parallel grippers
- Leve onus ≤5kg, summus frequentia revolutio, actus efficax postulant
- Opus flexibile tres-superficies adscendens ad consuetudinem pactam instrumentorum
|
Comparatio Item |
HFY Series |
MHC2 (SMC Original) |
| Transmissio |
Unius piston + versorium vectis |
Cam + rocker vecte |
| Actio Version |
Duplex agens / Singulus agens NO |
Duplex agens / Singulus agens NC |
| Adductius Range |
+30°/-10° (Total ~40°) |
+45°/-15° (Total ~60°) |
| Clamping Torque |
10 ~ 350 N・cm |
15 ~ 420 N・cm |
| Bore Range |
6/10/16/20/25/32 |
6/10/16/20/25/32 |
| Adscendens Superficies |
Tria latera (imo / latus / tergo) |
Duabus partibus (imo / latus) |
| Pretium Level |
Princeps sumptus perficientur domestica alternative |
Maximum import pretium |
| vicissitudo |
Similia dimensio ascendens, torques leviter inferior |
Latin original specification with maior foramen angulus |
1. Bore lectio secundum molem & mola extensio workpiece
-- Leve onus ≤1kg → 6/10; Medium onus I ~ 5kg → 16~ 32
2. Operatio modus lectio
Generalis continua productio → HFY duplex agens
-- Opus automatic foramen post potestatem cut → HFTY unum agens NO
3. Adscendens layout
-- Default imum adscendens malebat; latus, mons anguste in latitudinem; postico monte pro ecclesia recta translatione stationes
4. Volo temperatio
- Utilize constructum- in adjustable suffocare valvulae ad imperium adductius celeritatem et vitare workpiece impulsum
5. Position feedback
Instrue CMSH / DS1-G virgas magneticas in dualis striatis ad aperiendam & clausam statum plene deprehendendum
SOLH HFY Y cardinum genus adductius pneumaticum gripper unum pistorem vectis torques amplificationis structuram capit, in promptu in duplici agendi HFY et singulis agendi NO HFTY, tres superficies ascendentes cum valvae suffocationis et magneticae socors constructo, cost-efficax alternatio ad MHC2 pro rotundo & irregulari particula parva alta frequentia levis oneris legendo in 3C, ferramentis.
