Brand: SOLH by Richge Technology

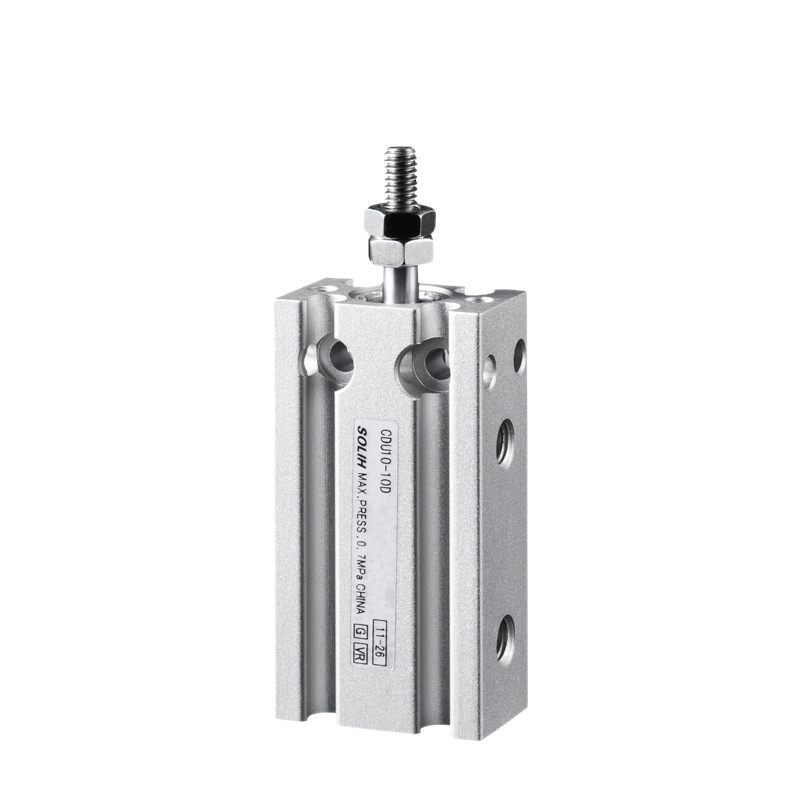

SOLH CU/CDU series angustus rectangulus liberi montis cylindrici. Multi-superficies foraminum escendentes efficiunt directam institutionem in quavis orientatione sine uncis. Consilium pacis ultra tenues late pro levi onere propellente, clamitatione et positione in instrumento automationis cum spatio institutionis stricto.
|
Model |
Feature |
Applicationem |
| CU |
Sine anulo magnete non potest aptare virgas magneticas |
Sumptus sensitivo sine situ feedback |
| CDU |
Magnete inaedificata, auxilio CMSH/DMSH sensoriis magnetici |
Opus extend / retractare situ deprehensio |
| CUK/CDUK |
ANCON non rotating |
Workpiece angulus figi debet, ne hastile gyrationis |
| CUW/CDUW |
Anconius geminus, dux integratus, anti-torsionis |
Applications cum parte onus & offset vi |
-- Multi directionem ascendentem: Instrue ab imo, latus vel finem faciem, nisi bracket ascendens;
-- Gracilis corpus rectangulum, 40% cylindricum ligamen vexillum rarius;
-- Multiplices structurae: vexillum unicum, baculum anti- rotationis, baculum duplex;
-- Inaedificata in magnete versione (CDU) cum sensoriis foraminibus aptabilibus;
-- Se lubricantem, oleum liberum continuam operationem;
-- Certum quiddam pads Flexilis impulsum et strepitum reducere.

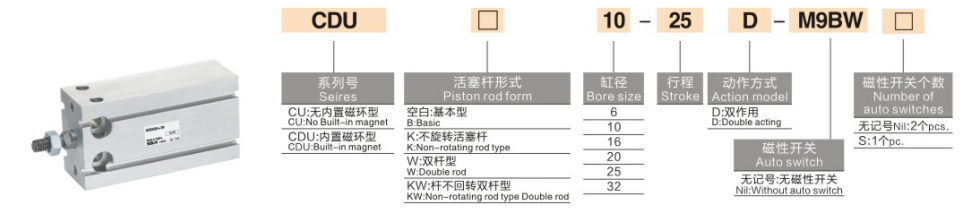

1. Exemplum ：CDU16×30S
-- CDU: Series name, C=structum in magnete; K=non-roq; W = duplex virga
-- 16: Bore size (mm):6,10,16,20,25,32
-- 30 : Plaga longitudo (mm)
-- S: Standard specification
|
Parameter |
Specification |
| Bore Size |
6,10,16,20,25,32 mm |
| Standard Stroke |
5~60mm |
| Agens Type |
Duplex agens (default); unum agens vere reditus / ex extend |
| Operans Pressura |
Duplex agens: 0.05~0.7MPa; Unius agendi: 0.15~0.7MPa |
| Probatur Pressura |
1.05 MPa |
| Temperature |
-10 ~ 60℃ (nullum glaciem in aere) |
| Piston Speed |
50~500 mm/s |
| Pulvinar |
Certum rubber quiddam utrimque |
| Portus Thread |
M5×0.8 (φ6/10); PT1/8 (φ16~32) |
| Lubricatio |
Oleum libero operandi |
|
Bore (mm) |
Mitte / excute Area |
0.2MPa |
0.4MPa |
0.6MPa |
0.7MPa |
|
6 |
28.3 / 25.4 |
5.7 / 5.1 |
11.3 / 10.2 |
17.0 / 15.2 |
19.8 / 17.8 |
|
10 |
78.5 / 70.7 |
15.7 / 14.1 |
31.4 / 28.3 |
47.1 / 42.4 |
54.9 / 49.5 |
|
16 |
201,1 / 181.0 |
40.2 / 36.2 |
80.4 / 72.4 |
120.7/ 108.6 |
140.8 / 126.7 |
|
20 |
314.2 / 282.7 |
62.8 / 56.5 |
125.7 / 113.1 |
188.5 / 169.6 |
219.9 / 197.9 |
|
25 |
490.9 / 452.4 |
98.2 / 90.5 |
196.4 / 181.0 |
294.5 / 271.4 |
343.6 / 316.7 |
|
32 |
804.2 / 754.8 |
160.8 / 151.0 |
321.7 / 301.9 |
482.5 / 452.9 |
562.9 / 528.4 |
-- 3C & semiconductor microform jig, spissamentum, torcular decorum;
- Automatio generalis clamping, positio et commutatio materialis;
-- Domus appliance & ferramenta conventus; sarcina levis sarcina genus armorum.
SOLH CU/CDU rectangulum liberum montem pneumaticum cylindricum sustinet institutionem multi-anguli uncis inclusi, cum variantibus non-rotating et duplicato baculo ducendo, late pro brevi ictu levis automationis positionis et clamitionis adhibita.
