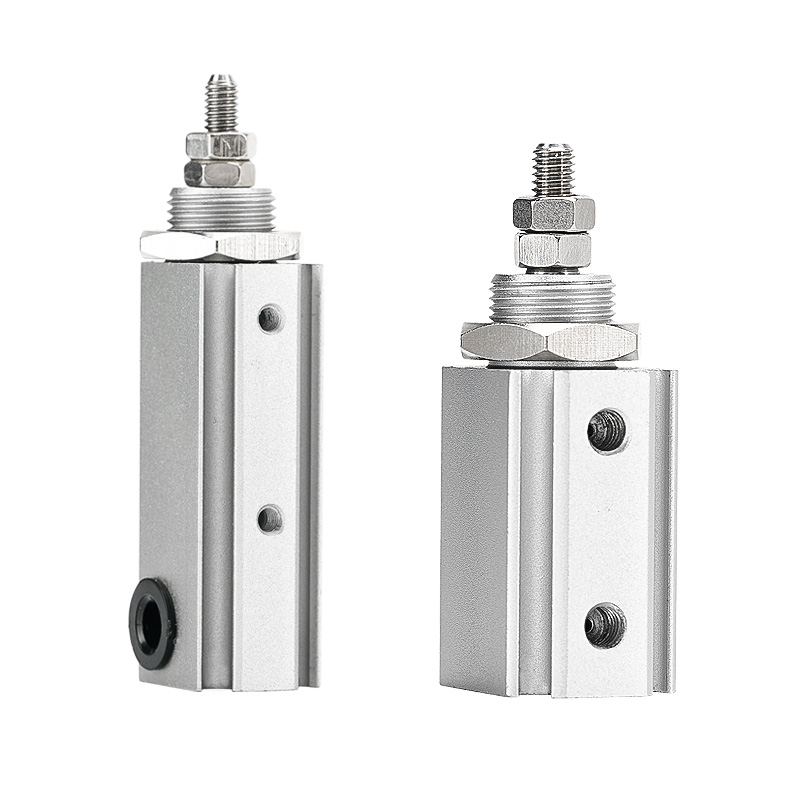

CJP2 Series Pin Cylinder (Double Acting)

CJP2 Series Double Acting Pin Cylinder (Compact Micro Cylinder)

Brand: SOLH by Richge Technology

Product Overview

     SOLH CJP2 series cylindri acu duplicata compacta est. Core commoda: ultra-brevi corpus, leve structura, firmum bidirectional impulsus et certa operatio summus frequentia. Disposuerat ad praecisionem bidirectionis motus pulsus-trahere intra spatium coarctatum, onera media micro et statio automated summus cyclus. Exemplar amet est applicationes bidirectionales microform lineares incessus.

Core Structure & Design Features

     -- Coegi Modus: Duplex agens (aeris copia pro ictum extensum et retractandum). Portabat range: Ø4 / 6 / 10 / 16mm, microform ad parvas payloads tegens.

     -- Structura: aluminium corpus extructum (ex versione aenea traditum) 55%~ 65% levius pondus. Pulvinaria iuvantis instructi utrinque ad impulsum et strepitum redigere.

     -- Versatile Ascensus: 6 configurationes ascendentes praesto: genus fundamentale, panel mons, mons flange, mons pedis, mons trunnion et mons clevis ad institutionem multi-orientationis.

     -- Sensor Compatibilitas: Omnes specificationes cum anulo magnetico constructae, sustentationem institutionem duarum virgarum magneticarum, inter minima -4 borem & 5mm ictum sine uncis extra.

     -- Material & signatio: Aluminium durum anodized + NBR sigilla, operatio olei libera, ad ambitus mundis vel leviter oleosis aptus. Mechanica ministerium vitae ≥3 decies centena millia circuitus.

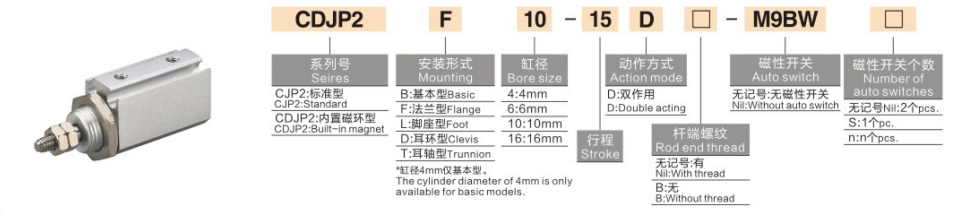

Complete Model Coding Regula

  1. Exemplar Exemplum：CDJP2B10-15D-M9B

   2. Exempla Latin Order Reference

     -- CJP2B6-20D：Bore 6, plaga 20, genus basicum agens duplex, anulus magneticus nullus

     -- CDJP2F4-10D：Bore 4, i

     -- CDJP2B16-30D-2M9B：Bore 16, plaga 30, typum basicum instructum duabus virgas M9B

Universal Core Technical Specifications (@0.5MPa, Duplex Agens)

Core Aliquam Commoda

   1. ultra-brevis leve corpus

     -- Super longitudo abbreviata 6~9.5mm cum exemplari CJP legato comparatum, pondus imminutum 55%~65%, perfectum ad institutionem ultra-conclusam.

   2. Stabilis bidirectional output

     -- Duplex consilium agens sine reditu vere. Impulsus bidirectionalis 30%~50% altior est quam aequipollens cylindrorum unico agenti, ad 100g ~ 5kg payloads aptus.

   3. High frequency & humilis sonitus operatio

     -- Flexilis cervical + obsignatio humilis friction. Celeritas operans 50~500mm/s, supra 200cpm stabile, ictum sonum ≤60dB.

   4. Multiplex adscendens & plenam anulum magneticum vexillum

     - 6 Formae ascendentes aptae instrumentis multiplicibus. Anulus magneticus omnibus magnitudinibus instructus, etiam minimum -4 sustinet virgas magneticas duplices pro opportunitate loci vigilantia.

   5. Oil-liberum consilio & diu servitio vitae

     -- Compatible with clean linee production. Aluminium induratum corpus et sigilla obsistentia gerunt operationem stabilem supra ≥3 decies centena milia cyclorum obtinent.

Adscendens Options & Typical Industrial Applications

    1. Adscendens species

     -- Basic Type (B): Filum externum axiale determinatio rectae dis-pullo

     -- Panel Type (F): Corpus instrumenti tabulae infixae pro ultra-tenuis extensionis

     -- Flange Type (L): LABIUM LABIUM latus fixing applicationes ad vertical onus

     -- Pes Type (T): Mons pedis imo ad dis-pullum lateralis horizontalis

   2. Typicam Application missiones

     -- 3C Electronics: Micro component tenacissimum, chip eiectum, conjunctionem vetustatem test, minima figura incessus

     -- Precision Equipment: valvae Micro mutandi, fibra positionis, instrumenti temperatio tenuis, actus lapsus exiguus

     -- General Automation: High-frequency loading/unloading, label decorticatio, brevis plaga workpiece translationis

     -- Devices medicae: Instrumentum parvum motus telescopici, propulsio fluidi micro, praecisio conventus positio

Electio Comparison: CJP2 VS CJ1 VS CJP Micro cylindrici

III-Step Fast Electio Guide

   1. tulit lectio secundum payload

     -- 4 ≤0.5kg；Ø6=0.5~1kg；Ø10=1~3kg；Ø16=3~5kg. Subsidium ≥30% margine salus.

  2. Confirmatio Stroke

     -- Plaga elige secundum requisitam peregrinationem; prioritize breviores ictus pro stabili frequentia summus revolutio.

   3. configurationis matching

     -- Positiones clausae-loop control: Equip duas M9B magneticae virgas pro positione bidirectionali feedback.

     -- Installation layout: Panel type (F) pro instrumento embedded; typum fundamentalem (B) ad ecclesiam axialem stamineam.

Una sententia Summarium

     SOLH CJP2 compactum cylindricum pneumaticum clavum agens duplex lineamenta corporis leve ultra breves, fixurae bidirectionales stabilis, pulvinus Flexilis et 6 variantes ascendentes; CDJP2 versio in anulo magnetico constructo compatitur cum M9 series virgarum, specimen Micro linearis actus bidirectionalis pro brevi ictu dis-traho munia in 3C, praecisione instrumentorum et instrumentorum medicorum automationum.
