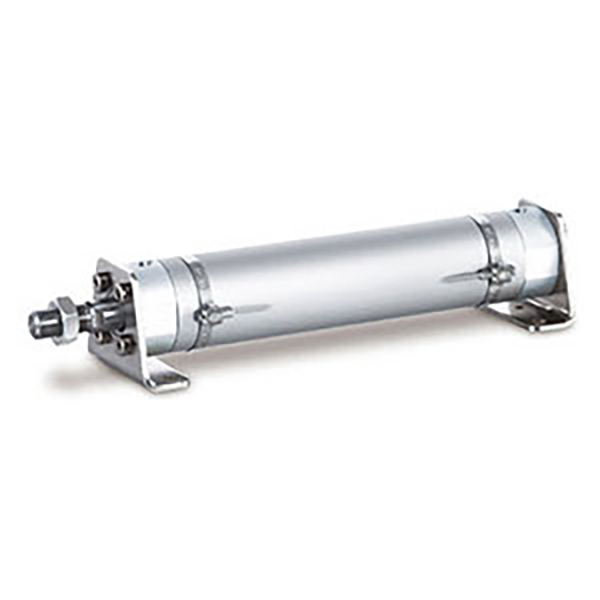

SOLH CG1/CDG1 aluminii leve pondus rotundum cylindricum, successor φ20~100mm, substituens seriem SMC CA1 annorum, cum dimensionibus ascendentibus plene convertibilibus. Features: leves, universales institutiones, flexilis limbis layout, strepitus humilis & celeritas princeps effectus. Late usus est in TRADUCTOR linearum automationum, instrumentorum electronicarum, machinarum sarcinarum, instrumentorum levis industriae ad lucem & medium onus, longum vulnus ac frequentia reciproce applicationes.
1. Standard: Nova generatio SMC leve pondus rotundum cylindricum, postea directum pro series CA1.
Materia: Aluminium extrusum dolium & pileos nis, chrome patella anconaria dura. 30% levior quam vexillum institutum cylindrici, altum robur et bonum caloris dissipatio.
3. Structura: Fila capsarum finis clausa, figura recta rotunda, facilis disassembly & sustentatio. 4 portus caeli directionales (90° intervallum), dispositio limbis valde flexibilis.
4. Operatio Variantes
-- CG1B Duplex agens: Aeris copia in utraque parte, exemplar maxime commune
-- CG1S / CG1T Single agens: S=Ver reditus; T = Spring extendunt, automatic reset post aerem abscise
-- CG1W Duplex Rod: Virgula utrinque extensa, motus synchroni, auctus capacitatis anti-torsionis
-- CG1K Non-Rotating Rod: Anconae hexagonale pro certa positione et anti-torquent
4. Cushion: Latin rubber pulvinus; pulvinum aeris (suffixis A) ad libitum reducere impulsum et strepitum sub alta celeritate.
5. Obsignatio: Sigillum Belgicum compositum cum sulco piscine olei, pressus satus humilis, operatio olei libera, servitium vitae ≥8 decies centena milia circuitus.
6. Positio Detectio: CDG1 instructa anulo magnetico constructo, compatibilis cum M9B/A93/Z73 auto permutat pro piston positionis feedback; CG1 sine magnete, permutationes magneticae instituere non possunt.

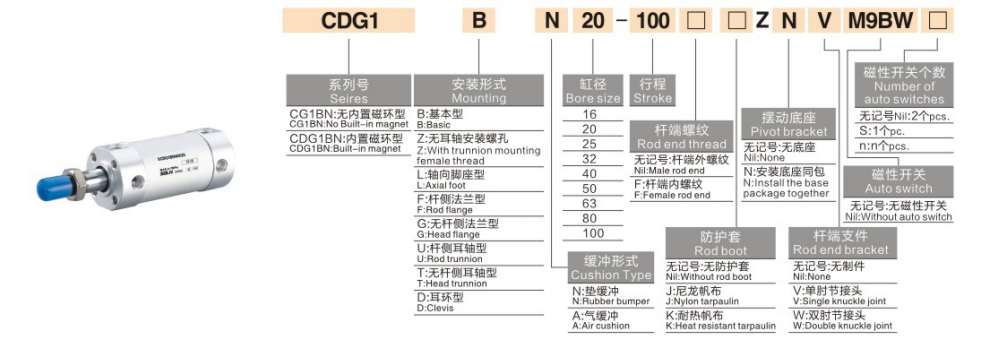

1. Exemplar Exemplum：CDG1BN25-100Z
|
Segmentum |
Code |
Definition |
| CG1 / CDG1 |
Series Codicis |
CG1 = Sine annulum magneticum CDG1 = inaedificata magnetico anulo |
| B/S/T/W/K |
Actio Type |
B = Duplex Actus S=Single agens Spring Redi T=Agens Spring Extende W = Geminus Rod K = Non-Rotating Rod |
|
N |
Virga finem Thread |
N=Female thread (vexillum); blank = masculum filum |
| 20/25/32/40/50/63/80/100 |
Bore Size (mm) |
φ20 ~ φ100 |
|
100 |
Longitudo plaga |
Duplex agens Max.1000mm Max.300mm una agendi |
|
Z |
Versionem Codicis |
Z=New standard version; blank = vetus version |
2. Exempla Latin Order Reference
-- CDG1BN32-200Z：Bore32, plaga 200, duplex agens, constructum in magnete, filum virga feminina
-- CDG1S40-100Z：Bore40, stroke 100, actus fons reditus unus, constructus in magnete
-- CDG1K50-150Z：Bore50, stroke 150, non rotatus anconis hexagonalis
|
Parameter Item |
Standard Specification |
| Bore Range |
φ20,25,32,40,50,63,80,100 mm |
| Operans Pressura |
Duplex agens: 0.05~1.0MPa Unius agendi: 0.1~1.0MPa |
| Probatur Pressura |
1.5 MPa |
| Ambiens Temperature |
-10 ~ +70℃；-10~ +60℃ ad exemplar magnetis instructum |
| Piston Speed |
50 ~ 1000 mm/s；50~700mm/s pro pulvino aere; |
| Pulvinar |
Flexilis Latin pulvinar; Pulvinar caeli (A) ad libitum |
| Air Portus Thread |
RC1/8 (φ20/25/32/40), RC1/4 (φ50/63), RC3/8 (φ80), RC1/2 (φ100) |
| Lubricatio |
Pre-ungi, oleum liberum operationem suscepit |
| Plaga Tolerantia |
≤1000mm: ±1.4 mm；1000~1500mm: ±1.8 mm |
1. Duplex Actus CG1B
|
Bore (mm) |
Mitte (N) |
Trahere Force (N) |
Proxime. Horizontalis Lond (kg) |
|
20 |
157 |
141 |
7.8 |
|
25 |
245 |
220 |
12.2 |
|
32 |
402 |
362 |
20.1 |
|
40 |
628 |
565 |
31.4 |
|
50 |
981 |
882 |
49.0 |
|
63 |
1559 |
1413 |
77.9 |
|
80 |
2513 |
2262 |
125.6 |
|
100 |
3927 |
3534 |
196.3 |
2. Single agens CG1S (Ver Redi @0.5MPa)
| Bore (mm) |
Mitte (N) |
Ver Redi Force (N) |
Proxime. Horizontalis Lond (kg) |
|
20 |
145 |
25 |
7.2 |
|
25 |
230 |
40 |
11.5 |
|
32 |
380 |
65 |
19.0 |
|
40 |
600 |
100 |
30.0 |
|
50 |
940 |
150 |
47.0 |
|
63 |
1500 |
240 |
75.0 |
|
80 |
2450 |
380 |
122.5 |
|
100 |
3850 |
600 |
192.5 |

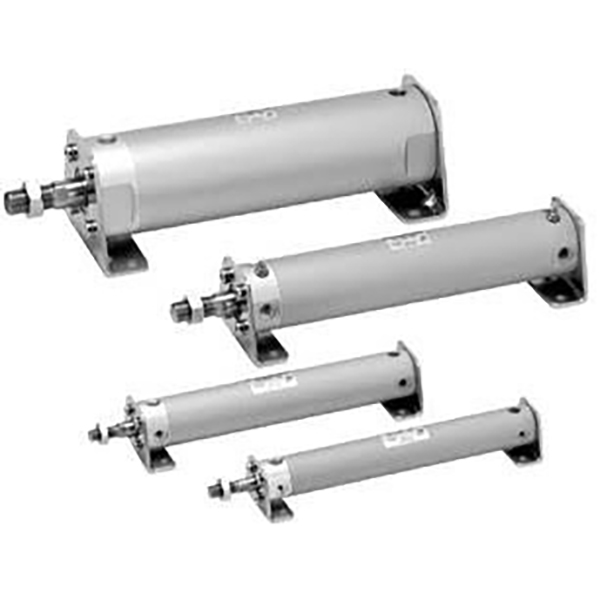

1. Adscendens Options
-- B Basic Type: Direct institutionem per finem cap relatorum (plerumque)
-- L Pes Mount: Axial foot bracket for side mounting
-- F/G Flange: Rod-side/lamina capitis lateris figens
-- C/D Clevis: Single clevis/duplex clevis ad adductius mechanism
-- E Trunnion : Caput trunnion mons pro turnover & adductius motu
2. Main Derivative Series
-- CDG1B: Latin duplex agens in magnete constructum
-- CDG1S/T: Single agens ver reditum/ver extend
-- CDG1W: Duplex virga duplex agendi
-- CDG1K: Non rotating ANCON sexangulae
-- CDG1R: Slim directi montis versio pro stricto spatio axiali
-- CDG1KR: Direct mons + virga non-rolata duplex agens
1. Bore delectu: Calculate intrude & onera horizontali, reservate ≥50% marginem salutem; prioritize CG1 ad medium onus leve et applicationes longitudinis.
2. Plaga confirmationis: Add extra 10~ 20mm marginem peregrinationis; Plaga max: duplex agens ≤1000mm, una agendi ≤300mm.
3. Configurationis adaptatio
-- Operatio : duplex agens → B ; unius actus vere reditus → s ; K * → postulationem anti-torquent
-- Cushion: Add que A celiculum aeris cum celeritate operating＞500mm/s
-- Position feedback: Elige CDG1 magnetem exemplar instructum, par M9B/A93 auto permutat
SOLH CG1/CDG1 aluminium leve rotundum cylindricum plene convertitur cum seriei SMC CA1, leve consilium cum multi- verso limbo, multiplex electionibus inscensibus, specimen longi-icti linearis actuatoris ad lineas productiones, TRADUCTOR et electronic automationis linearum productionis.
