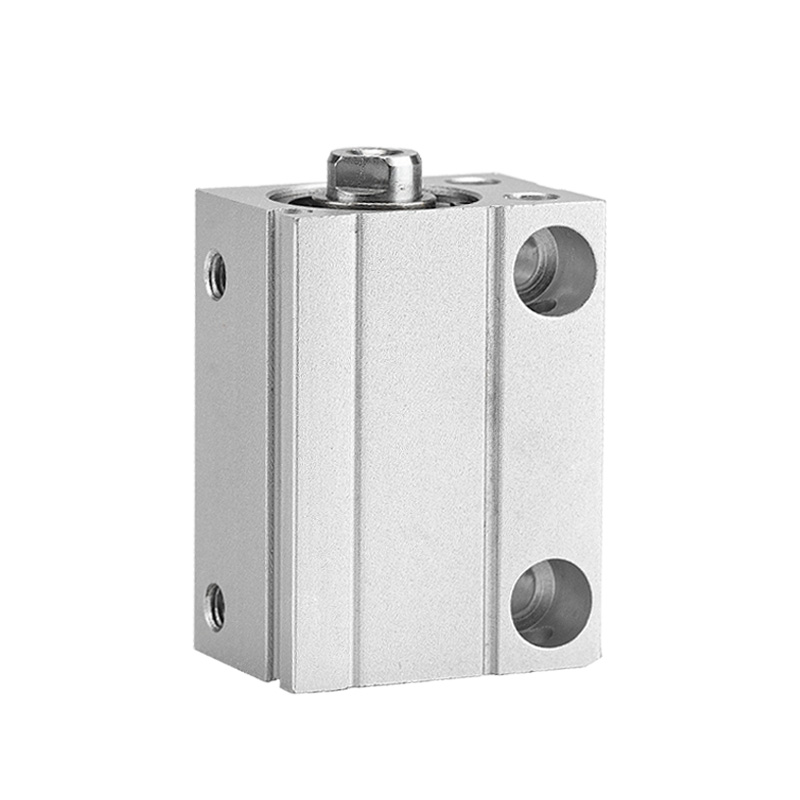

SOLH CDUJB series ultra-minium liberum cylindri montis designatum est instrumenti ad spatium institutionis limitatum. Cum seriei CU vexillum comparata, altiore longitudine minuitur 64% et volumen 70% incisum est. Corpus compactum quadratum multi-superficiem directam sine uncis ascendentem permittit. CDUJB constructo in magnete ad locum deprehendendi instructum. Late in 3C electronicis, instrumentis medicis et automationis semiconductoris praecisione adhibitis.
|
Model |
Features |
Applicationem |
| CUJB |
Sine anulo magnete, nullo adscendente sensore |
Low-cost Micro leve onus sine positione feedback |
| CDUJB |
In magnete inaedificata, compatitur cum CMSH/DMSH, D-M9BV virgas |
Ictum positio signum requirit Automation |
| CDUJS |
Mundus versio, materia aeris libera |
Medicinae fabrica, semiconductor locus mundus |
-- Super compacto corpore quadrato, denso extensione apto et immerso;
-- Multi-lateribus foraminibus escendentibus deorsum, facie et parte et fine, ab quavis orientatione institue;
-- In magnete inaedificata (CDUJB), sensoria dualis foramina ad detectionem extend/retractationem positionis;
-- MU-S025 scutum magneticum ad libitum ad vitandum mutuum impedimentum pro cylindris arcte dispositis;
-- Libitum Flexilis pulvinus finis ad minuendum impulsum pro minimis workpieces;
-- CDUJS designatio aeris liberat, praecipitatio metallum vitat pro ambitu mundi.

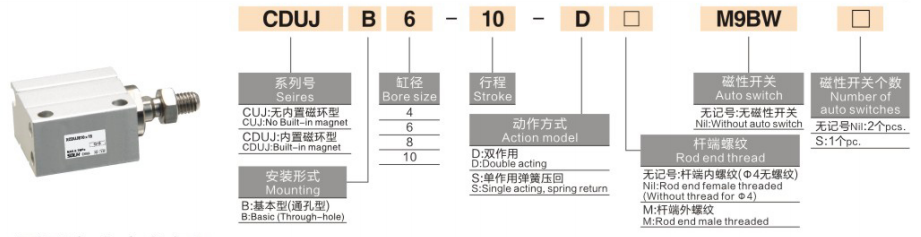

1. Exemplum: CDUJB8×15D-M
-- CDUJB: Series code (C = constructum in magnete; CUJB = non magnete)
-- 8: Bore size (mm): 4,6,8,10,12,16,20
-- 15: Plaga longitudo (mm)
-- D: Duplex agens; S: Single agens vere reditus
-- M: Externi stamina virga; nulla nota = filum internum; φ4/φ6 sine filo virgae
|
Parameter |
Specification |
| Bore Size |
4,6,8,6,0,0,5 mm |
| Standard Stroke |
4/6/8/10:4~30mm; 12/16:5~30mm; |
| Agens Type |
Duplex agens (praecipuum), unum agens fons reditus |
| Operans Pressura |
Duplex agens: 0.15~0.7MPa(φ4/φ6);0.1~0.7MPa(≥φ8) ; Unius agendi: 0.35~ 0.7MPa (φ4) |
| Probatur Pressura |
1.0 MPa |
| Temperature Range |
Non-magnis: -10~70℃; Magnes versio: -10~60℃ |
| Piston Speed |
50~500 mm/s |
| Pulvinar |
Nulla pulvinar / rubber quiddam libitum |
| Portus Thread |
M3×0.5 (φ4/φ6); M5×0.8 (φ8/φ10) |
| Lubricatio |
Oleum libero operandi |
| Plaga Tolerantia |
±0.5 mm |
|
Bore (mm) |
Area (mm²) |
0.2MPa |
0.4MPa |
0.6MPa |
0.7MPa |
|
4 |
12.6 |
2.5 |
5.0 |
7.6 |
8.8 |
|
6 |
28.3 |
5.7 |
11.3 |
17.0 |
19.8 |
|
8 |
50.3 |
10.1 |
20.1 |
30.2 |
35.2 |
|
10 |
78.5 |
15.7 |
31.4 |
47.1 |
54.9 |
|
12 |
113.1 |
22.6 |
45.2 |
67.9 |
79.2 |
|
16 |
201.1 |
40.2 |
80.4 |
120.7 |
140.8 |
|
20 |
314.2 |
62.8 |
125.7 |
188.5 |
219.9 |
Typical Applications
-- 3C electronics microform jig, chip translation, connector insertio;
-- Medical instrument processui sample, micro propellentibus mechanismum;
-- Semiconductor laganum situm, cubiculum miniaturarum actuatoris mundissimum;
-- Automatio spissamentum, brevis plaga clammationis et positionis.
Electio Admonitiones
-- Non apta ad grave latus cinguli onus; adde dux, si vis lateralis exstat.
-- Scutum magneticum bracteae requiritur cum plures cylindrici iuxta partem installantur.
SOLH CDUJB ultra compactum liberum montem pneumaticum cylindricum dat multi- plicationem bracketless institutionem, idealem actuatorem Micro lineari-spatii praecisionis automationis in 3C, medicae et semiconductoris industriae.
