Brand: SOLH by Richge Technology

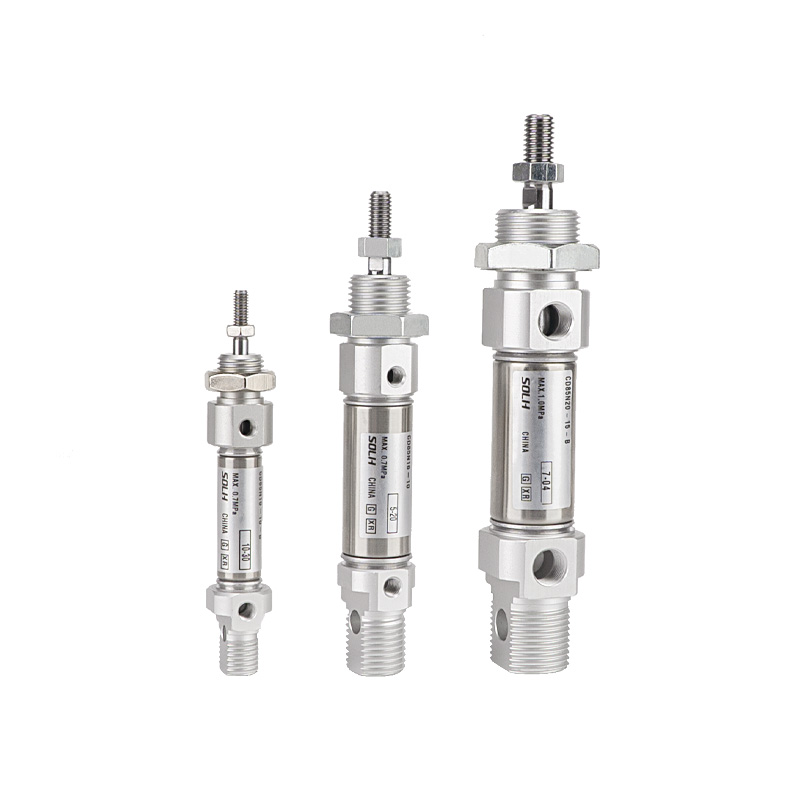

SOLH C85 series chalybs immaculata mini cylindrici obsequitur cum signo internationali ISO 6432, range φ8~25mm gerebat. Features: forma compacta, repugnantia corrosio, summus celeritas & summus frequentia effectus, oleum liberum operationem. In cibo, pharmaceutica, electronica et generali instrumento automation pneumatico late explicantur.
1. Vexillum: ISO 6432 (φ8–φ25), universalis dimensiones ascendens pro mercato mini cylindrico globali.
2. Materia: dolium ferro immaculatum 304 ancon et cincinnus nux; aerugo-probatio, apta humidis, infirmis acidis et debi- libus conditionibus operandis.
3. Structura: pilei extremitatis roll-oentes, virga ligaturae liberae, figurae cylindricae rectae, parvi ponderis et leve.
4. Operatio Variantes
-- Una virga duplex agendi (Latin)
-- Single agens (ver reditum / ver extend)
-- Duplex virga synchrona cylindri
- C85K Non rotating genus
5. Cushion: Latin rubber pulvinus; pulvinus aeris (suffixis C) libitum pro φ10-25 reducere impulsum sub motu magno celeritatis.
6. Obsignatio: Sigillum bidirectionale speciale cum sulcus olei, pressionis initiorum humilis, longae servitutis vita sub conditione olei liberae operationis.
7. Detectio: Inaedificata in anulo magnetico (code D) ad libitum; magneticae switch modi institutionem: A=track groove, B=steel band sulcus.
1. Exemplar Exemplum：CD85N25-100C-B
|
Segmentum |
Code |
Definition |
| C85 |
Basis Series |
mini intemerata cylindrica ISO6432 |
|
D |
Magnes Option |
D = Inaedificata anulo magnetico; Blank = No magnet |
| N/F/E/K |
Codex varians |
N = Basic type integrated Clevis F = Flat genus finem E = Singulus agens K = Non rotating virga |
|
25 |
Bore Size (mm) |
8,10,12,16,20,25 |
|
100 |
Longitudo plaga |
Maximilianus. 400mm pro duplici agendi |
|
C |
Pulvinar |
Blank=pulvinar Rubber; C = Aeris pulvinus (φ10 ~ XXV praesto) |
|
B |
Mons switch |
A=Track sulcus; B=Steel band sulcus |
2. Order Reference Example：CD85N16-50
-- Basic type, bore 16, stroke 50, built-in magnet, rubber cervical.
|
Parameter Item |
Specification |
| Bore Sizes |
φ8,10,12,0,5,28 mm |
| Operans Pressura |
0.1-1.0MPa; Minimum startup pressura: 0.05MPa |
| Probatur Pressura |
1.5MPa |
| Ambiens Temperature |
-10~+70℃；-10~+60℃ ad exemplar magnetis instructum |
| Piston Speed |
50-1500mm/s, apta reciproco frequentia alta |
| Pulvinar |
Flexilis Latin pulvinar; pulvinar caeli ad libitum (φ10-25) |
| Air Portus Thread |
M5×0.8 (φ8-16); G1/8 (φ20-25) |
| Lubricatio |
Pre-ungi, oleum liberum operationem suscepit |
| Plaga Tolerantia |
±1.0 mm |
| Bore (mm) |
Mitte (N) |
Trahere Force (N) |
Relatio Horizontalis Lond (kg) |
|
8 |
30 |
27 |
1.5 |
| 10 |
47 |
43 |
2.3 |
| 12 |
68 |
62 |
3.4 |
| 16 |
121 |
110 |
6.0 |
| 20 |
188 |
172 |
9.4 |
| 25 |
294 |
270 |
14.7 |
1. ISO6432 Adscendens Options
-- N: Basic type with integrated clevis (Most Popular)
-- F: Finis axialis adscendens
-- L: Mons Singulus pes / M: pes duplex mons
-- G: Flange
-- NU: Trunnion clevis
2. Main Derivative Versions
-- CD85: In anulo magnetico constructo, compatibilis cum sensoriis magneticis
-- C85K: Anconius quadratus non rotatus, odii torquent positioning
-- C85E: Single agens (ver reditus / ver extend)
-- CWCD85E: Duplex baculus duplex agens cylindrum, motum synchronum
Occasiones pro C85 anteposuit 1.
-- Cibum, industria pharmaceuticum & electronicum: Immaculatum chalybem, gradum mundum, anti-corrosion
-- High speed & high frequency cycles : 50-1500mm/s brevis plaga reciprocus
-- Foedus apparatui layout: φ8-25, corpus gracili cylindricum
-- Humid & leviter mordax officina environment
-- Global vicissitudo postulat: ISO6432 dimensio universalis pro reposito directo
1. Bore lectio: Calculate infige & onera horizontali, servate ≥50% marginem salutem; eligere minor peperit ad altiorem frequentiam operationem.
2. Plaga confirmationis: Add extra marginem 10-20mm; plaga maxima 400mm.
3. configurationis delectu
-- Inaedificata in magnete: adde codicem D
|
-- Anti-torquent postulationem: select K non-versio circumducitur
-- Compositus ascendens formam: N/F/L/M/G secundum apparatum structure
SOLH C85/CD85 ISO6432 chalybs mini- cula immaculata, cum SMC importata serie plene converti potest, celeritatem oleum liberum operationis altum sustinet, multiplices methodos ascendentes et virgam anti- gyrantem, specimen linearem actuatorem pro cibo, lineas productionis medicae et electronicae automatae.
