AR Series Pneumatica Pressure Regulator

SOLIH AR series pressionis pneumaticae regulator, pressionis aeris modularis compressus reducens valvam pro conventu FRL . Superfluum genus subsidii structura, nodi anti-solutions sui, corpus aluminium die jactum, in pressura METIOR portum constructum, bracket adscendens ad libitum. Exempla AR1000-AR5000 cum M5-1" portubus, pressionis range 0.05-0.85MPa, specimen cylindrici, solenoidis valvae et officinae pressionis pipelini stabilizationis.

Mitte Inquisitionem

depictio producti

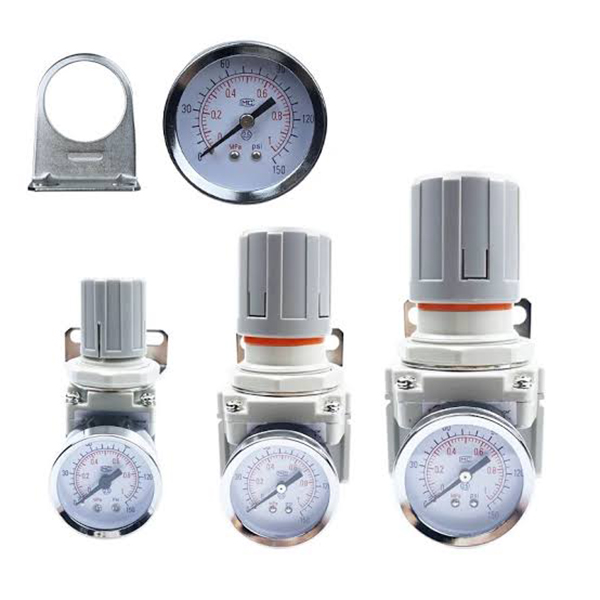

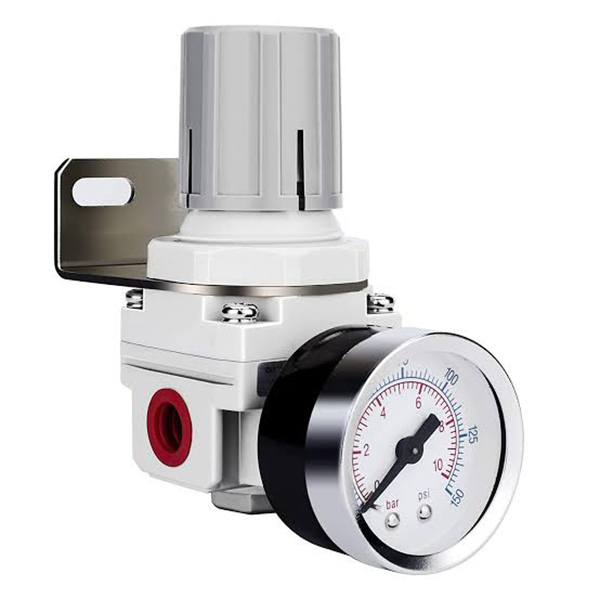

AR Series Pneumatica Pressure Regulator | SOLIH Modular Cogo Aeris Pressura Reducing Valvae

Brand: SOLH by Richge Technology | Standard Modular Air Source Pressure Control Unit "

1. Product Overview

SOLIH AR‑series est norma pneumatica principii pressionis aeris moderantis ad pressionis reductionem et stabilizationem aeris compressi destinata. Module componi potest cum AF aeris colum et AL lubricator ad aedificandum AC duo unitates vel tres unitates FRL conciliabula. Late explicuit pro pressione principii aeris potestatem in apparatu automation, instrumenta machinae et linearum conventus productionis.

2. Specificationes generales technicae

Parameter Item	Specification
Locum Liquor	Cogo Air
Maximilianus. Opus Pressura	1.0MPa
Probatur Pressura	1.5MPa
Ambiens Temperature Range	-5℃ ~ 60℃
Pressura Adjusting dolor	AR1000: 0.05 ~ 0.7MPa AR2000 & supra: 0.05 ~ 0.85MPa
Internum Structure	Overflow‑type (relevamen functionis), nodi commensuratio, sui densis anti‑solvens

3. Exemplar & Portus Location Range

Exemplar	Portus Location	Influunt Level
AR1000	M5×0.8	Microsize low flow
AR2000	1/4"	Medium fluere
AR3000	1/4", 3/8"	Medium flow
AR4000	3/8", 1/2", 3/4".	Medium magnum fluxus
AR5000	3/4", 1"	Magna fluxus

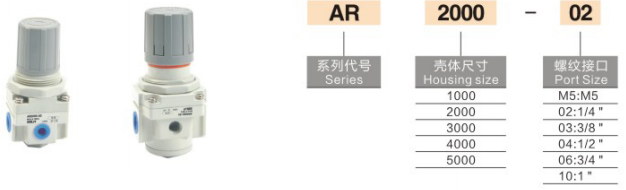

Exemplar Code Explicatio & Exempla

• AR200002

￮ AR: Pressura Regulator

￮ 2000: Series size

￮ 02: Portus amplitudo 1/4"

• AR200002G: Regulator instructum pressura METIOR

• Bracket / panel-mons institutionem praesto ad libitum adscendens possessor

4. Features Structural & Commoda

• Self-densis De revolutionibus Knob：Efficaciter prohibet pressura offset et summa causatur per tremorem vel tactum fortuitum.

• Built‑in Overflow Solamen Structure：Jejunium responsum et stabile coactionis pressionis sub condiciones fluxus fluctuantes.

• Die‑cast Aluminium Alloy Corpus：Levis ponderis structura cum alta durabilitate mechanica.

• Modular Splice‑able Design：Directe conveniunt cum AF colum et AL lubricator pro junctionibus FRL.

• Latin Pressura Gauge Portus：Commodum est ad rectam institutionem coniecturam sine adaptoribus extra.

5 Typicam Application missiones

• Pressura fluminis de stabilizatione instrumenti automationis, cylindrici pneumatici et valvulae solenoidei

• Aer fons pressurae ordinatio ad lineas producendas, instrumenta machinae et machinae packaging

• Pressura imperium spargit apparatu et instrumenta manu pneumatica

• Centralized pressionem stabilientem ad officinam aeris compressi copia pipelines

6. Commendatur Air Circuit Combinationes

• Latin circuitus lubrica: AF Air Filter + AR Pressure Regulator + AL Lubricator

• Oleum liberum working conditioni: AF Air Filter + AR Pressure Regulator (sine AL lubricator)
