Notam:SOLH by Richge Technology

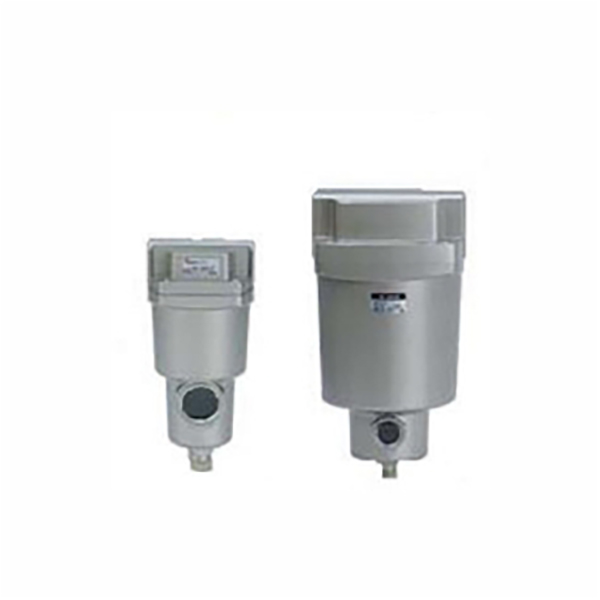

AFF and AM form the core combined air source purification conventus. AFF agit ut primarium colum asperum ad immunitates solidas et stillulas aquae condensatas tollendas, AM praecisio oleum separator ad eliminationem microsol olei aerosol, munditiam aeris compressi emendans et actuatores pneumaticos amni plene protegens.
1. AFF Series Main Line Crassum Filter
-- Filtratio praecisio: 1μm, 99% particula rate captis (ex gradu veteri 3µm upgraded)
-- Core munus: Remove magnam pulverem, aeruginem obrutam et molem aquae condensatam, 99% aquarum separationem efficientiam sicut frontem primariam filtration
-- Mundicies standard: ISO8573-1:2010 [4:7:4]
2. AM Series Oil Nubila Separator (Fine Filter)
-- Filtration praecisio: 0.1μm, 99% caligo oleum micro rate captans (upgraded e gradu vetus 0.3μm)
-- Core munus: Perficere oleum caligo separationis, exitus olei residua concentratio ≤1mg/m³ (0.8ppm), plene obsecundans cum processu requisito olei-liberi lubricationis
-- Mundicies standard: ISO8573-1:2010 [2:7:3]
3. Communes Communia
-- Ultra-low pressionis gutta ≤5kPa, industria salutaris, capacitas augetur per exempla conventionales 20% vs
- Leve intemeratum chalybem liquidum phialam repositionis, maximum pondus reductionis usque ad 52%
-- Visual sustentationem commonitorium: vexillum constructum-in elog indicator cum rubeo anulo ad iudicem colum postea leo; color-coded filter fine caps pro velox exemplar idem
-- Cascades consilium modulari, serially coniungi possunt cum AMD / AMH ultra-subtiles Filtra ut obviam exigentiis aeris multi gradus ultra-mundi

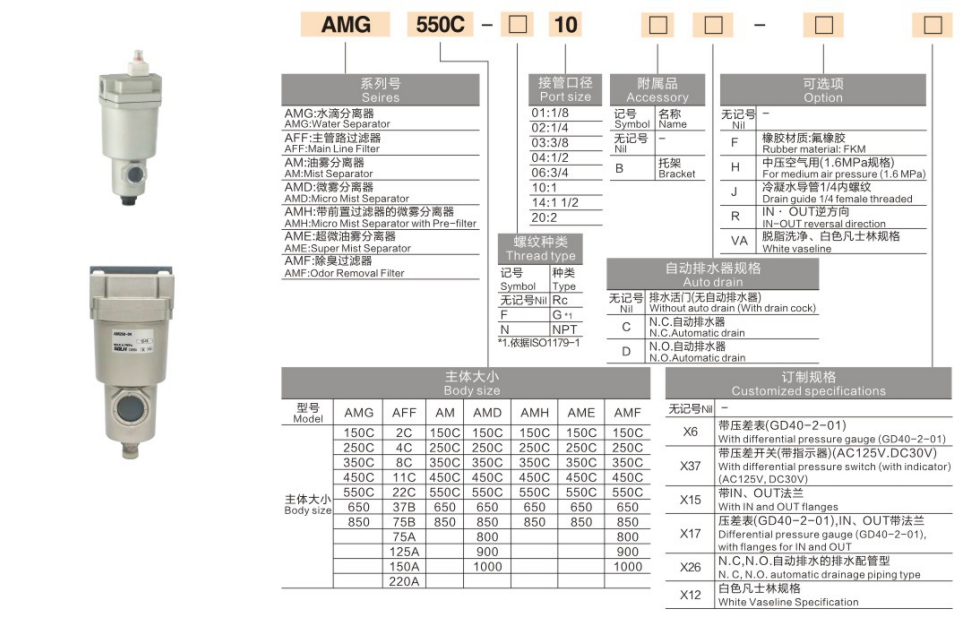

1. Exemplum exemplum: AFF40-04 ; AM50-10D
|
Code Segmentum |
Definitio Descriptio |
| AFF / AM |
Series identificatrix / / AFF = linea principalis stragularum colum / AM = Olei caligo tenuis separator |
| 20/30/40/50/60/70D/80D/90D |
Frame size code, respondentem maximum fluxum rated |
| 02 / 04 / 06 / 10 / 14 |
Portus stamina magnitudine. 02=1/4", 04=1/2", 06=3/4", 10=1", 14=1.5". Sequelae optiones: Rc / G / NPT |
| -D |
Ad libitum que D = Northmanni Open Auto exhauriunt (incilia sine pressura aeris) |
2. Exempla Latin
-- AFF colum grossum, 1/2" portum, auto exhauriunt: AFF40-04D
-- AM oleum separator, 1" portum, auto exhauriunt: AM50-10D
-- High flow 7000 L/min, 1.5" port: AM70D-14
1. Communia Parametri
-- medium applicabile: aer compressus (prae-colum ≥40μm requiritur adverso flumine)
-- Operans pressura range: 0.1~1.0 MPa; ruptis probationem pressura 1.5 MPa
-- ambiens temperatus operans: -5 ~ 60℃ (formatio glaciei intus phiala)
-- Exhaurire configurationem: exhaurire Manual ut vexillum; Auto exhaurire libitum per que -D
2.Full Series flow & Dimension Parameter Table
|
Exemplar Code |
Max flow (L/min) |
Portus Thread Location |
Net Pondus (kg) |
Liquid Repono Volume (cm³) |
|
20 |
300 |
1/8", 1/4" |
0.19 |
8 |
|
30 |
750 |
1/4", 3/8" |
0.39 |
25 |
|
40 |
1500 |
1/4", 3/8", 1/2". |
0.79 |
45 |
|
50 |
2200 |
3/4", 1" |
1.23 |
100 |
|
60 |
3700 |
1" |
1.46 |
100 |
| 70D |
7000 |
1", 1.5". |
3.4 |
— |
| 80D |
11000 |
1.5" |
4.7 |
— |
| 90D |
14500 |
1.5", 2". |
5.0 |
— |
1. Filtration Grade Matching colui cultum
-- Circulus ordinarius generalis pneumaticus: AFF (1μm filtrum crassum) → pressio moderatrix → lubricator
-- Oil-free precision armorum automation: AFF → AM (0.1μm olei caligo separator) → armorum terminatio
-- Ultra alta munditia semiconductor / processus opticus: AFF → AM → AMD (0.01μm ultra-finem sparguntur)
2. O Margine Calculus
-- Lego exemplar cum fluxu aestimatorum 1.2~ 1.5 temporibus altior quam systematis totalis maximus aeris consumptio; fluxus cumulatur, efficaciam filtration minuet et pressionis detrimentum assequetur.
3. Exhaurire Modus Electio
- 24h sine continua productione, cede condensate alta: elige -D auto- dram versionem
- Intermittendi humilis-frequency apparatu: vexillum manual exhauriunt genus sufficient
4. Portus eu Principle
-- Constans filter port size with the main pipeline diameter; vitare reducing / augendae diametri ne extra pressura stilla.
-- Automatio industrialis generalis: instrumenta machinae CNC, cylindrici aeris, valvae solenoidei ante-finem aquae & olei remotionem
-- Cibus & pharmaceutica fabricatio: fons aëris olei gratuitus mundus ad vitandum productum contaminationem
-- 3C electronicarum officinae & efficiens: oleum oleum eliminare nebulam ne vitia superficies coatingat et coinquinationes accurate componentes
-- Aeris compressor post curationum ratio: cascaded cum refrigerated / adsorptionem aeris dryers ad upgrade altiore aeris puritate
|
Comparatio Item |
AFF Main Line Crassum Filter |
AM Oil Nubila Separator Fine Filter |
| Filtration Precision |
1μm, guttas & particulas solidas magnas removet |
0.1μm, oleum Micro obscurum separationis consecratum |
| Outlet Residua oleum |
Nulla oleum separationis munus |
≤1mg/m³ ultra-humilis RELICTUM oleum concentration |
| Institutionem Position |
Primum scaena post compressor aeris, circuitus aeris anterioris |
Post AFF vilis colum, ante praecisionem instrumenti terminalis |
| Core Function |
Primaria prae-filtration, amni protegere elementa subtilia colum |
Secundae praecisio purificationis, supple oleum liberum aerem compressum mundum |
SOLH AFF 1μm linea principalis crassa sparguntur et AM 0.1μm caligo separator forma cascadum modularis aeris purificationis unitatum cum plena 300~14500 L/min discursu, indicatorum visivae et auto- libitum exhaurire, obtemperans ISO8573-1 vexillum generale pneumaticum, cibi, medicinae, electronicum et oleum liberum aeris principii curationis spargens.
