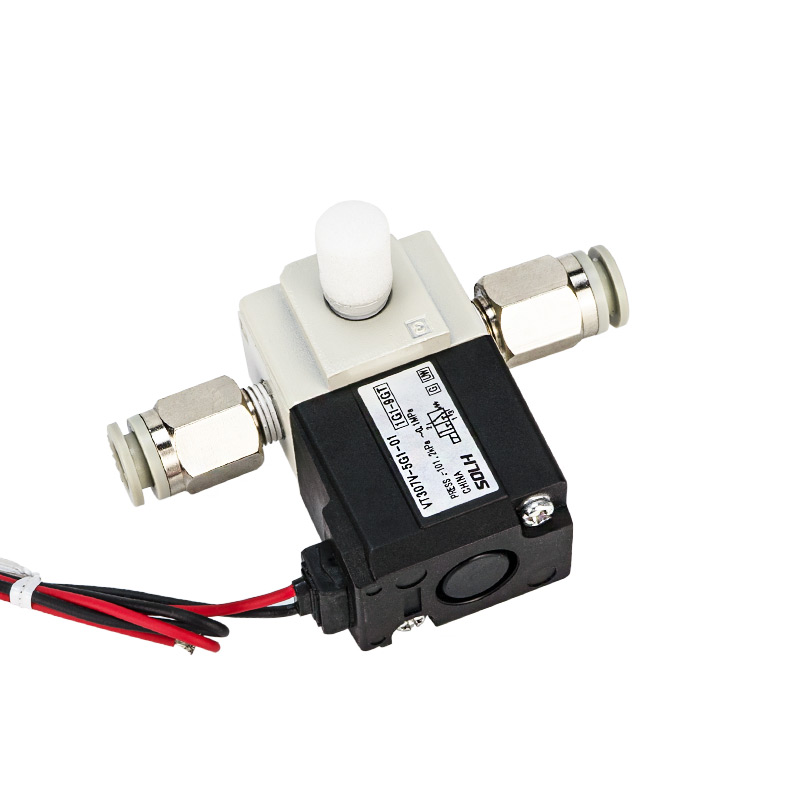

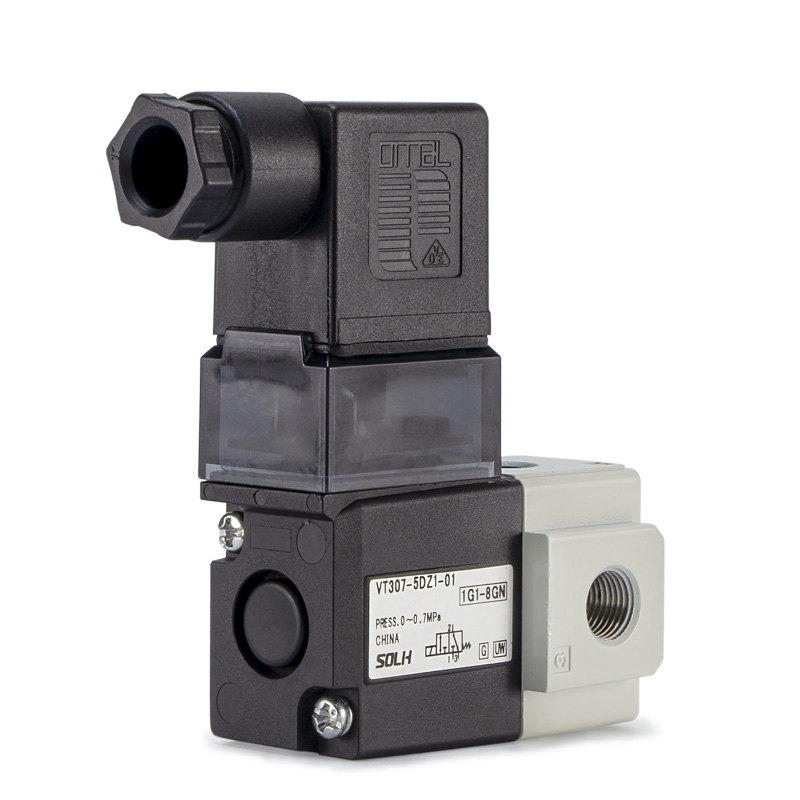

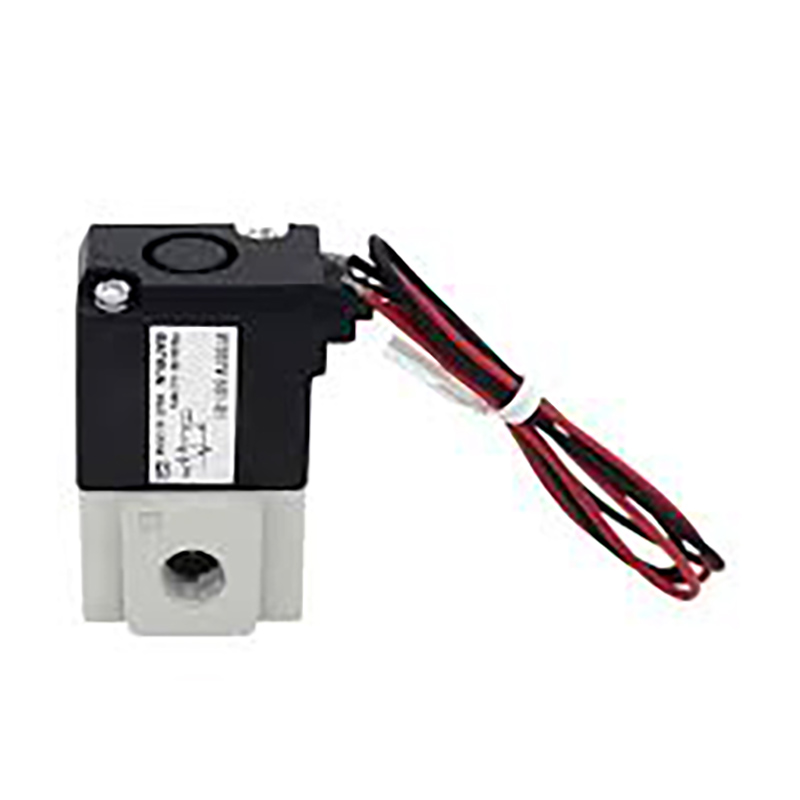

VT307 Series III Portus Solenoid Valvae - Direct Operated Type Poppet

Notam:SOLH by Richge Technology

Product Positioning

     VT307 series est directe agens poppet 3-portus valvae solenoidis aptatae structurae Flexilis elasticae obsignationis, applicabilis aere compresso et instrumentis gasi pigris. Satus nulla pressio sustinens, sub pressione positiva et plena vacui conditionibus fideliter operatur. Hoc valvae mini compactae sartor factus est propter crebras celeris commutationes missionum in pacto instrumentorum automationis.

Core Key Features

     --Nulla pressura startup design; operans positivum pressura range 0-0.7 MPa, vacuum range usque ad -101.2 kPa

     --Multi-functional convertable structure: Communiter Clausa (NC), Communiter Open (NO), fluunt selector, fluunt divisoris modi ad libitum

     --Ultra-celeriter responsum tempus ≤ 20 ms, maximum commutatione frequentiae usque ad 10 Hz pro summus cycli productionis linearum

     --Elastica mollia constructione signationis, plenae lubricationis liberae operationis ad sustentationem quod inposuit

     --Equipped with manual override button pro on-site debugging; mini corpus compactum sustinet multiplicem reclinationem installation4. Specificationes technicae · Valvae Structurae: 3-portus, genus poppetreum directum cum sigillo Flexilis elasticis.

     --Operating Pressure Range: Positivum pressionem 0-0.7 MPa; Vacuum -101.2 kPa ~ 0.1 MPa

     --Dynamic Performance: Responsio temporis ≤ 20 ms, max frequentiae operating 10 Hz, lubricationis-liberi design

     --Port Thread: Rc1/8, Rc1/4

     --Standard Coil Voltage: DC24V, AC110V, AC220V customizable

Typical Application missiones

     Coetus automatus lineae productionis, robotarum industrialium, cinematographicorum pneumaticorum, statio inspiratio aeris, adsorptiones adfixae vacuae, machinamenta sarcinae, instrumenta typographica, machinas processus textiles, apparatum processus cibi, valvae multiplices systemata moderandi integrata.

Una sententia Summarium

     SOLH VT307 directum agens poppetreum valvae solenoidis lineamenta nulla pressio startup, plenum vacuum compatibilitas, functiones multi- commutationes, celeri responsionis et gratuiti operationis sustentatione; Richge Technologia agit ut pars tua constantissima pneumatica supplementum pro omnibus industriarum automationibus.
