VM4 (VM400) Series Medium 3-Portus Poppet Valvae Mechanicae

Notam:SOLH by Richge Technology

Product Positioning

     VM4 (VM400) series media est amplitudo 3-portus poppet valvae mechanicae plene convertibilia cum exemplaribus originalibus SMC, inter mini VM1 et vexillum VM2-profluens series posita. Plenam extensionem operativam sustinet ab vacuo (-100kPa) usque ad 1.0MPa pressionis positivae cum portu Rc1/8 universali, lateris ima/imae limbis extensionis, constructione metalli robusti, vitae servitutis ultra-longae et actuatorii capitum permutabilium completarum. Late adoptatus est pro plaga limitis deprehensionis, quatii operandi manualis et in circuitibus interlock in communi instrumento automation.

Core Technical Specifications

  1. Vulgate General Parameters

     --  Codex Series: VM400 (nomen breve VM4)

     --  Circuitus Type: 3 /2- via; Plerumque XXXIV (NC vexillum), Northmanni Open (n ad libitum

     --  Structura: Poppetum directum agendi genus, stricta signatio, probatio pulveris, servitium vitae extensum

     --  Liquor applicabilis: Aer compressus, gas iners

     --  Pressura operans Range: -100kPa ~ 1.0MPa (vacuum compatibile, commodum super VM2)

     --  Ambiens & Medium Temperature: -5 ~ +60℃ (vico interno nullo permisso)

     --  Sequela Portus: Rc1/8 (01); optional NPT1/8 (N01), G1/8 (F01)

     --  Fluxus euismod: area sectionis efficax 7mm², Cv = 0.38

     --  Net Pondus: exemplar basis vexilli 110g

     --  Limbus propositum: Pars portus (01), portum imum (00)

     --  Lubricatio: Lubricatio liberorum; ISO VG32 Turbine oleum lubricationis ad libitum

     -- Max Switching Frequency: 60 cycles/min for pushbutton / cylindro actuatores; VI cycles / min pro nodi / electrix capitibus

     --  Concussa & Vibratio Resistentia: 1000m/s resistentia impact, 70m/s² tremor resistentia (gradus industrialis gravis)

  2. Super Dimensiones externae (mm)

     --  Versio Portus Partis: 18 30 57

     --  Imo port versio: 18 30 62

  3. 3-Portus Circuitus Definitio & Logica

     -- Portus 1(P): Praecipua aeris copia

     --  Portus 2(A): Imperium signum output port

     --  Portus 3(R): Exhaustum portum

     --  NC Communiter Clausa Logica: P decisa → Unactualis ab A, A connexa exhauriendi R; Post actum → P connectit cum A, A adimit, exhaurit R

Plena dolor convertuntur Actus Capita

  1. Rollerus Lever Type (Plenissimi enim Stroke Low Sensus)

     -- VM431: Standard POM plastic cylindro vectis

     -- VM431S: Ferreus cylindrus chalybs vecte ob gravem abrasionem renitentem continuam operationem

     -- VM432: Vectem cylindrus anti-incussus unus modus est ut contrarium felis misoperation

 2. Recta Plunger Type

     -- VM430: Exemplar basis Latin rectae lectionis, sustinet nativus speciales actus affectus

  3. Pushbutton & Fungorum tumultuarios Sistere Capita (Manual Jog & Safety Interlock)

     -- VM432: Flat standard pushbutton

     -- VM432Y: Summus turpis flavo fungus caput subitis stop

     -- VM432R: Red fungus subitis subsisto puga

     -- VM432G: Green indicator pushbutton

  4. Knob / Selector / Lockable Salutis Actuators

     -- VM434: 2-positio / 3-positio in gyratorius selector nodi

     -- VM435: Lockable pushbutton ne forte falsum CT

     -- VM436: Toggle cardo vectis actuator

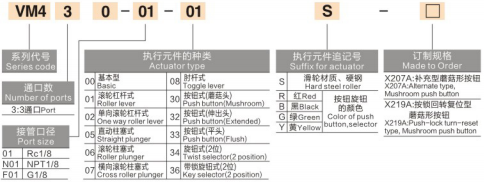

Exemplar Code Explicatio

 1. (Exemplum: VM431-01-01S)

     -- VM431: 3-portus ambitus + cylindrus vectis actus

     -- 01: thread code Portus (Rc1/8=01; N01=NPT1/8; F01=G1/8)

     -- 01: portorium limbis layout (00 = imum portum layout)

     --  S: Ferreus cylindrus ferro (non suffixo = vexillum POM cylindrus plasticus)

     -- Color suffixis notae: Y=fulvus fungus, R = fungus ruber, G = green pushbutton

  2. Popular Standard Models

     -- VM431-01-01A: 3-portus POM cylindrus vectis, portus lateralis Rc1/8 (exemplum generale universale propositum)

     -- VM431S-01-01A: 3-portus cylindrus ferreus induratus, gravis officio abrasio-repugnans condiciones operantes.

     --  VM430-01-00A: 3-portus directus fundator, fundum portus ad actuator conventus nativus

     -- VM432Y-01-01A: 3-portus flavus fungus capitis subitis valvae sistenda

Core Product Commoda

     -- Ultra - latum vacuum dual pressionis & positivi pressionis: Stabilis operatio ab -100kPa vacuum usque ad 1.0MPa, compatitur cum adsorptione et mensura pressionis positivi ambarum circuitus (VM2 vacuum sustinere non possunt)

     -- Certa poppet signatio constructionis: Praeclara aeris emissiones, pulvis contaminationis resistentia, responsio ieiunium et ultra-longum cyclum servitium vitae.

     -- Universal Rc1/8 vexillum filum: Late assumptum portum magnitudinis pro generali apparatu automationis cum magno permutabilitate

     -- Dual side / bottom limbing layout: Flexible installation layout for the dense panel positis ac stricto instrumenti spatii

     -- Plena series actus portfolio: Rollerus vectis, praeceptor, pushbutton planus, caput fungus color, nodi rotundi et lockable capita plene ictum limitem contegunt, quatio manualis, subitis sistenda et selector imperium postulat.

     -- Gravis-officium industriae robusti constructum: valvae metalli corpus solidum, ad libitum cylindrus ferreus obduratus et acervus / resistentia vibrationis durae lineae productionis continuae

     -- Lubricatio gratuita conservationis liberorum consiliorum: Sumptus gravis operans et oleum liberum aerem in ambitu ambientis

Typical Industrial Application missiones

     -- Equipment stroke limit deprehensionis : Cylinder & slide table full position feedback with cylindrus vectis actuator

     -- Vacuum adsorptionem & gyros emissio imperium (actio stabilis ad -100kPa pressura negativa)

     -- Manual jog test & apparatu committens per panel pushbutton actus

     -- Machina salus subitis interlock: Flavus / rubeus fungus caput ad celeri aeris circuitus shutoff

     - Jig & fixture pneumatica commutatione pro clamping / unclamping loramenta

     -- Packaging, printing and textile machinery high-frequency mechanica trigger control .

     -- Parva automated workstation positio notarum feedback et salus interlock circuitus

Electio Comparison Table: VM1 / VM2 / VM4 Series

Una sententia Summarium

     SOLH VM4 medium 3-portum poppeti valvae mechanicae instructa ad portum universalem Rc1/8, Cv=0.38 capacitatem fluunt, vacuum plenum ~1.0MPa pressio compatibilitas, obsignatio poppetalis certa, actus permutabilis et latus duplices/imae limbi extensionis inservientes praelatae valvae mediae mechanicae ad omnes conditiones operandas quae operationem vacuum requirunt, abrasio resistentia et diuturnum tempus.
