VM1 (VM100) Series Mini 2/3 Portus Mechanica Poppet Valve

Brand: SOLH by Richge Technology

 Product Positioning

     VM1 (VM100) series minima est 2/3 portus valvae poppetalis mechanicae cum exemplaribus originalibus SMC plene convertibilis. Poppetum certae obsignationis structuram cum ultra-pacto leve adumbrationem adhibet, pressionis operativae late patentem, pressionem vacuum et positivum, ac multa capita actusque convertibiles. Late usus est pro instrumento positionis detectionis, plaga limitis sentiendi, operationis quatiae manualis et circuli parvi mutandi in machina automated compacta.

Core Technical Specifications (VM100 / VM1 Series)

  1 Vulgate Parameters

     -- Ambitus Genera: 2-portus (NC/NO), 3-portus (N.C. / N.O.)

     - Structure: Dirige agendi poppet genus cum stricta signationem perficiendi

     --  Lorem Liquor: Aer compressus, gas iners

     -- Operans Impetus Range: -100kPa ~ 1.0MPa (vacuum compatible)

     --  Ambiens & Medium Temperature: -5 ~ +60℃ (vico interno nullo)

     -- Port Thread Sizes: M5, Rc1/8 (NPT1/8 & G1/8 ad libitum)

     -- Capacitas: Cv=0.11, area sectionis efficax 2.5mm²

     -- Net Pondus: Latus Portus versio 60g, imum portum versio 67g (per- leve)

     - Limbis propositum Options: Latus portum, fundum port

     -- Lubricatio Necessitas: Lubricatio-libera operatione

  2. Super Dimensiones

     -- Partis portus exemplar: 11 36 × 16 mm

     -- Exemplar Solum portum: 11 28 × 25 mm

 Ambitus Definitio & Logica Laborans (3-port / 2-portus)

   1. 3-portus Type (VM13x, Most Popular)· Portus 1(P): copia aeris inletus

     -- Portus 2(A): Control output

     -- Portus 3(R): Exhaustus port

     -- Norte Clausa NC: Unactuata → P ab A, A annexa R

     -- Communiter Aperi NO: Unactuated → P ad A, A praecisus ab R

   2. 2-port Type (VM12x)

     -- Portus 1(P): Liquor input

     -- Port 2(A): Imperium output

     - Communiter Propinquus logicae: Aeris transitus opens pressus, intercludit post emissio

Plena dolor convertuntur Actus Capita

 Rectus 1. Vulgate Type Plunger

     -- VM130 / VM120 :

     -- VM130U / VM120U: Brevis 2.5mm plaga praecipitatio

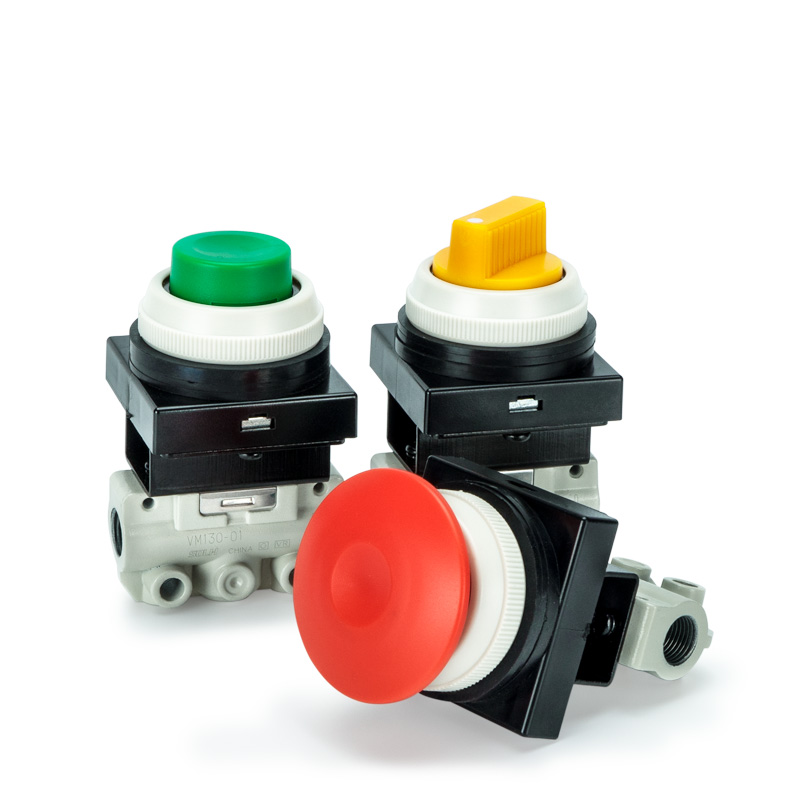

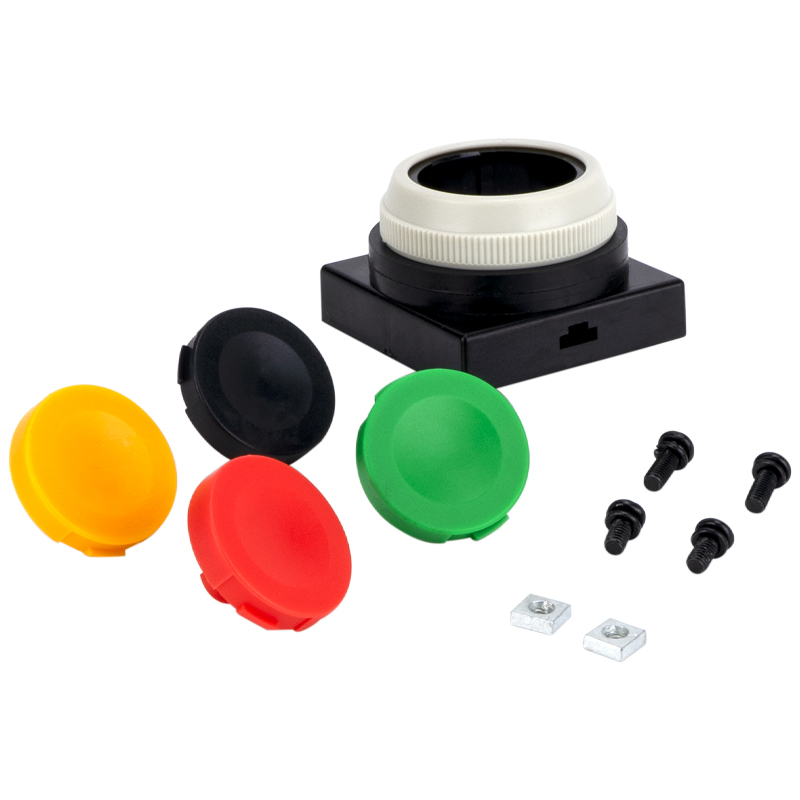

 2. Pushbutton Type (Manual Jog Operatio)

     -- VM132 / VM122: Flat standard pushbutton

     --  VM132Y / VM122Y: Fungus Flavus caput ad subitis finem & visibilem altitudinem

     -- VM132G / VM122G: Green indicator pushbutton

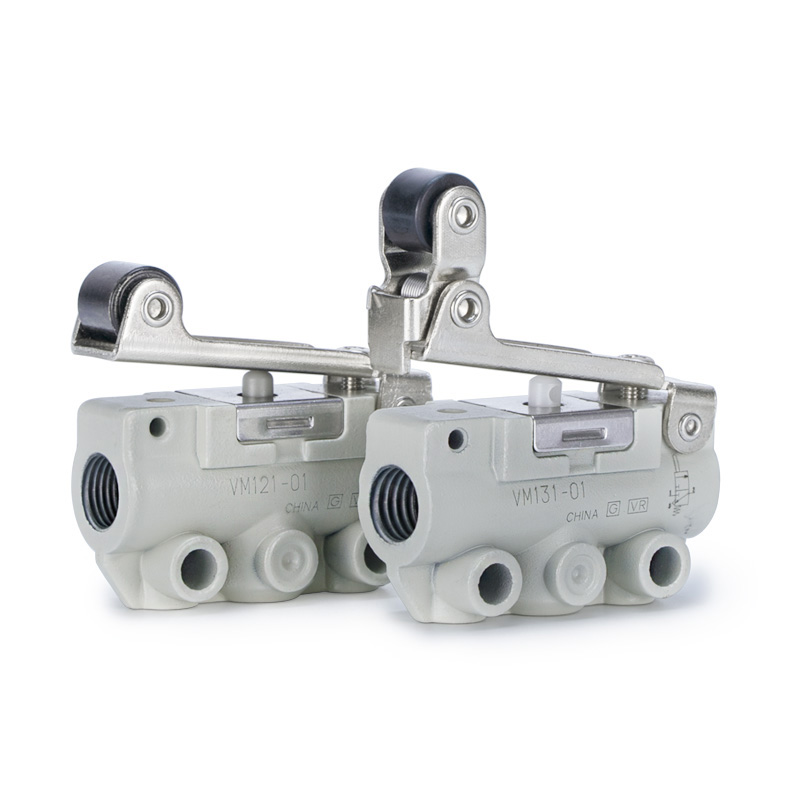

  3. Rollerus Lever Type (Stroke & Limit Deprehensio)

     -- VM131 / VM121 : vexillum rectum cylindro vectis

     -- VM131U / VM121U: Brevis peregrinatione cylindrus vectis

     --  VM133 / VM123: Una via anti-repulsa cylindro vectis

  4. Libitum Extra Actuators

     Cardo vectis, toggle vectis, nodi rotundi lockable et magis nativus capitibus felis

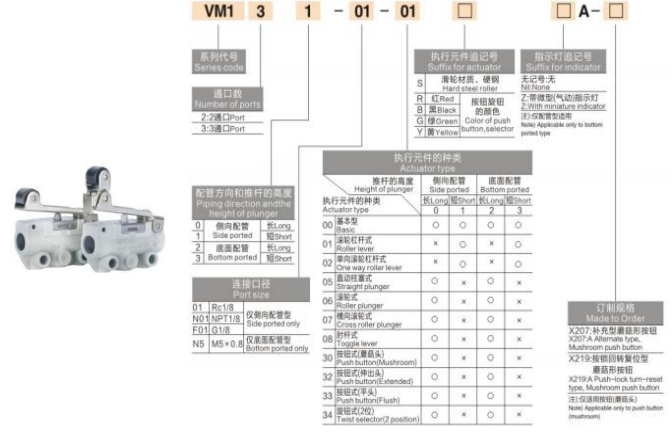

 Exemplar Code Explicatio

  1.  (Exemplum: VM131-01-01A)

     -- VM131: 3-portus ambitus + cylindrus vectis actus

     -- 01: thread code (M5=M5; Rc1/8=01; NPT1/8=N01;G1/8=F01)

     -- 01: Portus lateralis layout (02 = portus deorsum layout)

     -- Suffixum codice: A = vexillum; Y = flavus fungus; G = green button; U = brevi ictu

  2. Common Standard Models

     -- VM131-01-01A: 3-portus cylindrus vectis, Rc1/8, portus latus (plerumque usus)

     -- VM132-M5-00A: 3-portus planus pushbutton, M5 linum, fundum port

     -- VM130U-01-N01Y: 3-portus brevis lectio, NPT1/8, flavus fungus subitis caput

Core Product Commoda

     -- Ultra-parva & ultra-lux: solum 60g cum latitudine 11mm angusta, perfecta pro machina interna embedding et densa tabula positis institutionem

     -- Lata universalis pressionis range: Compatible cum pleno vacuo usque ad 1.0MPa pressionis positive pro multi-proposito circuitionis

     --  Poppet dura structuram obsignatio: Egregia aeris emissiones, longus usus vitae et validus pulvis contagione resistentia

     -- Flexibile limbis & adscendens: Parte / deorsum portus optiones, latus ascendens, deorsum ascendens, basis bracket libitum (VM1-B)

     -- Lubricatio libero consilio: Sumptus humilis sustentatio et operatio ansa munda mundi

     -- Actus completus portfolio: par quatio manualis, plaga limitis, salus subitis sistenda et omnes felis mechanicae missiones laborantes

Typical Application missiones

     - Machina plaga terminus virgas: Cylindrus plenus-plaga situ feedback deprehendatur

     --  Manuale jog & apparatum committens: Panel pushbutton manuale test circuitus aeris

     - Safety interlock & subitis stop ansas: Yellow fungus caput actus ad apparatus salutem

     -- Mini jigs & clamping fixtures: Clamp / unclamp pneumatica commutatione

     -- Vacuum imperium circuitus: Stabilis mutans sub -100kPa vacuo conditione

     -- General automation equipment: Mechanical trigger air signal & position feedback circuits

Una sententia Summarium

     SOLH VM1 minimae valvae mechanicae poppetalis lineamenta ultra-levis 60g corpus compactum, obsignatio poppet certa, plenum vacuum ~ 1.0MPa range operans, latus imum/portum imum layout et actus capitum permutationum completus, inserviens praeponitur valvae aeri mechanicae mechanicae pro omni instrumento parvo automated.
