SY Series Gubernator Operatus 5-Portus Solenoid Valvae

Notam:SOLH by Richge Technology

Product Positioning

     SOLH SY series gubernator-operatus 5-portus valvae solenoidis est amet, corpus ultra-pactum in featuring, potentiae ultra-humilis consummatio et capacitas fluunt valde upgraded. Core moderatio directionalis inservit pro reciproco cylindrico et pneumatico ambitu mutandi in omni instrumento productionis automated, plane convertibili cum serie originali SMC SY.

Full Series Size Classification & Matching Scope

Universal Core Technical Specifications

  1. Genera Circuit:

     -- 5 /2- modo (unum ver reditum / ancipitem anguem duplicatum);

     -- 5/3-via (III munera centri: Centrum Clausum / Centrum Exhausto / Centrum Pressure Supple)

  2. Operans Impetus dolor

     -- Gubernator Internus: 0.1 ~ 0.7 MPa

     -- Gubernator externus (vacuum compatible): -100 kPa ~ 0.7 MPa

  3. Temperature operans: -10 ~ 50℃ (vico in aere non fonte)

  4. Coil Power Consumptio: coil 0.35W Standard; industria salutaris humili potentia coil modo 0.1W

  Praesidium Gradus: Plug iungo IP65; multiplex basi scandens IP67

  6. Service Lifespan: hiatus signantes FUSUS usque ad CC decies cyclos; sigillum elasticum usque ad LXX decies centena

  7. Latin Voltage Options: DC12V/DC24V (massa amet); AC110V / AC220V

Structural & Core euismod Commoda

  1. Velox Plug-in multiplici monte Structure

     -- Directe disrumpam in SS5Y seriem multiplicem basim, conventum festinanter et disconventuum, facilem singularem valvulam sustentationem sine tota insula deforme.

  2. Ultra Low Energy-Saving Coil

     -- Libitum 0.1W spiraculum potentiae humilis, caloris humilis generationis, ad diuturnum tempus continuum operandi condiciones perfecte aptas, officinas aeris compressi & potentiae sumptus valde secans.

  3 valde Optimized High flow Cursor

     -- Internum streamline optimized design, capacitas augetur fluunt circiter 80% cum valvulae solenoideo antiquae comparatae, extensionem cylindri velociorem intellegens celeritatem retractationis sine pressione dispendii.

  4. inaedificata nauclerus Filter Screen

     -- Integrae reticulum columellae in valvae gubernatoris diverticulum ad pulverem et immunditiam obstruendam, efficaciter minuendo FUSUS valvulae defectus rate et vitae servitium extendentes.

  Multi-directional flexibilia Portus propositum

     -- Aeris portus in latere / summo / fundo tres directiones praesto sunt, libere accommodare tubing fundere ad vitare impedimentum mechanicum intra compaginem compaginem compaginem.

  6. Modular Valvae Insulae Integration

     -- Perfecte matched cum SS5Y3 / SS5Y5 / SS5Y7 / SS5Y9 series multi- stationum multiplices bases, intellege centralizatum aerem unitatum copiam & exhaurire, bene servetur in extensione ac salva arcae institutionis spatium.

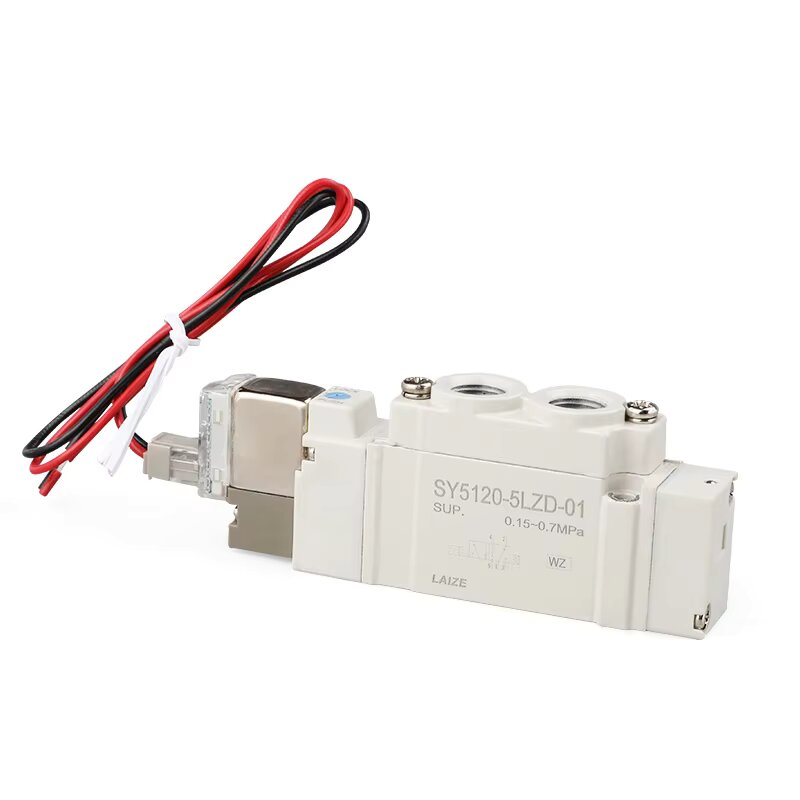

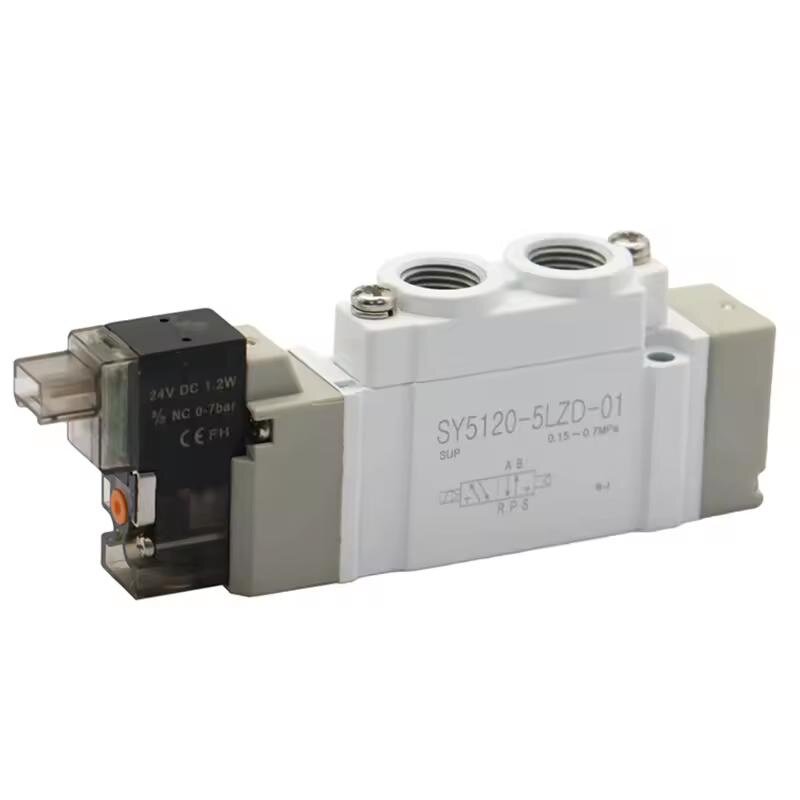

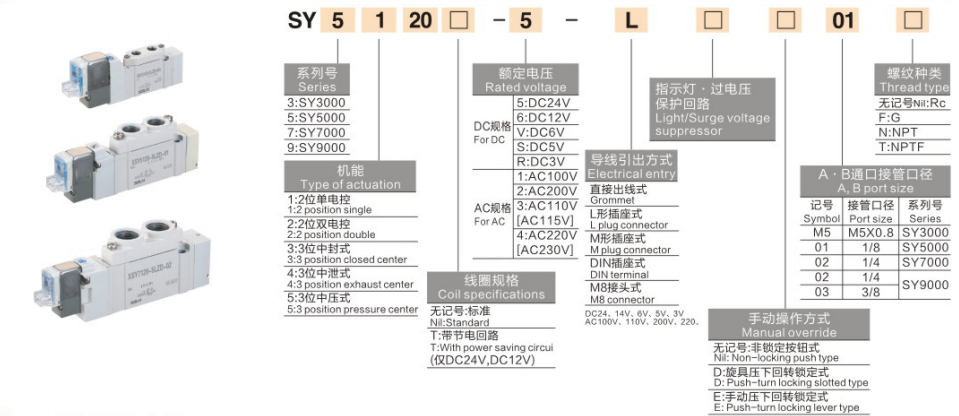

Complete Model Coding Rule (Exemplum: SY5120-5LZD-01)

  1. SY: Series codice gubernatoris operato 5-portus valvae solenoidalis

  2. 5: series series numerus (5 = SY5000 series mediae)

  3. I: Circuitus munus codice

     1 = 5/2 singula coil vere recipiunt;

     2 = 5/2 duplici coil;

     3 = 5/3 tres positione valvae

  4. 2: Internum basium structurarum codicem

  5. 0;

  6. 5: Coil voltage code (5 = DC24V, amet)

  7. LZ: Socket & tutelae configuratione

     L = L nervum obturaculum informibus; Z = constructum-in LED indicator + overvoltage protection circuit

  8. D: Manual codice primi ante (dis-operationem turn, obfirmatis egeo)

  9. 01: sequela Portus mole (01 = Rc1/8")

Typical Industrial Application missiones

     -- conventus Automated lineae productio, semiconductor instrumenti praecisio, machinatio packaging

     -- Automotiva lineae productionis stampae & glutino , instrumentorum experimentorum medicorum

     -- Griperi pneumatici robotici, cylindrici lapsus lineares, actuatores rotarii indexing

     -- Cylindrus deinceps/receptus mutandi, ambitus pneumaticus in-off et celeritas moderandi imperium

una sententia

     SummarySOLH SY series gubernator-operatus 5-portus valvae solenoidei operit SY3000/SY5000/SY7000/SY9000 amplitudo plena cum 0.1W coil industria conservantis, IP65/IP67 dustproof & IMPERVATORUM gradus, 80% altior fluxus quam vetera exemplaria et obturaculum in SS5Y multiplicis compatibilitatis, universalis valvae pacti directionalis in cylindrico, electronico, automo dicione valvae in cylindrico, electronico, automando, automationi.
