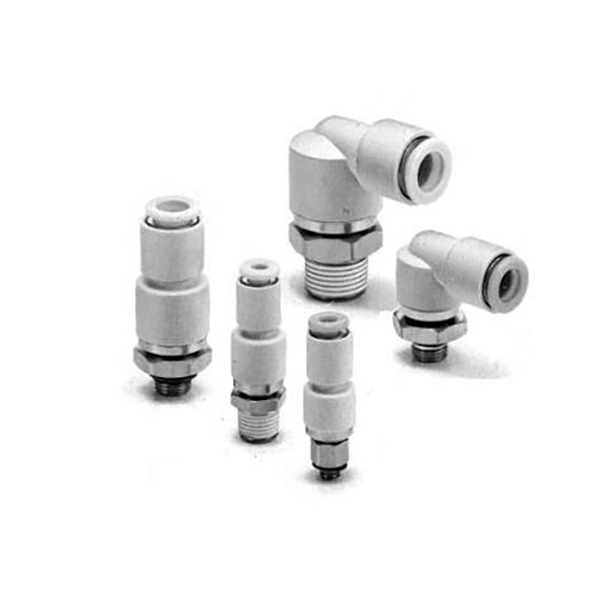

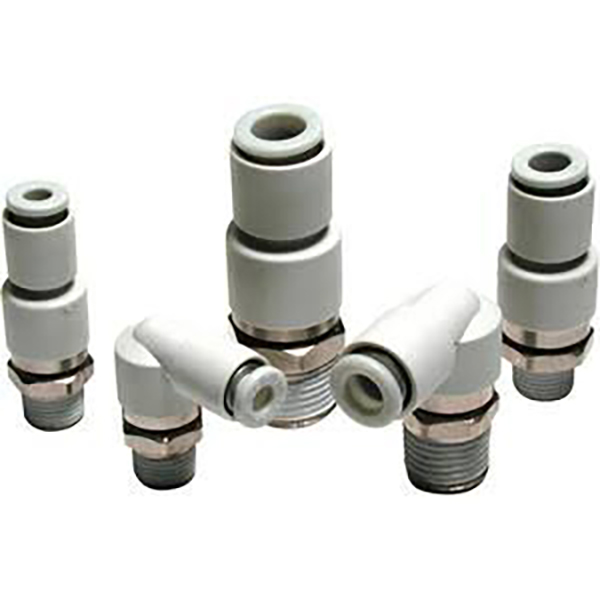

Brand: SOLH by Richge Technology | 360° Rotatus Pneumaticus Rotalis Unionis
Series KS/KX sunt in gyratorio verticula dis-in caerimonias dispositae 360° continuae rotationis et applicationes oscillantes ut roboticae manipulatores, tabulae rotariae et cylindrici fines oscillantes. Tubingae aerem impediunt ne tangant, contorqueant, vel in motu distrahatur.
• KS = Latin VERTICULA genus (una pila afferentem)
• KX = summus celeritas VERTICULA genus (dual pila gestus)
• KS Standard Type: una pila ferens, torques humilis. Max celeritas: 500 rpm (φ4/φ6), 400 rpm (φ8), 300 rpm (φ10), 250 rpm (φ12). Apta celeritati mediae-low oscillationis & gyrationis intermittentis.
• KX summus Volo Type: Dualis globulus gestus, torquis ultra-humilis, rotationis levius. Max celeritas: 1500 rpm (φ4/φ6), 1200 rpm (φ8), 1000 rpm (φ10/φ12). Apta est continua velocitas rotationis et crebra oscillatio.
• ✅ CCCLX ° Free gyrationis: Constructum in ferendo conventum eliminat Tubing nodosum ac retorquens ad terminos rotationis.
• ✅ Humilis Torque rotationis: Tantum 0.006～0.022 N·m ad 0.5 MPa, onus extra minimum in axibus moto.

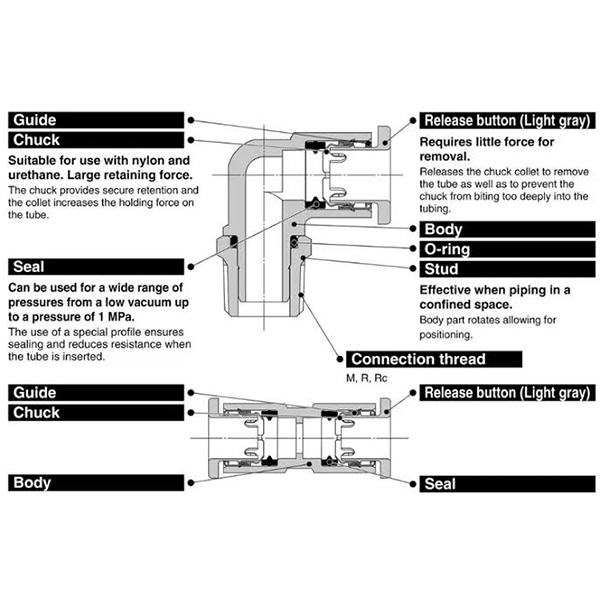

• ✅ Anti-gyrationis Internum Structurae: Probibet Tubinga de lanificio simul cum decorum et extendit tubum servitium vitae.
• ✅ Copper-Free Construction: Electroless nickel plating, utilis in ambitibus aeris restrictis (semiconductor, processus cibi, medicinae).
• ✅ Dis-ut-Iungo: Compatible cum φ4/φ6/φ8/φ10/φ12 PU, nylon & fistulae nylon mollis. Auto- cincinno insertis, torquem premunt ad liberationem velox.
• ✅ Vacuum Compatible: −100 kPa ~ 1.0 MPa (Non commendatur vacuum criticum tenendum ob lacus inhaerentem minorem).
• ✅ Post Pre-Coated Sealant (S que): Latin optio; nulla PTFE tape requiritur per institutionem.
KS Standard Series
• KSH06-02S: Recta (H), φ6 tube, R1/4 stamina, prae-applicata sealant (S)
• KSL08-01S: Cubitus (L), φ8 tube, R1/8 stamen, prae-appositum sealant (S)
KX High-Speed Series
• KXH04-M5: Recta (H), φ4 tube, M5×0.8 metrica fila
• KXL10-03S: Cubitus (L), φ10 tube, R3/8 stamen, prae-appositum sealant (S)
Nomen Regulae
|
Code |
Definition |
|
KS/KX |
Series: KS=Standard single bearing; KX=High-celeritate dual afferentem |
|
H / L |
H=Rectus; L=90° Cubitus |
|
04/06/08/10/12 |
Tubus diametri exterioris φ mm |
|
M5/M6 / 01/02/03/04 |
Post: M5×0.8, R1/8, R1/4, R3/8, R1/2 |
|
S |
Post prae iactaret sealant |
Parameters Communia
|
Item |
Parameter |
|
Opus Pressura |
−100 kPa ~ 1.0 MPa |
|
Probatur Pressura |
3.0 MPa |
|
Temperature operating |
−5℃ ~ +60℃ (non congelatio) |
|
Corpus Material |
Stannum mixturae cum electroless nickel plating |
|
Gripper Jaw |
SUS304 immaculatam ferro |
|
Sigillum Material |
NBR / FKM |
Torque rotationis @ 0.5 MPa (N·m)
|
Tubus OD |
φ4 |
φ6 |
φ8 |
φ10 |
φ12 |
|
Torque |
0.006 |
0.012 |
0.014 |
0.020 |
0.022 |
Maxime Rotating Mobilitate (rpm)
|
Tubus OD |
φ4/φ6 |
φ8 |
φ10/φ12 |
|
KS |
500 |
400 |
300 / 250 |
|
KX |
1500 |
1200 |
1000 |
1 . Robot carpi / iuncturam: Ne Tubing tangens in rotating robot finem effectores.
2. Index tabularum gyratorii: Continua 360° copia aeris pro turntableia summus velocitatis.
3. Oscillantis cylindrici terminos: Rocker & flip machinationes emittere contorquens accentus in aere lineas.
4. Automatio generalis: Pneumatica unitates frequenti oscillatione et rotatione intermittente.
|
KS/KX Rotary Fittings |
Standard KQ ventilabis-in Fittings |
|
Instructus gestus, rotationis sustinet 360°, torques humilis |
Non ferentem, non rotabile |
|
Designed for rotating / oscillating axes |
Ad certum static limbis |
|
Superior unitas pretium |
Oeconomicus, humilis sumptus |
• Minimum-celeritate oscillationis (≤500 rpm) →KSmelius sumptus-perficiendi
• Continua summus celeritas gyrationis (>D rpm) →KX, dual ferens ad longiorem vitam serviendum
• Ambitus aeris sine sensibilibus & vacuo → Malo KS/KX
