Brand: SOLH by Richge Technology | KQ2T Tee & Cross One-Tange Pneumatica Fittings
 |
 |
 |
 |
 |
 |
 |
 |
Series KQ2T pertinet ad SOLH plenum KQ2 pneumaticum, unum tactum familiae conveniens, instrumentum liberorum plumarum obturaculum velox et consilium fabularum pro 3-modo et 4-modo aeris pipelines ramosi. Haec producti linea T-typum t-typum tegit et caerimonias transversales quattuor modos, inclusas diametri aequalis, reducens, filum masculinum (imperiale/metricum) versiones ad diversam ambitum pneumaticam diversitatem et nexum pipelini postulat.
Sub-exemplum Classification:
KQ2T: T-type 3-port tee decet (aequalis diameter / reducing / genus filum externum)
KQ2TW: traicere 4-modo decet (diametris omnibus portibus)
KQ2TX: Crucem 4-modo decet (1 minuendi specificationem)
KQ2TY: Crucem 4-modo decet (2nd specificationem reducing)
Core Material & Performance: PBT corpus plasticum virtus alta, ferrum immaculatum retinens unguium, NBR nitrile Flexilis annuli sigillum. Plene compatible cum PU et PA nylon tubis pneumaticis, utrique pressioni negativo vacuo et compresso aere positivo pressioni pneumatico gyro compresso, late adhibito in apparatu automated et systemata aeri robotici distributionis.

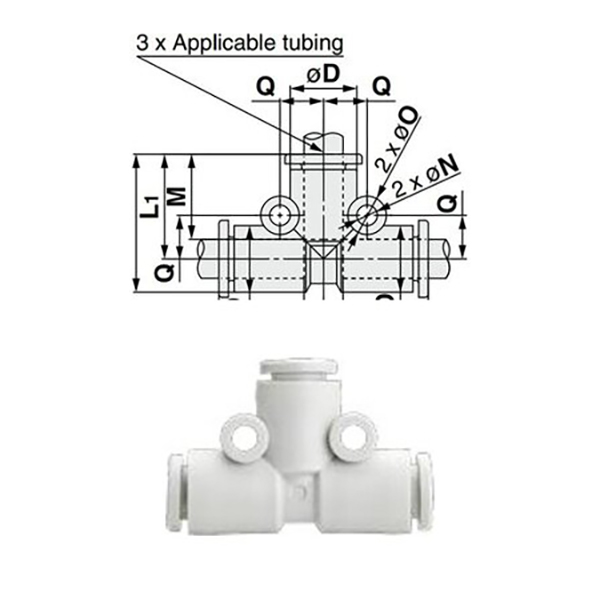

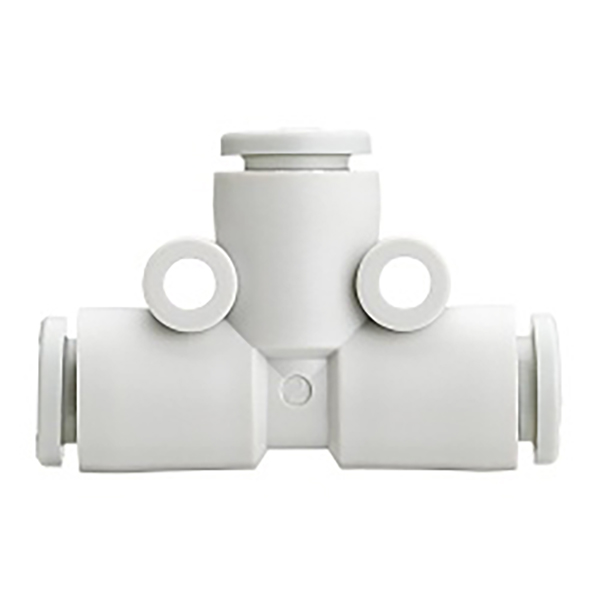

2.1 Aequalis diametro Tee (KQ2T□□-00, Threadless III-modo eadem magnitudine)
Tres portus identicam tubam diametri adoptant, nullo filo designato, pari aeris diversitate fistularum pneumaticorum eiusdem spec- tificatorum.
|
Exemplar |
Tubus Diameter Exterior ΦD (mm) |
|
KQ2T02-00 |
2 |
|
KQ2T23-00 |
3.2 |
|
KQ2T04-00 |
4 |
|
KQ2T06-00 |
6 |
|
KQ2T08-00 |
8 |
|
KQ2T10-00 |
10 |
|
KQ2T12-00 |
12 |
|
KQ2T16-00 |
16 |

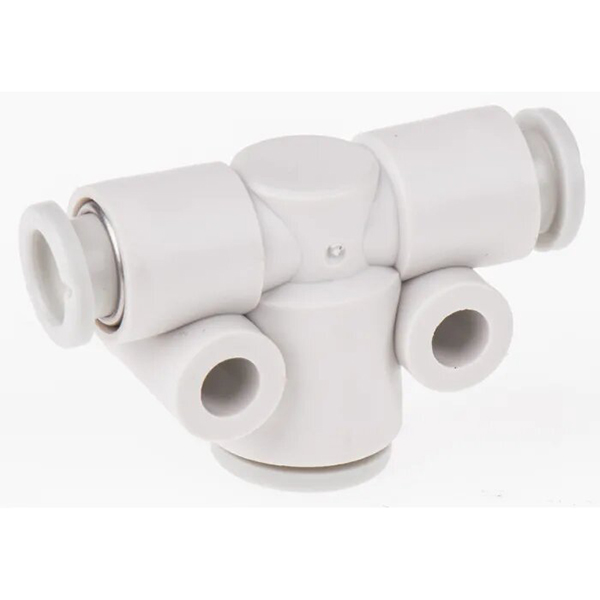

2.2 Reducing Tee (KQ2T①-②, Dual-Size Pipeline Conversio)
Utriusque portus diametrum capiunt, medium summum portum diametrum capit, propter conversionem pipelinearum adhibitam et derivationem diversorum tubularum pneumaticorum.
|
Exemplar |
Latus Portus ΦD (mm) |
Medius Portus ΦD (mm) |
|
KQ2T23-04 |
3.2 |
4 |
|
KQ2T04-06 |
4 |
6 |
|
KQ2T06-08 |
6 |
8 |
|
KQ2T08-10 |
8 |
10 |
|
KQ2T10-12 |
10 |
12 |
|
KQ2T12-16 |
12 |
16 |

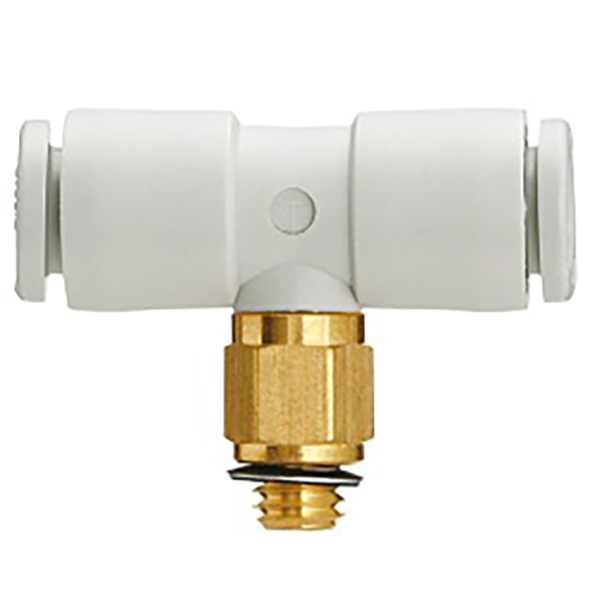

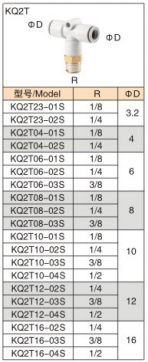

2.3 Imperial R Taper Male Thread Tee
Utriusque portus pro tubo inserto, portus medius cum imperiali R cereis filis masculis ad nexum stamineum cum valvulis pneumaticis, cylindris et aliis componentibus.
|
Exemplar |
R Post Spec |
Tubus Diameter Exterior ΦD (mm) |
|
KQ2T23-01S |
R1/8 |
3.2 |
|
KQ2T23-02S |
R1/4 |
3.2 |
|
KQ2T04-01S |
R1/8 |
4 |
|
KQ2T04-02S |
R1/4 |
4 |
|
KQ2T06-01S |
R1/8 |
6 |
|
KQ2T06-02S |
R1/4 |
6 |
|
KQ2T06-03S |
R3/8 |
6 |
|
KQ2T08-01S |
R1/8 |
8 |
|
KQ2T08-02S |
R1/4 |
8 |
|
KQ2T08-03S |
R3/8 |
8 |
|
KQ2T10-01S |
R1/8 |
10 |
|
KQ2T10-02S |
R1/4 |
10 |
|
KQ2T10-03S |
R3/8 |
10 |
|
KQ2T10-04S |
R1/2 |
10 |
|
KQ2T12-02S |
R1/4 |
12 |
|
KQ2T12-03S |
R3/8 |
12 |
|
KQ2T12-04S |
R1/2 |
12 |
|
KQ2T16-02S |
R1/4 |
16 |
|
KQ2T16-03S |
R3/8 |
16 |
|
KQ2T16-04S |
R1/2 |
16 |

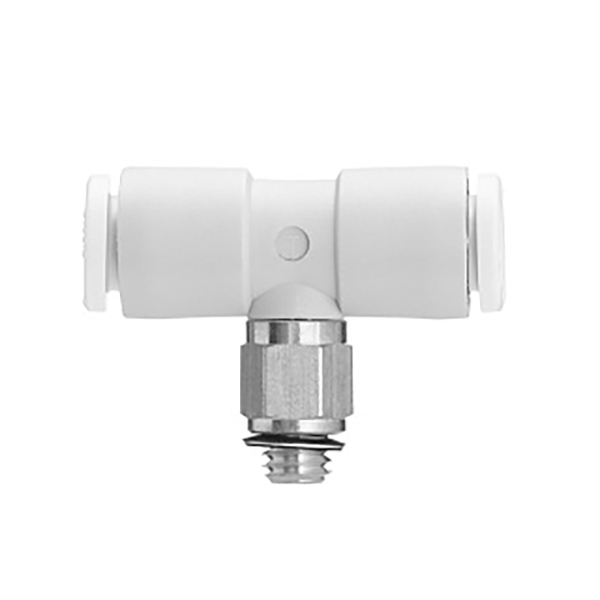

2.4 Metric Fine Thread Male Tee
Utriusque portus ad fistulam inserendam, portus medius cum filo masculino subtiliter metrico, ad minimas partes pneumaticas aptas et ad limbis instrumenti automationis praecisionem.
|
Exemplar |
Metrica Thread Spec |
Tubus Diameter Exterior ΦD (mm) |
|
KQ2T02-M3G |
M3×0.5 |
2 |
|
KQ2T02-M5 |
M5×0.8 |
2 |
|
KQ2T23-M3G |
M3×0.5 |
3.2 |
|
KQ2T23-M5 |
M5×0.8 |
3.2 |
|
KQ2T04-M3G |
M3×0.5 |
4 |
|
KQ2T04-M5 |
M5×0.8 |
4 |
|
KQ2T04-M6 |
M6×1.0 |
4 |
|
KQ2T06-M5 |
M5×0.8 |
6 |
|
KQ2T06-M6 |
M6×1.0 |
6 |

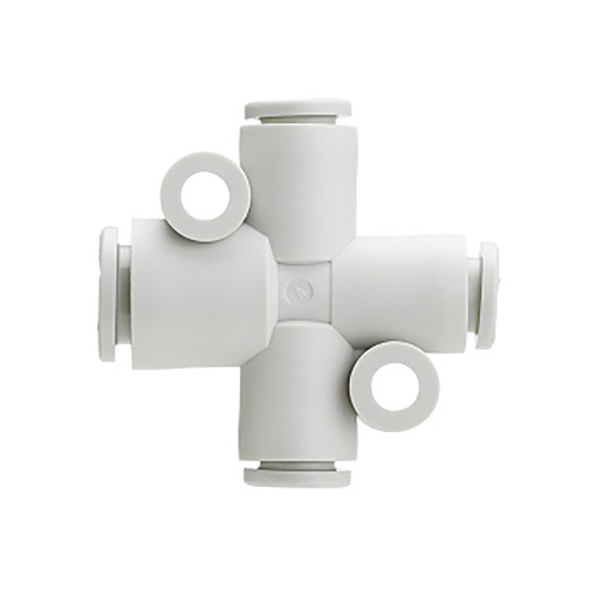

3.1 KQ2TW Equale Diameter Crucis Opportunus (IV portuum eadem magnitudine)
|
Exemplar |
Tubus Diameter Exterior ΦD (mm) |
|
KQ2TW04-00 |
4 |
|
KQ2TW06-00 |
6 |
|
KQ2TW08-00 |
8 |
|
KQ2TW10-00 |
10 |
|
KQ2TW12-00 |
12 |

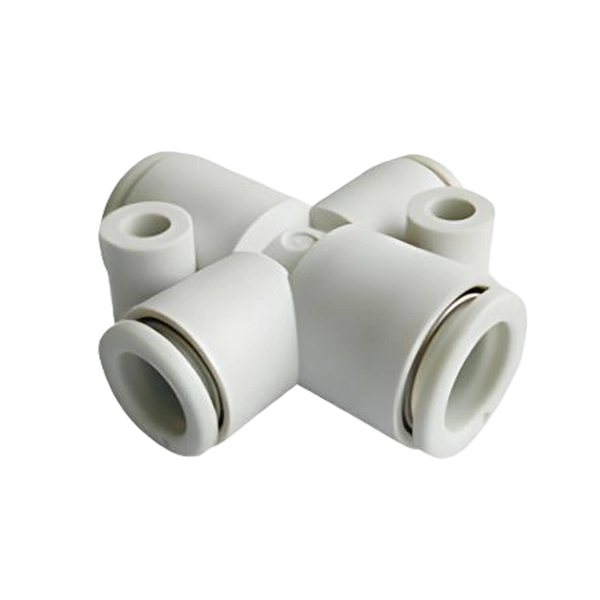

3.2 KQ2TX Reducing Cross Opportunus (Type 1)
|
Exemplar |
Portus ΦD (mm) |
Portus ΦD (mm) |
|
KQ2TX06-08 |
6 |
8 |
|
KQ2TX08-10 |
8 |
10 |
|
KQ2TX10-12 |
10 |
12 |

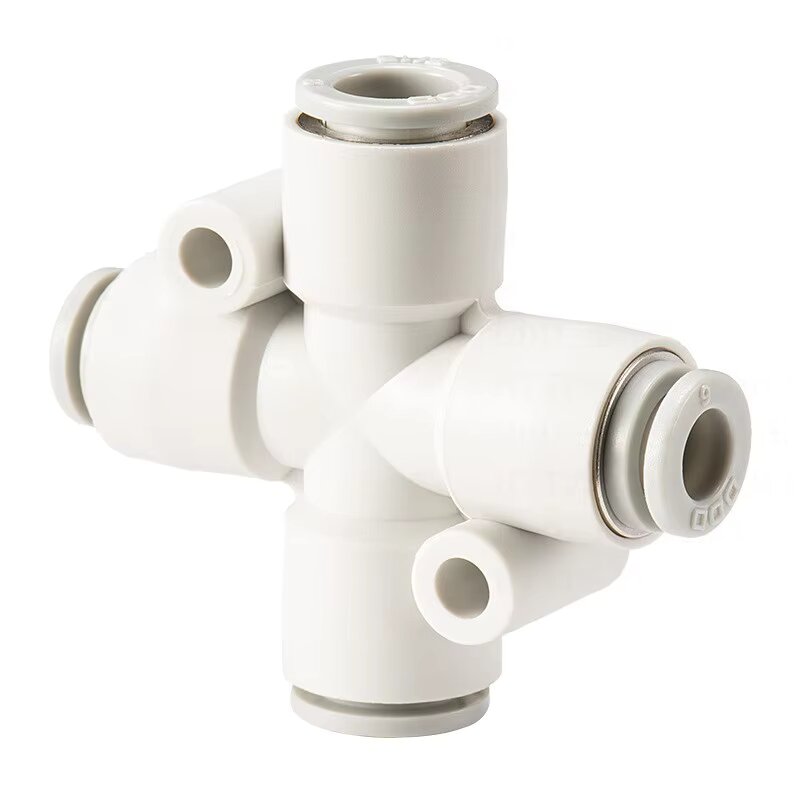

3.3 KQ2TY Reducing Cross Opportunus (Type 2)
|
Exemplar |
Portus ΦD (mm) |
Portus ΦD (mm) |
|
KQ2TY06-08 |
6 |
8 |
|
KQ2TY08-10 |
8 |
10 |
|
KQ2TY10-12 |
10 |
12 |
|
Item |
Parameter |
|
Compatible Tubing |
PU tube, PA nylon tubum pneumaticum |
|
Opus Impetus dolor |
-100kPa (vacuum) ~ 1.0MPa (pressio affirmativa) |
|
Temperature operating |
0℃~ 60℃ |
|
Connection Methodi |
tactus, dis-m; Preme release anulum ad desciscendum Tubing |
|
Core Material |
PBT corpus, unguibus ferro immaculatis, sigillum Flexilis NBR |
• Aeris fons ramosus et pipelines diversitas instrumenti productionis automated
• Circuitus pneumaticus distributio pro brachiis roboticis et systematibus calicis vacuo suctu
• Distributio aeris multi-modo pro cylindro pneumatica potestate loramenta
• Connexio pipelineorum compactio et conversio diametri ad praecisiones systemata pneumatica
• Aequalis Diameter Tee: KQ2Txx-00 elige pro 3-modo pipelines cum diametro tubi omnino consistentis
• reducendo Tee: Elige KQ2T pro pipelines eadem parte diametri et diversae diametri mediae
• Threaded Tee: Elige KQ2Txx-01S (imperialis) / M series (metrica) ad nexum filorum cum valvulis et cylindricis.
• IV-modo Cross Distributio: Elige KQ2TW/TX/TY series in missionibus requirunt quattuor modo pipeline ramosa
