Brand: SOLH by Richge Technology | KQ2W Fundo L-Type One Tactus Cubitus
 |
 |
 |
Series KQ2W est L-type caule extenso dis-in cubito intra SOLH KQ2 pneumatica familia conveniens. 90° constructio rectus-angulus. Alterum stamina masculina (imperiale R tortum tortum / metricum M stamina tenuis), alter finis PU/PA pneumaticae Tubingae insertio. Series etiam versionis KQ2Wxx-99 non-reducendo comprehendit, utrumque finem pro tubi connexione pro longiori et impedimento fugae pipeline.
Core Commodum: Truncus extensus designans spatium institutionem in angustiis et impedimentis mechanicis resolvit. Unius tactus compages, instrumenti-liberi fistulae insertio & amotio. Corpus plasticum + aes sectio staminea, anti-canus, cum circuitibus pneumaticis et vacuo compatibilis. Importare directum substitutum pro seriei SMC KQ2W pro inceptis transmarinis.
Format: KQ2W - S
KQ2W: Series code for L-genus cubiti extenso
□□: Tubus diametri exterioris ΦD (02=2mm,23=3.2mm,04=4mm,06=6mm,08=8mm,10=10mm,12=12mm,16=16mm)
Suffixio:01S02S/03S/04S: filum imperialium R masculinum (1/8",1/4",3/8",1/2")
M3GM5: Metricum masculinum filum M3×0.5 / M5×0.8
-99: Versio non minuente extensa, utrinque connexio tubi diametri, filo nullo
|
Item |
Parameter |
|
Corpus Material |
PBT engineering plastic, excelsum impulsum resistentia |
|
Post sectionem |
Aes cum nickel plating for rubigo praeventionis |
|
Sigillum Material |
NBR nitrile rubber |
|
Compatible Tubing |
PU tube, PA nylon tubum pneumaticum |
|
Opus Pressura |
0~1.0MPa, applicabile pro vacuo |
|
Temperature operating |
-20℃ ~ +60℃ |
|
Connection Methodi |
Dis-in; torcular release anulum inserere vel abducere fistulam |

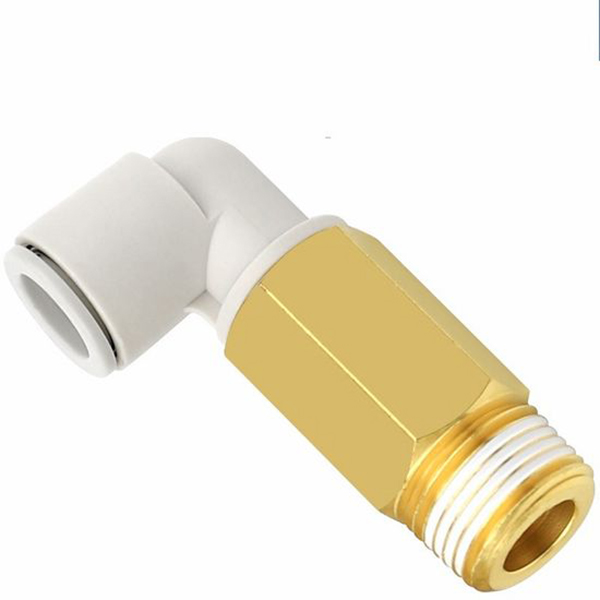

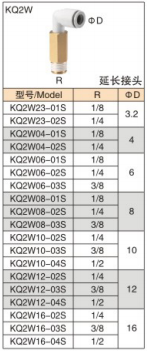

4.1 Imperial R Thread Version (Brass Male Thread)
|
Exemplar |
Male Thread R |
Tubus ΦD |
|
KQ2W23-01S |
R1/8 |
3.2 |
|
KQ2W23-02S |
R1/4 |
3.2 |
|
KQ2W04-01S |
R1/8 |
4 |
|
KQ2W04-02S |
R1/4 |
4 |
|
KQ2W06-01S |
R1/8 |
6 |
|
KQ2W06-02S |
R1/4 |
6 |
|
KQ2W06-03S |
R3/8 |
6 |
|
KQ2W08-01S |
R1/8 |
8 |
|
KQ2W08-02S |
R1/4 |
8 |
|
KQ2W08-03S |
R3/8 |
8 |
|
KQ2W10-02S |
R1/4 |
10 |
|
KQ2W10-03S |
R3/8 |
10 |
|
KQ2W10-04S |
R1/2 |
10 |
|
KQ2W12-02S |
R1/4 |
12 |
|
KQ2W12-03S |
R3/8 |
12 |
|
KQ2W12-04S |
R1/2 |
12 |
|
KQ2W16-02S |
R1/4 |
16 |
|
KQ2W16-03S |
R3/8 |
16 |
|
KQ2W16-04S |
R1/2 |
16 |

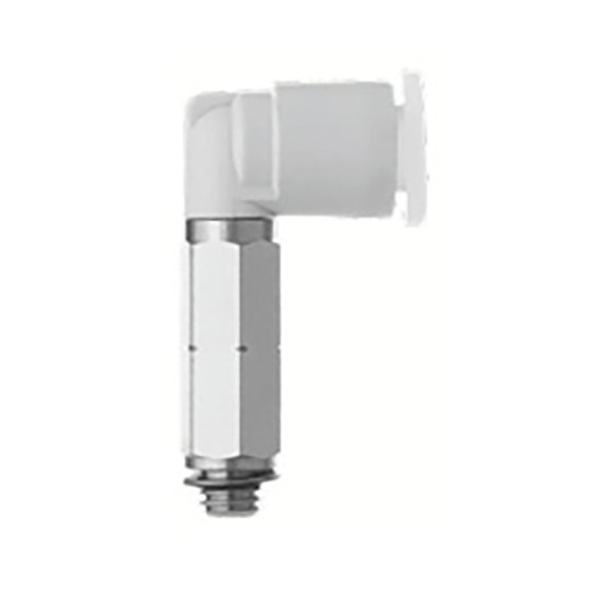

4.2 Metric M Thread Version
|
Exemplar |
Male Thread |
Tubus ΦD |
|
KQ2W02-M3G |
M3×0.5 |
2 |
|
KQ2W02-M5 |
M5×0.8 |
2 |
|
KQ2W23-M3G |
M3×0.5 |
3.2 |
|
KQ2W23-M5 |
M5×0.8 |
3.2 |
|
KQ2W04-M3G |
M3×0.5 |
4 |
|
KQ2W04-M5 |
M5×0.8 |
4 |
|
KQ2W06-M5 |
M5×0.8 |
6 |

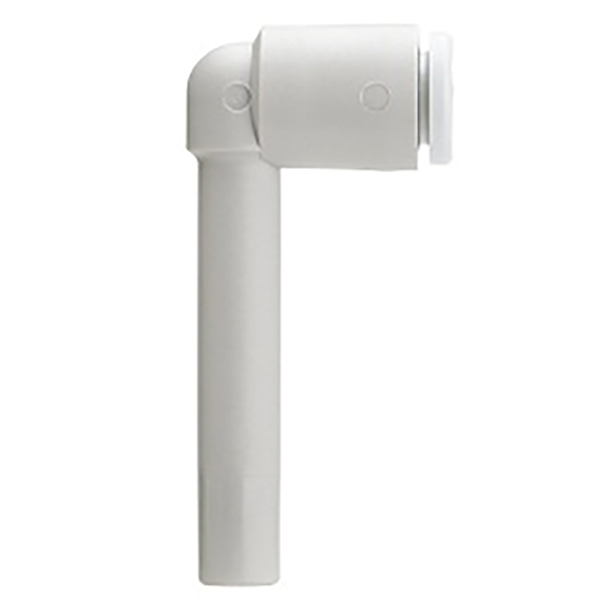

4.3 Non Fundo Reducing Version (tube ad Tube, non Thread)
|
Exemplar |
Portus 1 ΦD |
Portus 2 ΦD |
|
KQ2W23-99 |
3.2 |
3.2 |
|
KQ2W04-99 |
4 |
4 |
|
KQ2W06-99 |
6 |
6 |
|
KQ2W08-99 |
8 |
8 |
|
KQ2W10-99 |
10 |
10 |
|
KQ2W12-99 |
12 |
12 |
• Mechanica impedimentum vitandum est pro cylindricis, generantibus vacuo et valvulis solenoideis; extend & redirect pipeline directionem
• 90° Tubing extenditur fuso pro calice vacui robotici gyri in automation linearum compactarum
• Recta substitutio originalis SMC KQ2W, import substitutio pro pecunia reductionis
• Perpendiculariter tubinge incisa et plana, plene ad imum inserta ad obsignandum praestandum.
• TPFE taenia filis involvi possunt; non obstringere fila ne crepuit apto corpore.
• Tubus remotionem: preme annulum album emissio et tubo exteriori simul traho.
