Brand: SOLH by Richge Technology | Pneumatica Recta One-Tange ventilabis apta Cogo Aeris & Vacuum Linearum
 |
 |
 |
 |
KQ2H vexillum rectum dis-in pneumaticis congruens cum dis-adiunctis designandis, compatibilis cum PU et PA nylon Tubing. Utrique aeri compresso et fistulae vacuo systematis inservit ac late congruit seriei generantium vacuo ZH, BM, PBM, PBX. Cum unus e nucleo SOLH dis seriei congruentiis, importatis SMC KQ2H caerimonias directe reponere potest.
Series KQ2H tria principalia sub-types includit:
Male filum rectum: stamina masculina (micro M stamina / R taenia taenia), tubo extremo insertio

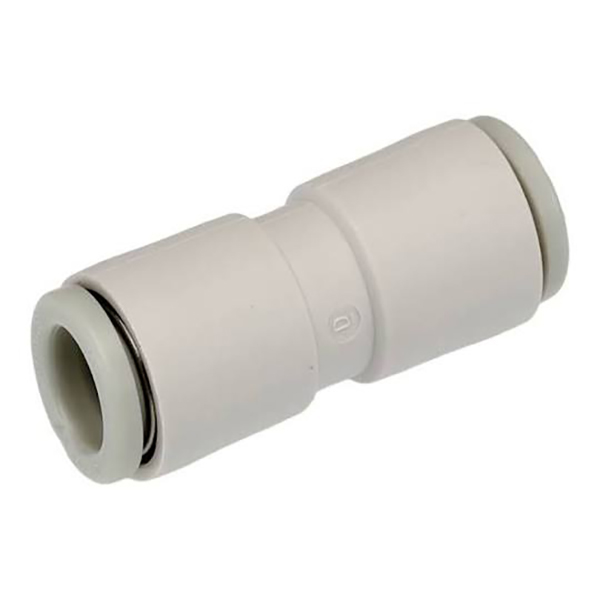

Aequalis diametro recta (-00 suffixo)Uterque fines ad eundem OD tubing tibus iuncturam
Reducing recta: Duo portus pro diversis tubulis diametri exterioribus ad cognoscendam fistulam magnitudinis transitus
Unius manus conventus & disassembly: Insert tube pro automatic densis; torcular emissio caerulea anulum ad Tubingam eruendum, dimensiones plene normas vivendi.
• Vere maxilla unum tactum densis structuram: Tubus ipso facto insertus et clausum. Torcular emissio collari ad tubum detrahendum pro conventu opportuno.
• Materia compositio: corpus plasticum POM roboratum; nickel-patella aenea staminea pro anti-rubigine et certa obsignatione.
• NBR nitrile Flexilis sigillum constanter operatur in aere positivo compresso et negativo gyro vacuo.
• Plena magnitudine coverage: perexiguum tubingum Φ2/3.2/4, regularis Φ6/8/10/12 et magnitudinis Φ16. Stamina micro M (M3, M5, M6) et stamina cerea imperialia (1/8,1/4,3/8,1/2), generantibus vacuo et cylindris microform apta.
• Foedus magnitudine, specimen institutionis in angustiis machinae automatae.
Exempla:

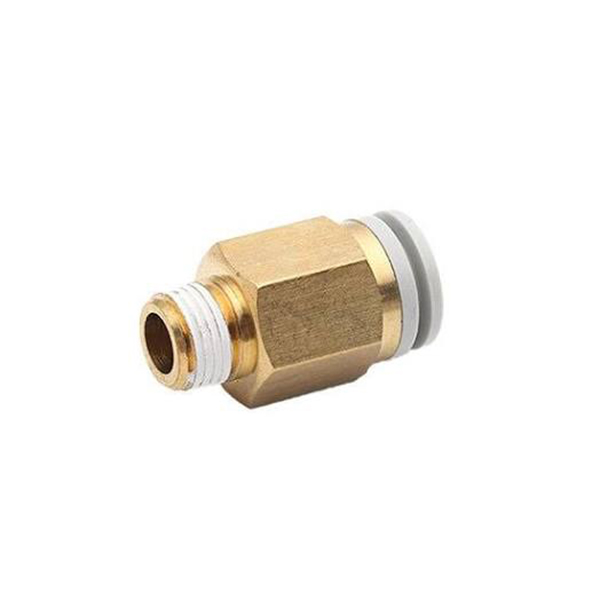

KQ2H04-M5 : Stamina masculina recta apta ad tubulum Φ4, M5×0.8 filum masculinum
KQ2H06-01S: stamina masculina recta apta ad tubulum Φ6, R1/8 filum masculinum tortum
KQ2H08-00: Aequalis diametro recta conveniens, utraque portus pro Φ8 tubingi

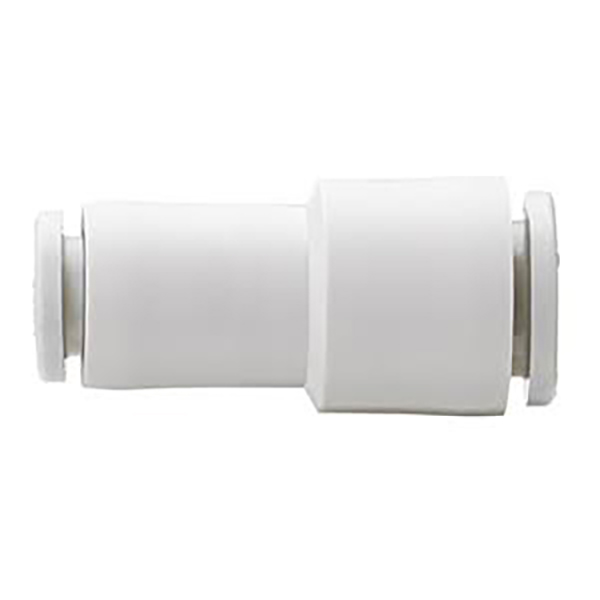

KQ2H06-08: Reducendo lineam convenientem, Φ6 ex una parte, Φ8 ex altera parte.
|
Code Segmentum |
Descriptio |
|
KQ2H |
Series codice: recta dis in congruis |
|
02/23/04/06/08/10/12/16 |
Tubus diametri exterioris ΦD: 2 /3.2 /6 /6 /8 /10/12/16 mm |
|
M3G/M5/M6 |
Fila metrica micro masculina: M3×0.5 / M5×0.8 / M6×1.0 |
|
01S/02S/03S/04S |
Stamina cerea imperialia R masculina: R1/8 / R1/4 / R3/8 / R1/2 |
|
-00 |
Aequalis diametro recta, tubo eadem magnitudine utrinque |
|
Digitorum duorum e.g. 06-08 |
Reducing rectum: tubus anterius diameter → tubum posticum diameter |
|
Item |
Parameter |
|
Applicable Medium |
Compressus aer, pressura vacua negativa |
|
Operans Pressura |
0~1.0MPa; Max vacuum: -95kPa |
|
Temperature operating |
-5℃ ~ +60℃ |
|
Corpus Material |
Auctus POM; Post: Nickel-patella aes |
|
Sigillum Material |
NBR Nitrile Purgamentum |
|
Compatible Tubing |
PU tube, PA nylon tube |
|
Operatio Methodi |
Sera inserere ; torcular release anulum ad desciscendum |

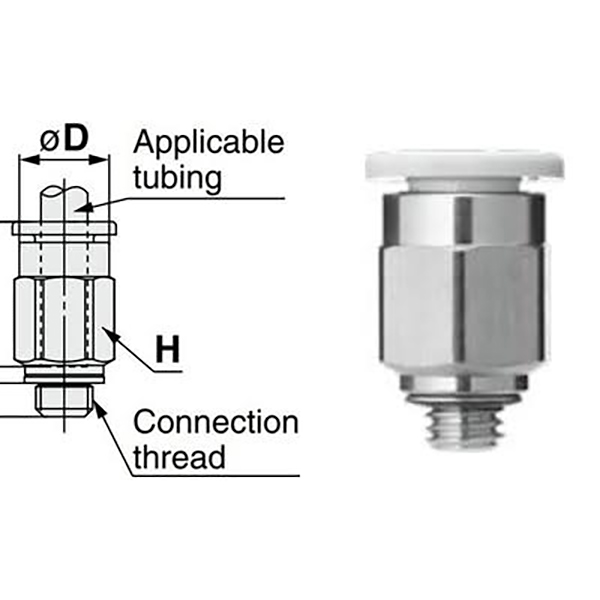

5.1 Male Thread cum Metric Micro Thread
|
Exemplar |
Thread |
Tubus ΦD |
|
KQ2H02-M3G |
M3×0.5 |
Φ2 |
|
KQ2H02-M5 |
M5×0.8 |
Φ2 |
|
KQ2H23-M3G |
M3×0.5 |
Φ3.2 |
|
KQ2H23-M5 |
M5×0.8 |
Φ3.2 |
|
KQ2H04-M3G |
M3×0.5 |
Φ4 |
|
KQ2H04-M5 |
M5×0.8 |
Φ4 |
|
KQ2H04-M6 |
M6×1.0 |
Φ4 |
|
KQ2H06-M5 |
M5×0.8 |
Φ6 |
|
KQ2H06-M6 |
M6×1.0 |
Φ6 |

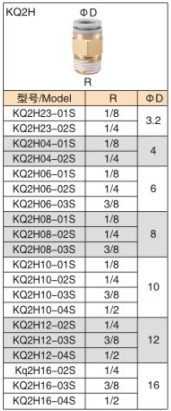

5.2 Male Thread cum Caesareo R Taper Thread
|
Exemplar |
Thread |
Tubus ΦD |
|
KQ2H23-01S |
R1/8 |
Φ3.2 |
|
KQ2H23-02S |
R1/4 |
Φ3.2 |
|
KQ2H04-01S |
R1/8 |
Φ4 |
|
KQ2H04-02S |
R1/4 |
Φ4 |
|
KQ2H06-01S |
R1/8 |
Φ6 |
|
KQ2H06-02S |
R1/4 |
Φ6 |
|
KQ2H06-03S |
R3/8 |
Φ6 |
|
KQ2H08-01S |
R1/8 |
Φ8 |
|
KQ2H08-02S |
R1/4 |
Φ8 |
|
KQ2H08-03S |
R3/8 |
Φ8 |
|
KQ2H10-01S |
R1/8 |
Φ10 |
|
KQ2H10-02S |
R1/4 |
Φ10 |
|
KQ2H10-03S |
R3/8 |
Φ10 |
|
KQ2H10-04S |
R1/2 |
Φ10 |
|
KQ2H12-02S |
R1/4 |
Φ12 |
|
KQ2H12-03S |
R3/8 |
Φ12 |
|
KQ2H12-04S |
R1/2 |
Φ12 |
|
KQ2H16-02S |
R1/4 |
Φ16 |
|
KQ2H16-03S |
R3/8 |
Φ16 |
|
KQ2H16-04S |
R1/2 |
Φ16 |
5.3 Aequalis Diameter Rectus -00 Series
|
Exemplar |
Tubus ΦD |
|
KQ2H02-00 |
Φ2 |
|
KQ2H23-00 |
Φ3.2 |
|
KQ2H04-00 |
Φ4 |
|
KQ2H06-00 |
Φ6 |
|
KQ2H08-00 |
Φ8 |
|
KQ2H10-00 |
Φ10 |
|
KQ2H12-00 |
Φ12 |
|
KQ2H16-00 |
Φ16 |
5.4 Reducing Recta series
|
Exemplar |
Tubus |
Tubus |
|
KQ2H02-23 |
Φ2 |
Φ3.2 |
|
KQ2H02-04 |
Φ2 |
Φ4 |
|
KQ2H23-04 |
Φ3.2 |
Φ4 |
|
KQ2H23-06 |
Φ3.2 |
Φ6 |
|
KQ2H04-06 |
Φ4 |
Φ6 |
|
KQ2H06-08 |
Φ6 |
Φ8 |
|
KQ2H08-10 |
Φ8 |
Φ10 |
|
KQ2H10-12 |
Φ10 |
Φ12 |
|
KQ2H12-16 |
Φ12 |
Φ16 |
•Copia aeris et adsorptionis limbis congruens ZH / BM / PBM / PBX vacuum generantibus
• Limbis pro cylindris micro et solenoideis valvulae in automation instrumento, institutionem in spatiis angustiis
• Ramus principalis aeris lineae, aequale-diametri tubi tibus iuncturam vel organum magnitudine transitionis
• Testa pneumatica tigna, ambitus robotici pneumatici
1 . Tubing interficiam plana sine lappa. Lappones scalpent anulos signantes et efficiunt aerem vel ultrices vacuum.
2. Tubing inserere donec sedet ad confligendum faucibus. Semper diurnum emissio anulum ante trahens fistulam e; never yank forcibly.
3. Commendatur pro PU/PA rigidum nylon Tubing. Murus tenuis PE caligarum mollis non suggeritur.
4. Adfirmare insertionem profunditatem sub condicione vacui operantes. Pro repetitis cyclis negativis pressionis, compara cum BPS cochleae ad caerimonias alternativae lectionis.
Oratio
