Brand: SOLH by Richge Technology | KQ2D Y-Type One-Tange Pneumatica Tee Fittings
 |
 |
 |
KQ2D series est Y ramus typus dis-aptabilis pertinens ad SOLH plenam KQ2 pneumaticam familiam convenientem. Instrumentum liberorum dis-ad-iungendi consilio adhibito, unum fontem aerem in duos circuitus parallelos aeris pro automatione systematis pneumaticis efficienter scindit.
Ordo structuralis: bifurcatis 1-in 2-eformibus Y informibus, tribus generibus in promptu: tubus diametri aequalis Y tee, imperialis tortus R stamen Y tee, et metricus tenuis M stamen Y tee.
Material & Compatibility: Summus fortitudo corporis PBT, immaculata ferro unguibus retinens, NBR nitrile Flexilis annulorum signatio. Compatiuntur cum tubulis polyurethanis PU et PA nylon tubis, duplice-proposito aeris compressi positivi pressionis et pressionis negativae vacuum tibiarum.

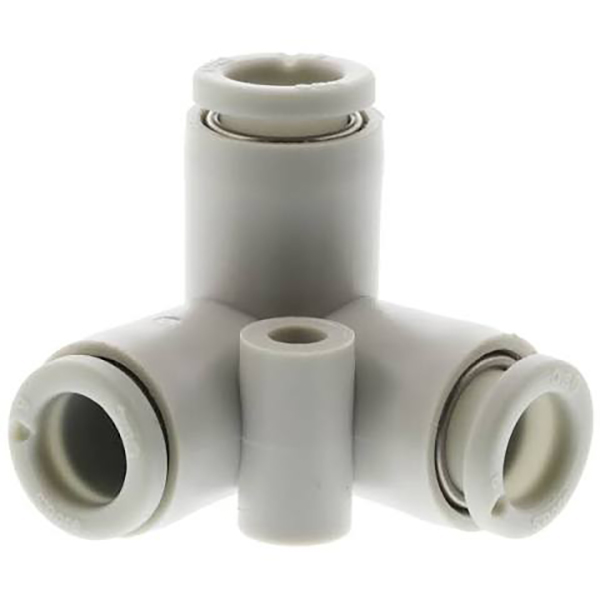

2.1 Aequalis diametro Y Tee (KQ2Dxx-00, Threadless III-modo eadem magnitudine)
Omnes tres portus identicum tubulum diametrum adoptant, designatio fila in librata 1-ad-2 distributionem aeris in systemata pipeline idem-speci.
|
Exemplar |
Tubus Diameter Exterior ΦD (mm) |
|
KQ2D04-00 |
4 |
|
KQ2D06-00 |
6 |
|
KQ2D08-00 |
8 |
|
KQ2D10-00 |
10 |
|
KQ2D12-00 |
12 |

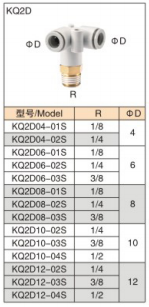

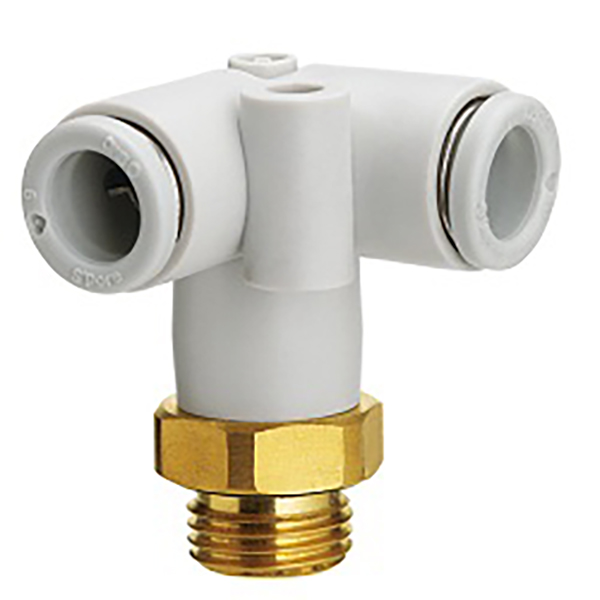

2.2 Imperial Taper Male Thread R Y Tee (Bottom Thread Inlet, Dual Tube Outlets)
Fundum imperiale R tortum linum masculinum pro fonte aeris inloti, vertice duo dis parallelis-in portubus ad nexum tubi, ad institutionem stamineam aptam et ad fontem aeris fixum ramosum.
|
Exemplar |
R Post Spec |
Tubus Diameter Exterior ΦD (mm) |
|
KQ2D04-01S |
R1/8 |
4 |
|
KQ2D04-02S |
R1/4 |
4 |
|
KQ2D06-01S |
R1/8 |
6 |
|
KQ2D06-02S |
R1/4 |
6 |
|
KQ2D06-03S |
R3/8 |
6 |
|
KQ2D08-01S |
R1/8 |
8 |
|
KQ2D08-02S |
R1/4 |
8 |
|
KQ2D08-03S |
R3/8 |
8 |
|
KQ2D10-02S |
R1/4 |
10 |
|
KQ2D10-03S |
R3/8 |
10 |
|
KQ2D10-04S |
R1/2 |
10 |
|
KQ2D12-02S |
R1/4 |
12 |
|
KQ2D12-03S |
R3/8 |
12 |
|
KQ2D12-04S |
R1/2 |
12 |

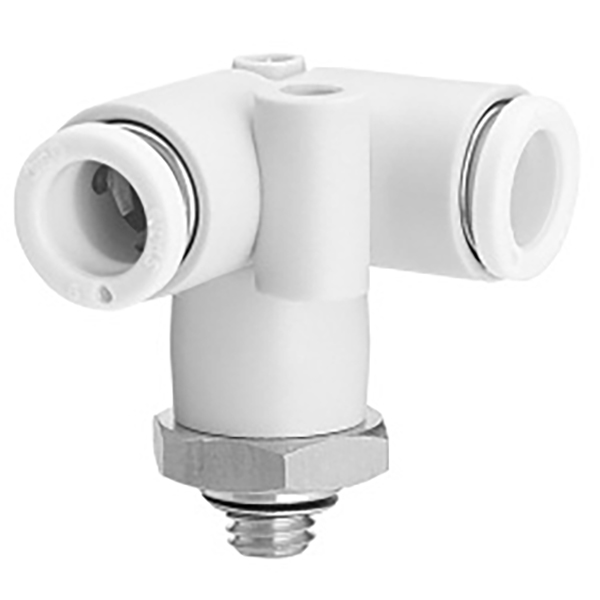

2.3 Metric Fine Male Thread M Y Tee (Bottom M Thread Inlet, Dual tube Outlets)
Ima praecisio metrica de filo masculino subtilissimo, structuram compactam pro minimo modulorum pneumaticorum et de parvo spatio automationis instrumenti limbis.
|
Exemplar |
Metrica Thread Spec |
Tubus Diameter Exterior ΦD (mm) |
|
KQ2D04-M5 |
M5×0.8 |
4 |
|
KQ2D04-M6 |
M6×1.0 |
4 |
|
KQ2D06-M5 |
M5×0.8 |
6 |
|
KQ2D06-M6 |
M6×1.0 |
6 |
|
Item |
Parameter |
|
Compatible Tubing |
PU tubus polyurethanus, PA nylon tubum pneumaticum |
|
Opus Impetus dolor |
Vacuum -100kPa ~ pressum positivum 1.0MPa |
|
Temperature operating |
0℃~ 60℃ |
|
Conventus & Disassembly |
Densis automatic densis post fistulam immissionem; Press album release anulum ad trahendum ex Tubing |
|
Core Material |
PBT corpus, unguibus ferro immaculatis, sigillum Flexilis NBR |
• 1-ad-2 fons aeris distributio pro linearum productione automated et circuitibus pneumaticis fixturis
• Cucurbitula suctionis dualis synchroneis aeris effectoris vacuum systematum finem robotici copiae
• Parallela pipeline illas duplices cylindrici synchronas operandi
• Foedus et bene servetur Tubing ad apparatum angustum pneumaticum excitandum
• KQ2D Y-Type Tee: Adop- tatur laevis bifurcationis Y informibus cum duabus decursibus parallelis. Lineamenta airflui inferioris turbulenta et pressionis minoris guttae praebent distributionem airfluentem magis aequabilem. Optimized ad angusta institutionis spatia et eiusdem lateris parallelae tubingae fusa, ad cyathos duplices synchronos suctionis et systemata duplicata cylindrica perfecte accommodata.
• KQ2T T-Type Tee: Ordo orthogonalis T informibus structura verticali lateralibus ramosis. Dispositio pro signo 90° verticali pipelineorum lateralium disposito, specimen machinae regularis layout et principale pipelines laterales missionum ramosarum.
• Electio consilium: EligeKQ2D pro spatiis angustis et tubinge parallelis ejusdem lateris dispersis; EligeKQ2T ad exitus pipelini lateralis verticalis et recti-anguli traditionalis extensionis ramosi.
