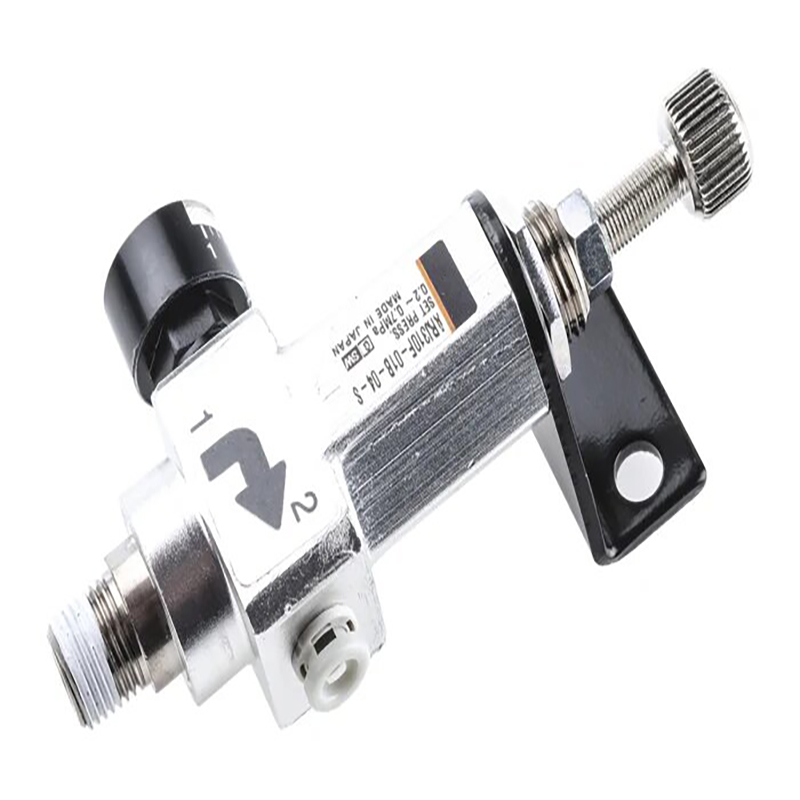

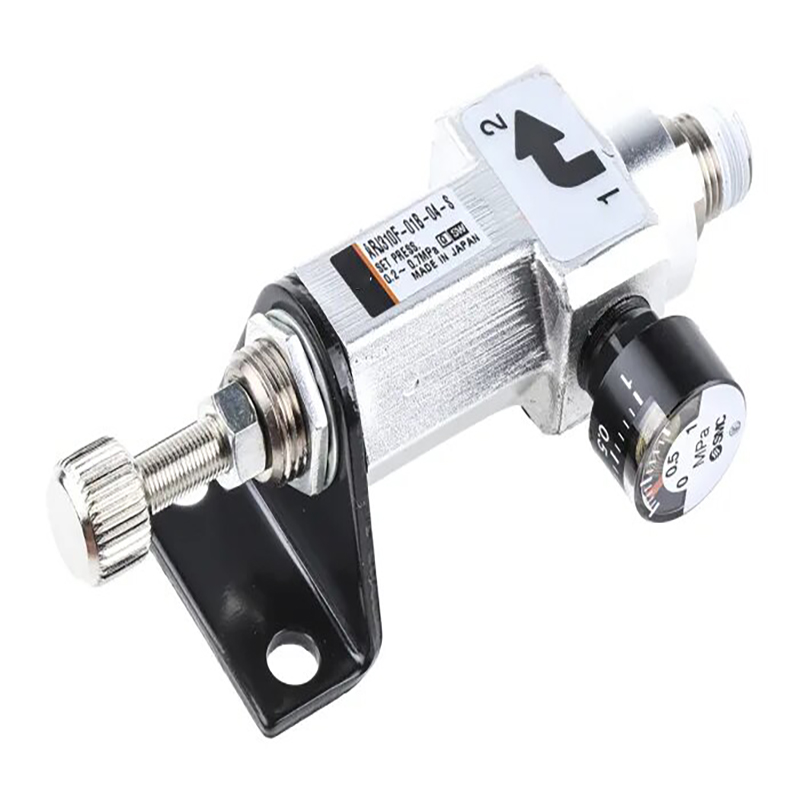

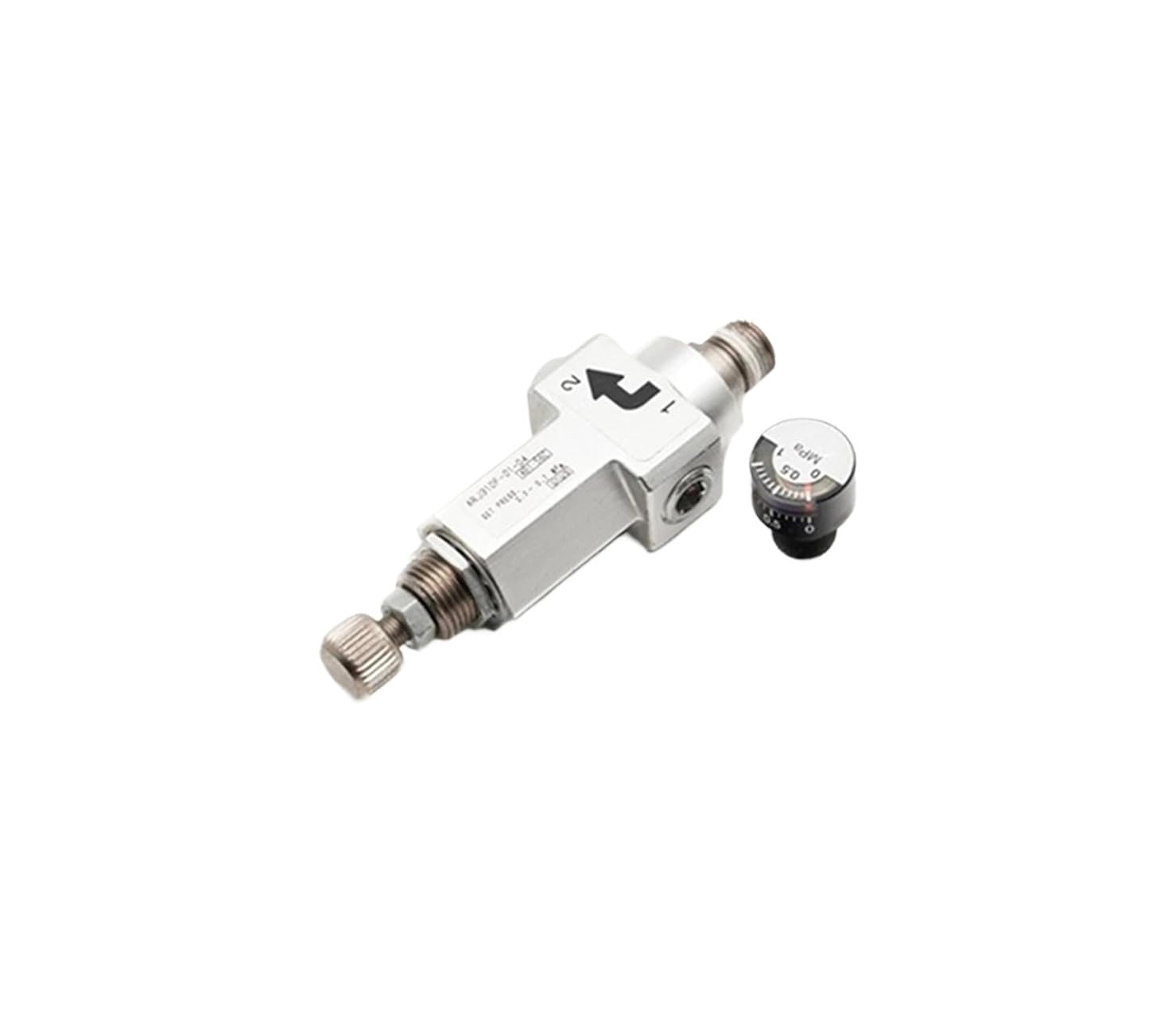

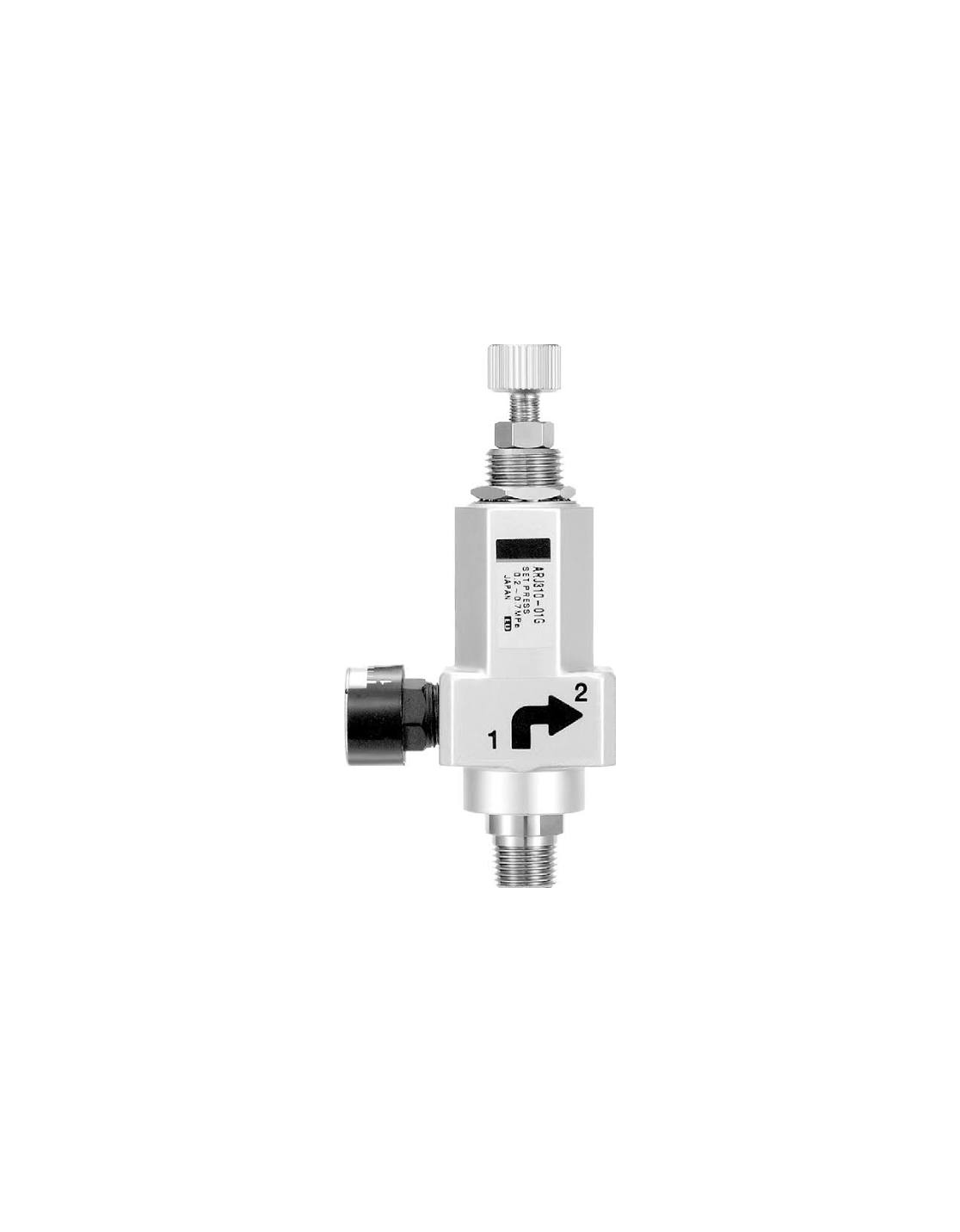

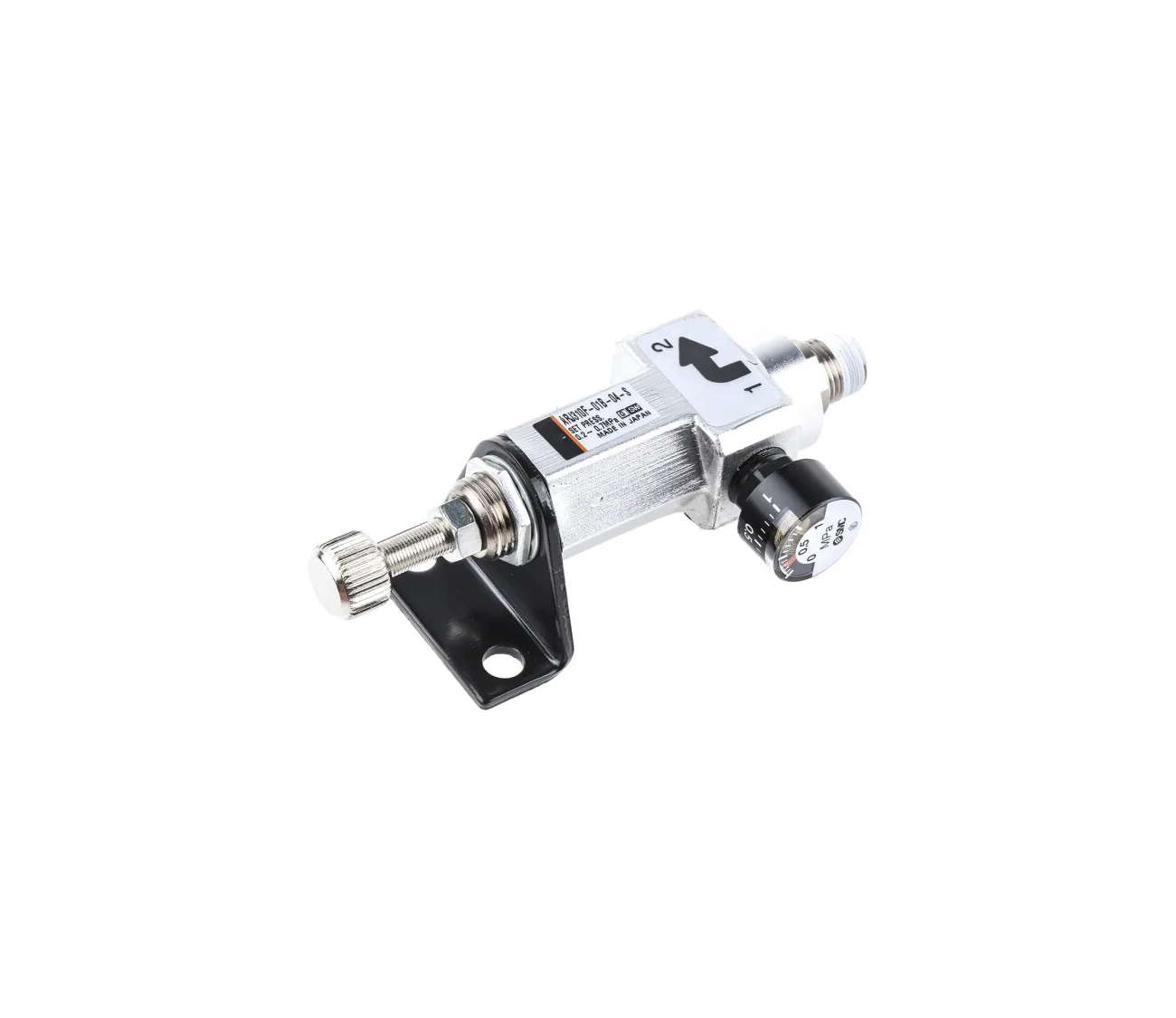

ARJ310 Series Miniaturae Pressure Regulator (Relevamen Direct Operated)

Notam:SOLH by Richge Technology (睿其格科技)

Product Overview

     SOLH ARJ310 series directa sollicitans levamen ultra-pactionis praecisionem pressionis moderatrix est ad spatia institutionis angusta et humilis-fluxus summus praecisio pressionis ditionis. Suprema eius dimensiones et effectus plene convertuntur cum SMC ARJ310 originalis regulatores pro instrumento directo substituendi.

Structure & Core functiones

     --Structure: Direct-agens piston genus cum constructum- in subsidio vent

     --Two-port layout (IN/OUT); excessus pressura automatice exhausta per internum subsidio channel

     --Function: Constanter demissio aeris pressionis ad output valorem preset, pressionem pressionis fluctuationis et praebendam subpressurae tutelam

     --Integrated design with one- touch dis-in outlet and dual libitum diverticulum staminum flexibilium wiring

Technical Specifications

     --Working Medium: Mundus & generalis industrialis compressus aer

     --Max Operating Pressura: 0,8 MPa

     --Proof Pressura: 1.2 MPa

     --Adjustable Pressura dolor

     --Standard range: 0.2-0.7 MPa

     -- Pressura versionis: 0.05-0.2 MPa

     --Ambient & Medium Temperature: -5℃~ +60℃ (nullum interna congelatio)

     -- Net Pondus: Approx. 65g

     -- Corpus Latitudo: 18.5 mm, densum multiplex positis

     --Protection Grade: IP65

Portus configurationis

Inlet Portus (Duo Styles Selectable)

     --M5×0.8 stamina interna

     --Rc1/8 externum stamen

Outlet Portus

     Rc1/8 femina stamina cum dis-in connectoriis integratis, compatibilis cum φ4/φ6 metrica Tubingae, 5/32" & 1/4" Tubingae imperialis

Gauge Portus

     Rc1/8 femina stamina mini pressionis congruit G15 series gauges

Exemplar Codicis Definition (Exemplum: ARJ310F-01-04)

     --ARJ310: Mini regulator basis seriei

     --F: Instructus structis in dis-congruis; omittitur plena versio staminea

     --01: Rc1/8 stamina vexillum

     --04: Pro φ4 Tubing; VI significat φ6 Tubing

     --N01: NPT1/8 optio stamina

Hot scelerisque exemplum

     --ARJ310-01: lina plena versio sine dis-in portum

     --ARJ310F-01-04: Integrated dis-in pro φ4 caligarum

     --ARJ310F-01-06: Integrated dis-in pro φ6 caligarum

     --ARJ310F-N01-03: NPT1/8 reticulum liciatum

Core Product Commoda

     --Ultra-parvum leve consilium: 65g pondus et 18.5mm corpus angustum valde compactum layout instrumentorum convenit

     --Dual diverticulum stamen optiones (M5 / Rc1/8) ad diversas limbis medullis adaptare

     --Factory constructum dis-in exitum excludit extra connexiones et breviora conventus tempore

     --Built-in relevium mechanism sponte dimisit overpressure ad firmum output pressura

     --Supports panel nut and external bracket dual scandere methodos

     --Direct-agens structuram dat humilis startup pressura usque ad 0.05 MPa

Typical Application missiones

     Mini cylindri aeris, minimae grippers pneumaticae, praecisio aeris flante nozzles Electronics conventus, machinae medicae, fabricatio semiconductoris et inspectio instrumenti fluidi dispensatores, instrumenti aeris lacus probati Foedus automationis machinae, valvae insulae et mini FRL iunctiones aeris tractandi.

Exemplar Comparison: ARJ310 VS ARJ210

Una sententia Summarium

     ARJ310 subsidio mini pressio moderatrix lineamenta corporis ultra-pactationis, limbum duplicatum, dis-in iungo integratum et subtilitatem altam, inserviens solutionem pressionis optimae solutionis systematum pneumaticorum humili-fluentis.
