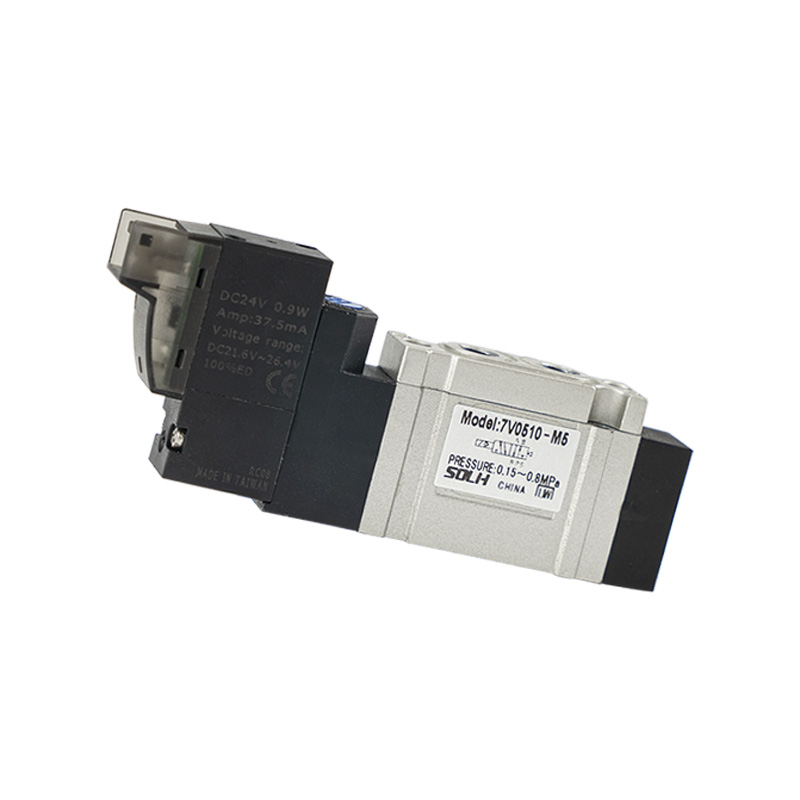

7V Series Foedus Nauclerus Operatus 5/2 & 5/3 Valvae Solenoides

Notam:SOLH by Richge Technology

Product Positioning

     SOLH 7V series compacta est gubernator valvae solenoidis directionalis operatae obtegentes functiones 5/2-via et 5/3-via, ad vexillum pneumaticum gyros generales specialiter destinati. Adoptans internum centralizatum exhaurit structuram cum alveo optimized fluere, mirabiliter tradit capacitatem fluentem amplam, responsionem mutandi ieiunium et consummationem virtutis humilis. Solo standalone adhiberi potest vel in valvae multiplices ripas congregari pro potestate plurium cylindrorum centralisedorum.

Core Structure & Functional Classification

 1. Portus & Position Function Definitio

   1.1  5/2 Viae Solenoidis Valve：1 diverticulum P, 2 portus operantes A/B, 2 portus R/S exhauriunt

     -- 10 suffix:

     -- 20 suffix: duplex coil duplex genus solenoideum latching

   1.2 5/3 Via Duplex Coil Solenoid Valvae (3 centri core functiones)

     - 30C Centrum Clausum: omnes portus plene signati in medio situ ad cylindrum claudendum pressionis ad clamping captionem

     - 30E Centre Exhaurire: A & B connexum exhaurire R/S dimittere residua pressura confidenter

     -- 30P Centrum Pressurae Supple: P utrique A et B connexis, pressionis aeris utrinque cylindrici conservato

  2. Coegi & structural Feature

     -- Coegi Type: Gubernator consilio operatus, satus pressus humilis, responsio ultra ieiunium et magna fluxus output

     -- Internum centralized exhaurit: Nauclerus aer defatigatus uniformiter per principales portas exhauriunt R/S, mundus et bene servetur limbus sine gubernatore disperso exhauriunt

Series Size & flow Parameter Tabula

General Specifications technica universalis

     -- Operans Impetus dolor: 0.15 ~ 0.8 MPa

     -- Probatur Test Pressura: 1.2 MPa

    -- Temperature operans: -20℃ ~ +70℃ (vico in aere non copia)

     -- Switching Response Time: ≤50 ms

     -- Max Operating Frequency: 5 Hz

     -- Coil Power Consumptio: DC = 0.7W; AC = 1.1VA

     -- Latin Options Voltage

        DC: 12V(F), 24V(B)

        AC: 110V(C), 220V(A)

     -- Praesidium Grade: IP40 pulvis resistens

     -- Corpus valvae Materialis: Aluminium die-cast mixturae

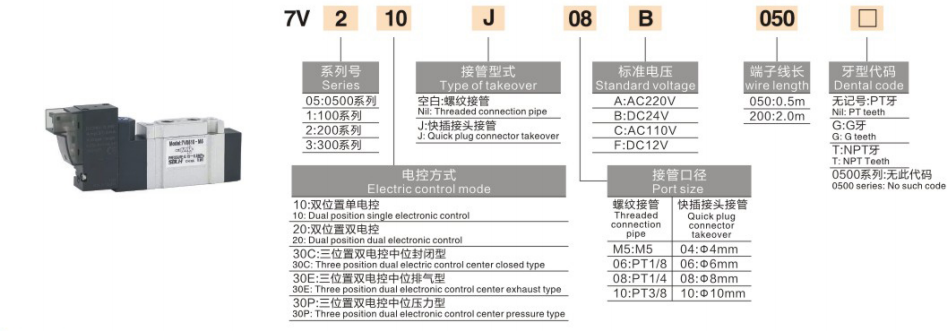

Nomen completum Model Regula

  1. Exemplum exemplar: 7V210J08B050

     -- 7V : Series code for gubernator operato 5/2 & 5/3 valvae solenoidei compactae

     -- 2: Size code (2 = 7V200 series, 1/4" port)

     -- 10/20/30C/30E/30P: Circuitus functionis

        10=5/2 angulus singularis; 20=5/2 duplex angulus; XXX seriei = 5/3 tribus, positione

     -- J: Portus connexionis forma; J = dis-in velox decet, blank = vexillum filo port

     -- 08: codicem Portus molem (08 = 1/4")

     -- B: Coil voltage code (B=DC24V, A=AC220V)

     -- 050: cable longitudo code (050 = 0,5 meter cable)

Common Standard Reference Models

  1. 5/2 Duo Positio Series

     -- Unius coil fons reditus: 7V110-06 (1/8", DC24V)

     -- Duplex coil latching: 7V220-08 (1/4", AC220V)

  2. 5/3 Tres Positiones Series

     -- Centrum pressionis clausae tenentes: 7V130C-06

     -- Centre exhaurit pressionem emissio: 7V230E-08

     -- Centre dual portum pressurized: 7V330P-10

Core Product Commoda

  1. Consectetur summus fluxus perficientur

     -- Optimized cursor internus streamline designatus, capacitas fluunt circa 30% aucta per valvulas solenoides seriei 4V traditae, citius cylindrici extensionem & celeritatem retractationem percipiens.

  2. Flexibile multi-directionem institutionem & portum dual optiones

     -- Sustinet ascendens horizontalem et verticalem; duos modos connexionis: vexillum linum portum vel impulsum velox ad conventum Tubingae festinanter aptans.

  3. Multiplex integratio modularis design

     -- Compatible cum multi- statione valvae multiformis basis, valvulae multiplices in unum congestae ad conservandum arcae spatium installationis et aerem limbum principale simpliciorem.

  4. ultra-humilis potentia coil

     - Minimum wattage coil consilium reducit calorem generationis, apta ad diuturnum tempus continua operando condiciones cum industria inferiori consummatio.

  5. Ultra-longum servitium rest

     -- Subtilitas interna FUSUS et structura obsignandi, stabilis effectus usque ad milliones cyclorum mutandi cum minima conservatione.

Una sententia Summarium

     SOLH 7V valvae solenoidei compactae gubernatori opertae plenae 5/2 unius/duplicis coilarum et 5/3 trium centri functionis variantes cum M5~3/8" magnitudinum portuum integram, 30% altiorem influxum quam 4V seriem conventionalem, vis humilis consummatio et consilium acervum multiplex sicut valvula directionalis universalis pro omnibus circuitibus pneumaticis vexillum automatum.
