3V Series 3/2 Via Pneumatica Solenoid Valve | Direct & Nauclerus Operated NC/NO Control Valve

Brand: SOLH by Richge Technology

1. Product Overview & Structural Interface

     SOLH 3V series vexillum est3/2 modo electrically regitur valvae directionalis solenoidei praesto indirectum-agens etgubernator, operated structurae. Specialiter designata ad imperium cylindri unius agentis, circa pneumaticum ambitum mutandi et systematis vacuum ordinandum, duas figuras nucleorum praebet: Communiter Clausa (NC) et Communiter Aperta (NO). Cum aluminii mixtura durabile corpus, compages compacta, responsio celeris et satus nulla pressura libitum, norma universalis valvae ditionis est pro minima systemata pneumatica automationis.

  1.1 Via Portus Definition

     • P Port: Praecipua aeris diverticulum

     • Portus: Portus operans, cylindros pneumaticos vel vacuos nozzles uno-agendo annexos

     • R Port: Aeris exhauriunt portum, vellera install pro strepitu reductionis

  1.2 Coegi & Structural Classification

     • Coegi Modus: Electro-agens directa / gubernator-operatus ad libitum

     • Series Type: direct-agendo (3V1/3V2); Gubernator-operatus (3V100/3V200/3V300)

     • Corpus Material: Aluminium vi alvum, leve et durabile

2. Opus principium 3/2 Way Valve

     Series 3V unius-coilum designationis moderationis adoptat, in NC et NO species divisa cum logica omnino independens operando, late pro cylindro reset automatico adhibito et in gyro vacui potestate.

  2.1 Communiter Propinquus (NC) - Most Communis Type

  Lorem exemplum: 3V110, 3V210, 3V310

     • Power-off Reddere rem publicamVer reset signat P inlet portum; Portus A communicat cum Port R pro exhauriunt, nulla pressura output.

     • Power-on Opus rei publicaeElectromagnetica vis trahit cori valvae ad mutandum; P diverticulum connectit cum A portu operando pro aeris copia; Portus exhaurit r plenius clauditur.

  2.2 Communiter Open (n) Type

  Lorem exemplum: 3V120, 3V220, 3V320

     • Power-off Reddere rem publicam: P diverticulum communicat cum A portu operante ad continuum aeris copiam; Portus exhaurit r clauditur.

     • Power-on Opus rei publicae: P inletum portum signatus est; Portus operarius communicat cum R, portum pro subsidio pressionis et exhaurit.

3. Series Classification & Specification Parameters

  3.1 Direct-Agens Series (3V1 / 3V2) - Nulla Pressura Satus

  Core Commodum: 0MPa nulla-pressionis satus subsidia, ultra ieiunium celeritas responsionis (＜0.05s), stabilis effectus pro low-presse et vacuo operantes conditiones.

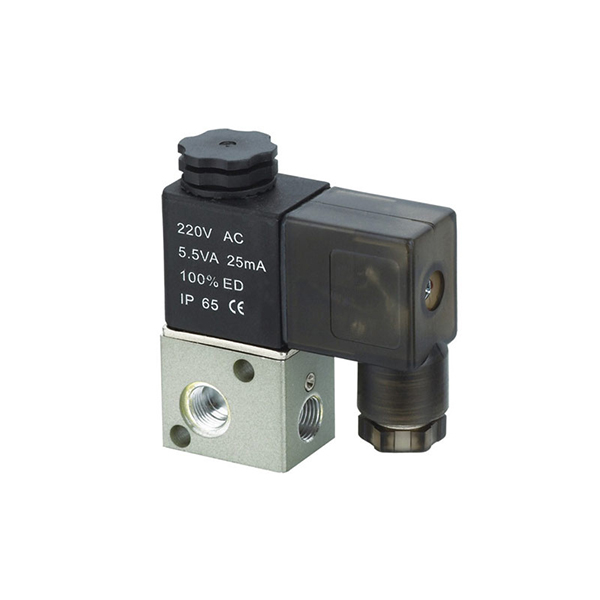

  • 3V1 Micro Series

￮ Port Size: M5, G1/8 (06)

￮ Area: 10.2 mm² (CV=0.6)

￮ Exemplar typicum: 3V1-06, 3V1-M5

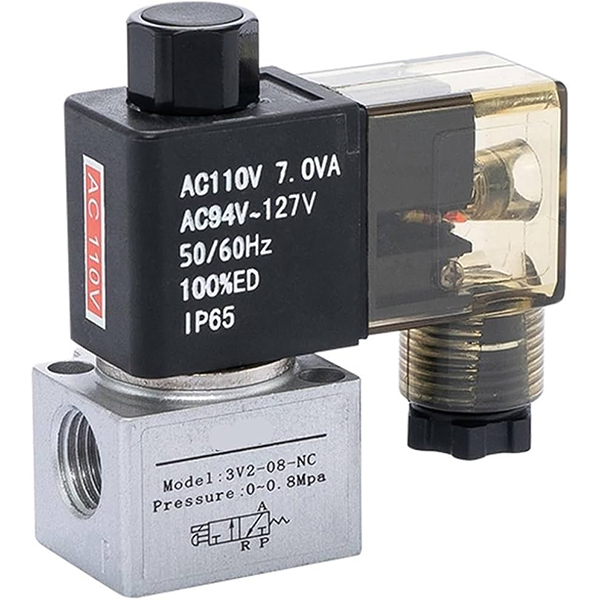

  • 3V2 Mini Series

￮ Port Size: G1/8 (06), G1/4 (08)

￮ Area: 17.0 mm² (CV=1.0)

  3.2 Gubernator-Operatus Series (3V100 / 3V200 /3V300) - Flumen Magnum

  Core Commodum: Magnae fluunt capacitatis et humilis potentiae consummatio; minimam pressionem startup ad commutationes stabiliendas, aptas ad pressionum pneumaticorum gyrorum vexillum.

  • 3V100 Series: Portus mole M5, G1/8 (06)

  • 3V200 Universal Series

￮ Port Size: G1/4 (08)

￮ Area: 17.0 mm² (CV=1.0)

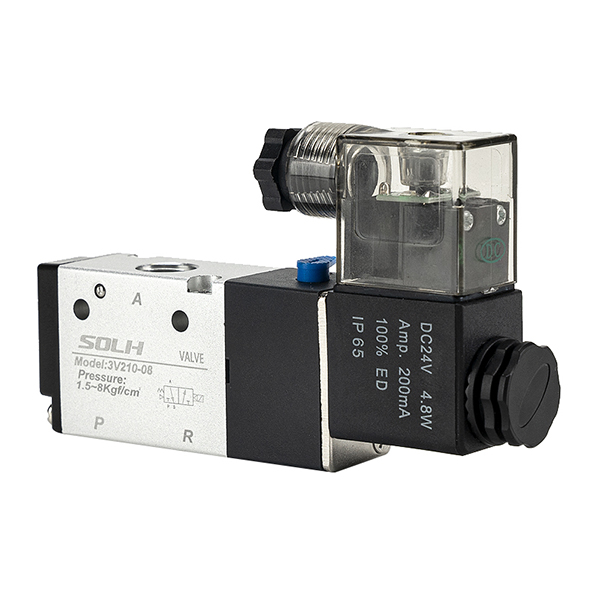

￮ Typical Model: 3V210-08

  • 3V300 Large flow Series

￮ Port Size: G3/8 (10).

￮ Area: 28.0 mm² (CV=1.65)

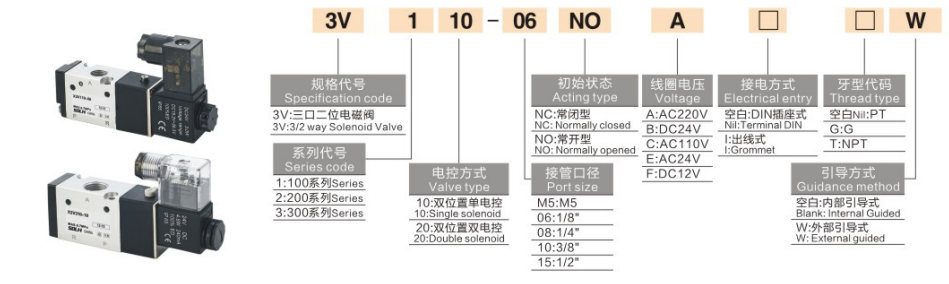

4. Exemplar Exemplar Complete Coding Rules & Ordinis Exempla

  1. Coding Logica: 3v [Series Code] [Function Code] - [Port Size] [Voltage Code] [Wiring Code]

 2. Exempla Latin

     • 3V210-08-B: 3/2 via, NC genus, G1/4 portum, DC24V, DIN nervum nexus

     • 3V1-06-A: 3/2 via, NC type, G1/8 port, AC220V

5. Caput Technical Parameters

6. Core Product Commoda

     • Dedicated 3/2 Way Design: Omnino pares cum cylindris simplicibus-reversis agendis, exclusivo ad clampationem, jacking et rete pneumaticum executionem.

     • Dual Modi Operationis: Libitum Normaliter Clausum (potestatem-off reset) et Communiter Aperi (potestatem-off laborandi) genera ad diversos processus logicos accommodandos.

     • Dual Coegi Options: Direct-agens genus subsidia nulla pressura startup ad vacuum/low-pressionem missiones; gubernator-operatus genus cognoscit magnum fluxum et humilem operationem stabilem potentiae.

     • Foedus & Dura: mini integrata structura, excellentia obsignatio perficiendi, longi muneris vitae et lubricationis liberorum consiliorum.

     • Flexibile configurationis Electrical: Multiplices intentiones specificae (AC220V/110V/24V, DC24V/12V) et duplices wiring modos congruentes globalis exigentiis occurrentes.

     • Princeps Compatibility: eandem institutionem magnitudine ac 3A valvularum pneumaticorum potestate et 3L valvulae manu trahere, sustentans directam substitutionem et upgrade.

7. Typical Application missiones

     • Automatic imperium cylindrorum simplicium agendi (clamptura, jacking, fons mechanism reset)

     • Vacuum generans et vacuum suctus systematis COLLUM mutandi

     • Circuitus pneumaticus de potestate, instrumento securitatis interlock, parva actus quatii operandi

     • Recta substitutio 3A valvulae aereae continentes et 3L valvulae manu operatae in systemata pneumatica norma

Una sententia Summarium

     SolH 3V series vexillum est 3/2 modo valvae directionalis electromagneticae cum NC/NO modos duplices et directo/gubernatori duplices structuras coegi, professionali applicata ad cylindrum unum agente et circa imperium vacuum, ut nucleus temperantiae componentis ad minima systemata pneumatica automationis applicata.
